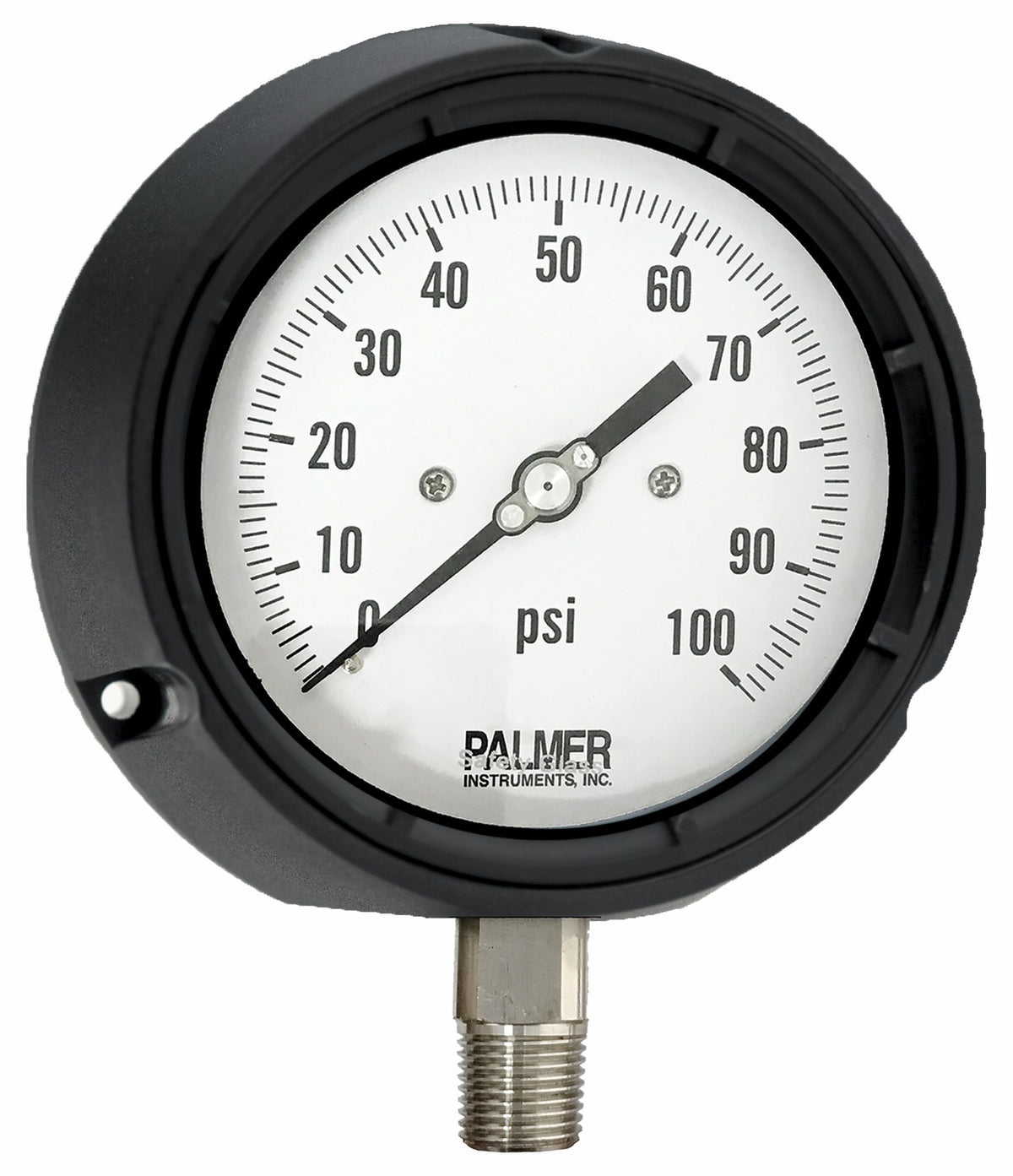

Palmer Wahl TS_Series | Solid Front Process Gauge, Blow-Out Back | 4.5 in, to 60,000 psi
Part Number : TS_Series

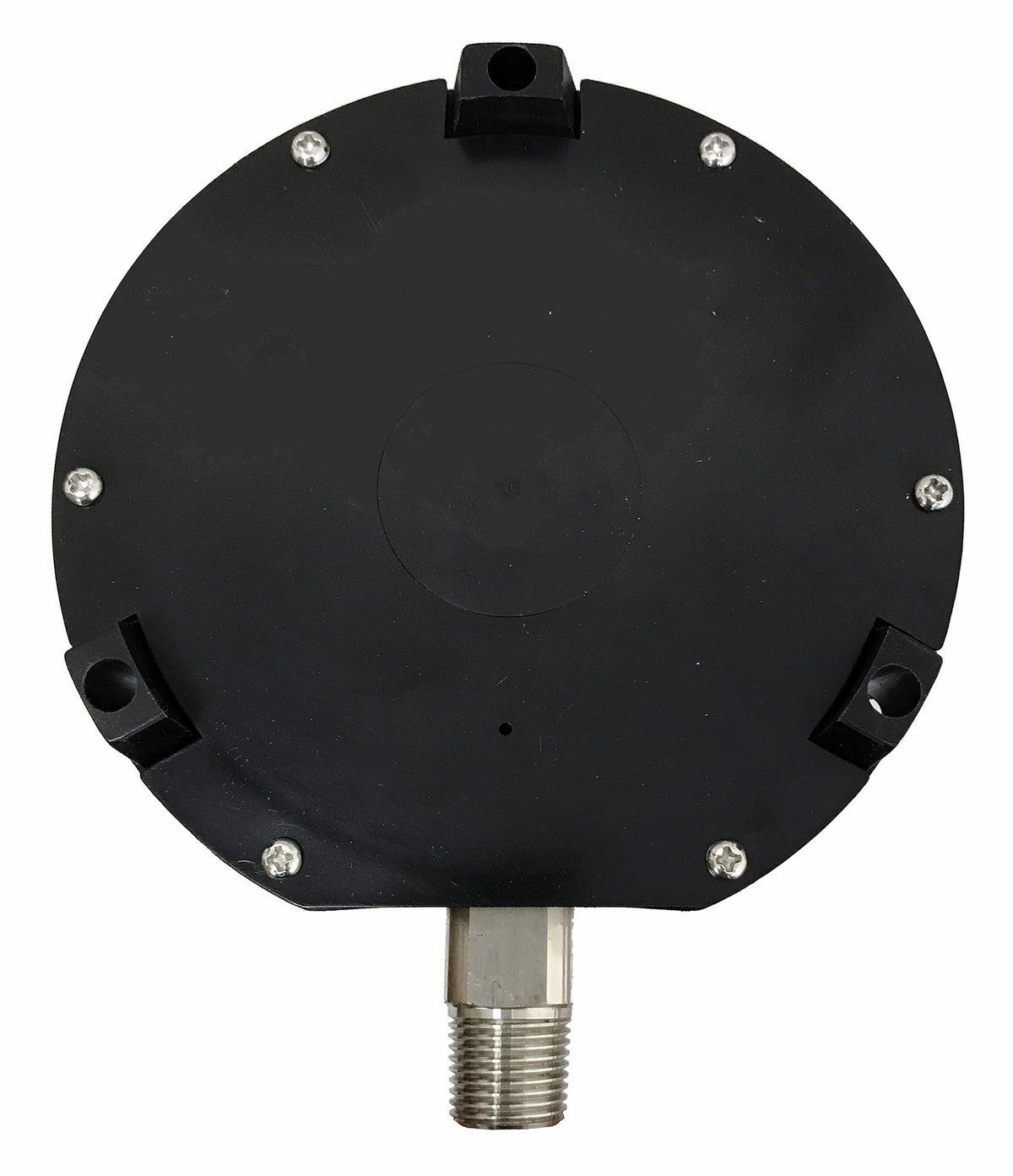

The Palmer Wahl TS_Series is a 4.5 in (125 mm) solid front process gauge designed for the safety of personnel reading it. A solid barrier separates the sensing element from the dial front, and if a failure occurs the blow-out back releases pressure, fluid or particles through the rear of the case. The 316 stainless socket is TIG welded to the elastic element for strength.
Key features
- Fibreglass-reinforced phenolic case, polycarbonate ring, IP65
- Laminated safety glass window, tempered glass optional
- 316 stainless C-tube below 1,000 psi, spiral tube above
- Accuracy ±0.5% dry, ±1.0% wet, ±1.6% at 50,000 and 60,000 psi
- Micrometer adjustable pointer
- Autoclave fitting required from 30,000 psi
Glycerin or silicone filled instruments should not be used with highly oxidising agents such as oxygen, chlorine, nitric acid or hydrogen peroxide; Palmer Wahl recommends fluorinated fluid for these media.
For pricing, please contact our experts.
