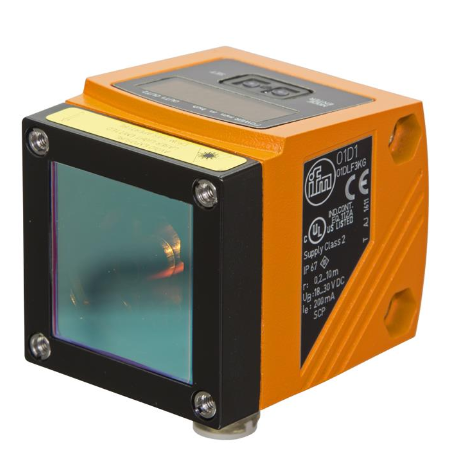

Optical level sensor ifm electronic O1D300 - O1DLF3KG
The O1D300 - O1DLF3KG/IO-LINK laser distance sensor from ifm electronic has a range of 0.2-10 m and is designed for optical level measurement. Two programmable switching outputs are available, whereby the second output can also alternatively be used as an analogue output for distance measurement. The visible laser light allows for easy alignment. The distance to the object is easily readable on the 4-digit alphanumeric display with the O1D300 laser distance sensor. Due to the robust and compact metal housing, the high protection rating IP67, the laser distance sensor O1D300 with M12 connector is ideally suited for use in harsh industrial environments.
- Specifications
- Features
- Downloads
| Ambient temperature | -10 °C to 60 °C |
| Current consumption [mA] | <150 |
| Electrical design | PNP |
| Operating voltage [V] | 18-30 DC V |
| Output function | normally open / closed; (programmable) |
| Overload protection | yes |
| Protection class | III |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
- Reliable optical level measurement with high ranges up to 9.8 m
- Scalable measuring range and window function
- Two switching outputs, one of them programmable as analog output
- Wide range of components for quick mounting and precise fine adjustment
- Excellent price/performance ratio
