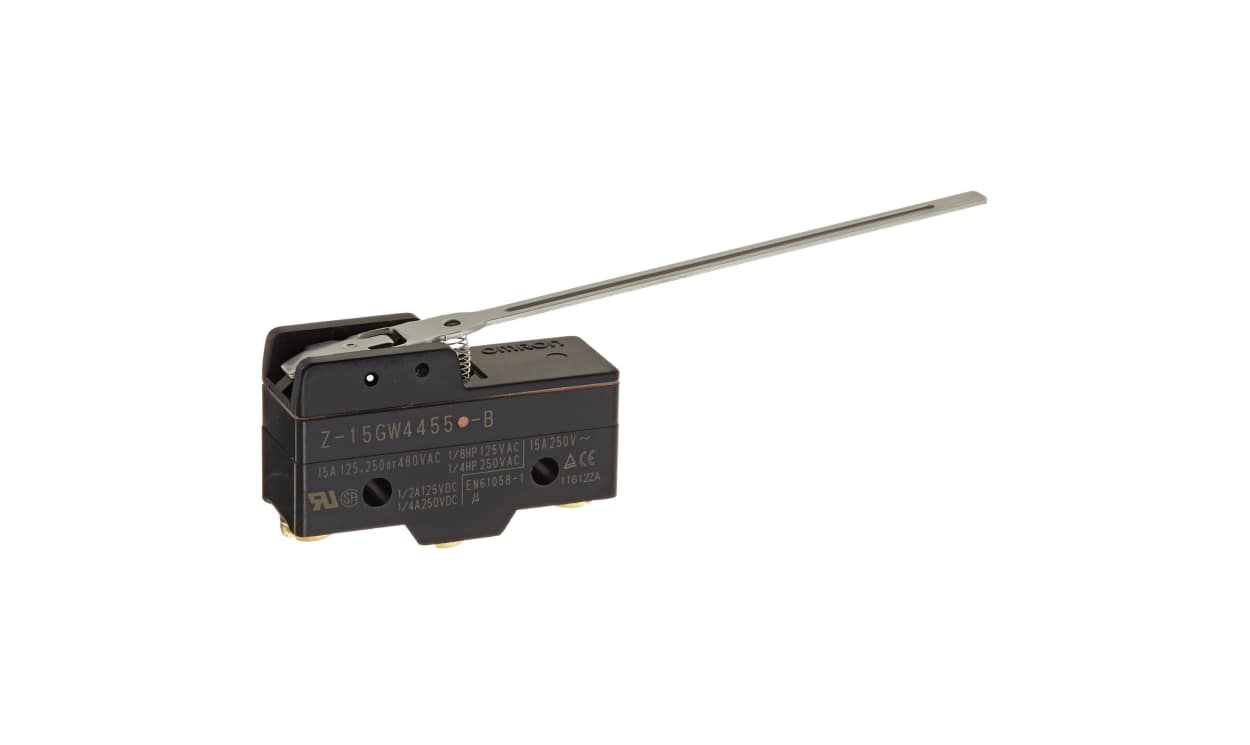

OMRON Z-15GW4455-B | Long Hinge Lever Limit Switch | SPDT, 15 A, IP62
With its long hinge lever actuator and SPDT contact, the OMRON Z-15GW4455-B is a Z series limit switch using snap action. Listed ratings for the Z-15GW4455-B are an IP62 rating, a 15 A maximum current and a 500 V AC maximum voltage.
- Maximum voltage: 500 V AC / 250 V DC
- Dimensions: 49.5 x 33 x 17.45 mm (L x W x D)
- Operating temperature: -25 to +80 °C
- Operating force: 0.88 N
- Mechanical life: 20,000,000 operations
- Standards listed: CCC, CE, CSA, UL
- Detailed Description
- Specifications
- Downloads
Omron Series Z Limit Switch, 15A Maximum Current - Z-15GW4455-B
Features & Benefits
• High voltage compatibility supporting up to 500V AC
• Snap action mechanism enhances operational efficiency
• IP62 rating safeguards against dust and moisture ingress
• Extended mechanical lifespan promotes durability and reduces maintenance
• Low operating force of 0.88N allows for easy actuation
Applications
• Used in automated machinery for safety functions
• Utilised in electronic assembly lines for object detection
• Implemented in material handling systems for limit control
How do I install the switch in my machinery?
Is it compatible with various types of control systems?
What factors should I consider for placement?
| Brand | Omron |
| Series | Z |
| Actuator Type | Long Hinge Lever |
| IP Rating | IP62 |
| Pole and Throw Configuration | SPDT |
| Maximum Current | 15A |
| Maximum AC Voltage | 500V |
| Action Type | Snap Action |
| Length | 49.5 mm (1.95 in) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Width | 33 mm (1.30 in) |
| Depth | 17.45 mm (0.687 in) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Mechanical Life | 20000000Operations |
| Maximum DC Voltage | 250V |
| Standards Met | CCC, CE, CSA, UL |
| Operating Force | 0.88 N |
