Omron Z-15GW2-B7-K, Roller Lever Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max

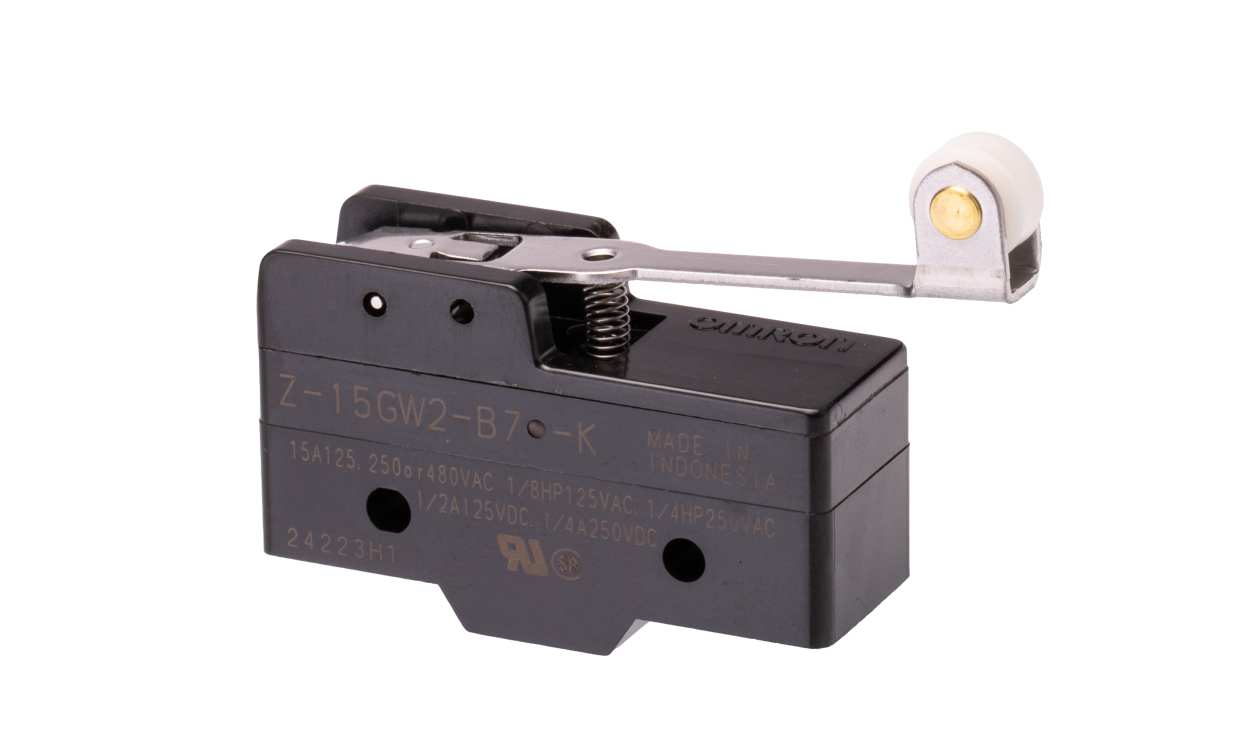

Name: Omron Z-15GW2-B7-K, Roller Lever Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max
Brand: OMRON
SKU: Z-15GW2-B7-K
Availability: OutOfStock

Part Number : Z-15GW2-B7-K

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Limit Switch, NO/NC Normal State Configuration, 15A Maximum Current - Z-15GW2-B7-K

This limit switch is designed for precision and reliability in industrial and commercial applications. It features a roller lever actuator style that ensures smooth operation and high durability. With a robust thermosetting resin construction, it is suitable for tasks that require high current handling and durability. This switch efficiently supports automation and control systems, ensuring functional continuity.

Features & Benefits

• Maximum current rating of 15A for effective performance
• Snap action mechanism enhances responsiveness
• Wide temperature operation range of -25°C to +80°C for versatility
• Mechanical life of 20 million operations for extended use
• SPDT configuration allows for flexible wiring options

Applications

• Used in conveyor systems for position feedback
• Suitable for machinery that requires precise limit detection
• Utilised in control circuits for accurate equipment management
• Applicable in robotics for motion detection and control

How does the roller lever design benefit operation?

The roller lever facilitates easy actuation and increases precision in limit detection, making it well-suited for applications where consistent feedback is essential.

Can this switch used in a damp or dusty environment?

Yes, the switch has an IP63 protection rating, which means it is resistant to dust and water spray, making it suitable for use in industrial environments.

How do I mount it correctly?

Mounting requires M4 screws, tightened to a torque of 12 to 15 kg-cm ensure stable positioning for optimal performance.

Brand	Omron
Actuator Type	Roller Lever
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP00
Maximum Current	15A
Housing Material	Thermosetting Resin
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Action Type	Snap Action
Length	49.2mm
Minimum Operating Temperature	-25°C
Depth	17.45mm
Width	29.4mm
Maximum Operating Temperature	+80°C
Mechanical Life	20000000Operations

Omron Z-15GW2-B7-K, Roller Lever Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max

DOWNLOAD CATALOG

Z-15GW2-B7-K Z-Series Basic Switches Datasheet 0900766b8160dd6b
