Omron Z-15GQ-B7-K, Z Series Plunger Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max

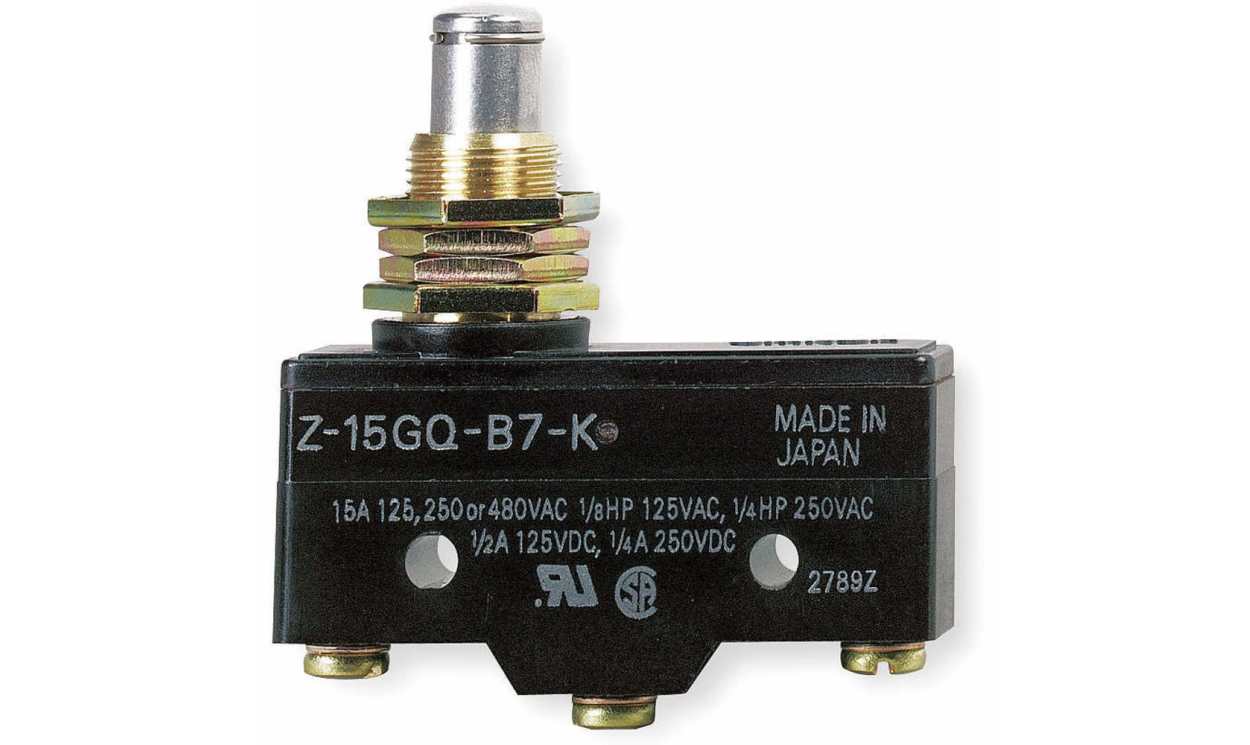

Name: Omron Z-15GQ-B7-K, Z Series Plunger Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max
Brand: OMRON
SKU: Z-15GQ-B7-K
Availability: OutOfStock

Part Number : Z-15GQ-B7-K

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Series Z Limit Switch, NO/NC Normal State Configuration, 15A Maximum Current - Z-15GQ-B7-K

This limit switch plays a crucial role in automation and control systems by providing accurate positioning and feedback. Known for its durable design and consistent performance, it is ideal for various industrial applications where effective functionality is important. The plunger actuator design ensures reliable activation, making it a key component for protecting machinery and enhancing operational efficiency.

Features & Benefits

• Mechanical life of 20 million operations for extended use
• Compact size allows for installation in confined spaces
• Snap action mechanism ensures rapid response times
• Configurable to NO/NC states for flexible Applications
• Operates at high currents up to 15A for various settings

Applications

• Used for position detection in automation equipment
• Commonly found in conveyor systems for safety protocols
• Appropriate for motor control and robotic
• Integrated into packaging machinery for improved efficiency
• Employed in assembly lines for quality control measures

What is the maximum operating temperature for this device?

The device can function at temperatures up to +80°C, ensuring consistent performance across different conditions.

Is this compatible with both AC and DC applications?

Yes, it can accommodate a maximum AC voltage of 500V and DC voltage of 250V, making it suitable for diverse electrical systems.

How can I adjust the force needed for activation?

The operating force varies from 2.45N to 3.43N, allowing for calibration based on specific application needs.

What type of materials is it made from?

The housing is made from thermosetting resin, contributing to its durability in industrial environments.

Brand	Omron
Actuator Type	Plunger
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP00
Maximum Current	15A
Housing Material	Thermosetting Resin
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Series	Z
Action Type	Snap Action
Length	49.2mm
Minimum Operating Temperature	-25°C
Standards Met	CCC, CE, CSA, UL
Width	25.5mm
Depth	17.45mm
Maximum Operating Temperature	+80°C
Operating Force	2.45 → 3.43 N
Mechanical Life	20000000Operations

Omron Z-15GQ-B7-K, Z Series Plunger Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max

DOWNLOAD CATALOG

Z-15GQ-B7-K Z-Series Basic Switches Datasheet 0900766b8160dd6b
