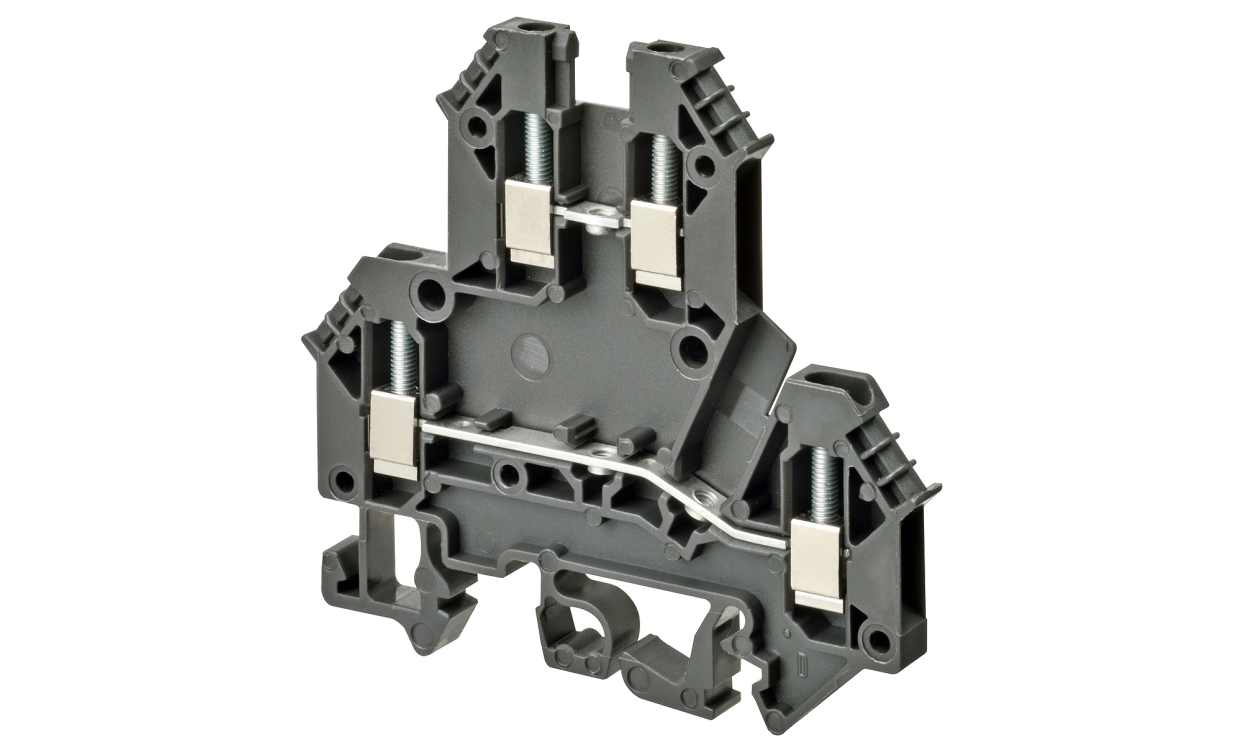

Omron XW5TS25112, XW5T Series Grey, 2.5mm², Double-Level, Screw Termination

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron XW5TS25112, XW5T Series Grey, 2.5mm², Double-Level, Screw Termination

Name: Omron XW5TS25112, XW5T Series Grey, 2.5mm², Double-Level, Screw Termination
Brand: OMRON
SKU: XW5TS25112
Availability: OutOfStock

Part Number : XW5TS25112

Availability: Sold out

Detailed Description
Specifications
Downloads

DIN Rail Screw Terminal- XW5T-S & XW5G-S Series

DIN Rail grounding terminal blocks are a great solution for space saving and downsizing in control panels, due to their compact size of 3.5 mm width. The XW5G series terminal blocks are easy to install and wires are held firmly and securely in place.

Features and Benefits

• Slim 3.5 mm width
• Wires held with screws
• Light insertion force and strong holding strength for less wiring work and high reliability
• Hands-free structure that holds an inserted screwdriver to achieve easier wiring in comparison to attaching crimp terminals
• 1 or 2 tier models available

DIN Rail Terminal Blocks

Brand	Omron
Colour	Grey
Number of Levels	Double
Series	XW5T
Voltage Rating	600 V
American Wire Gauge	20 → 14AWG
Termination Method	Screw
Cable CSA	2.5mm²
Current Rating	20 (UL) A, 24 (IEC) A
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+55°C
