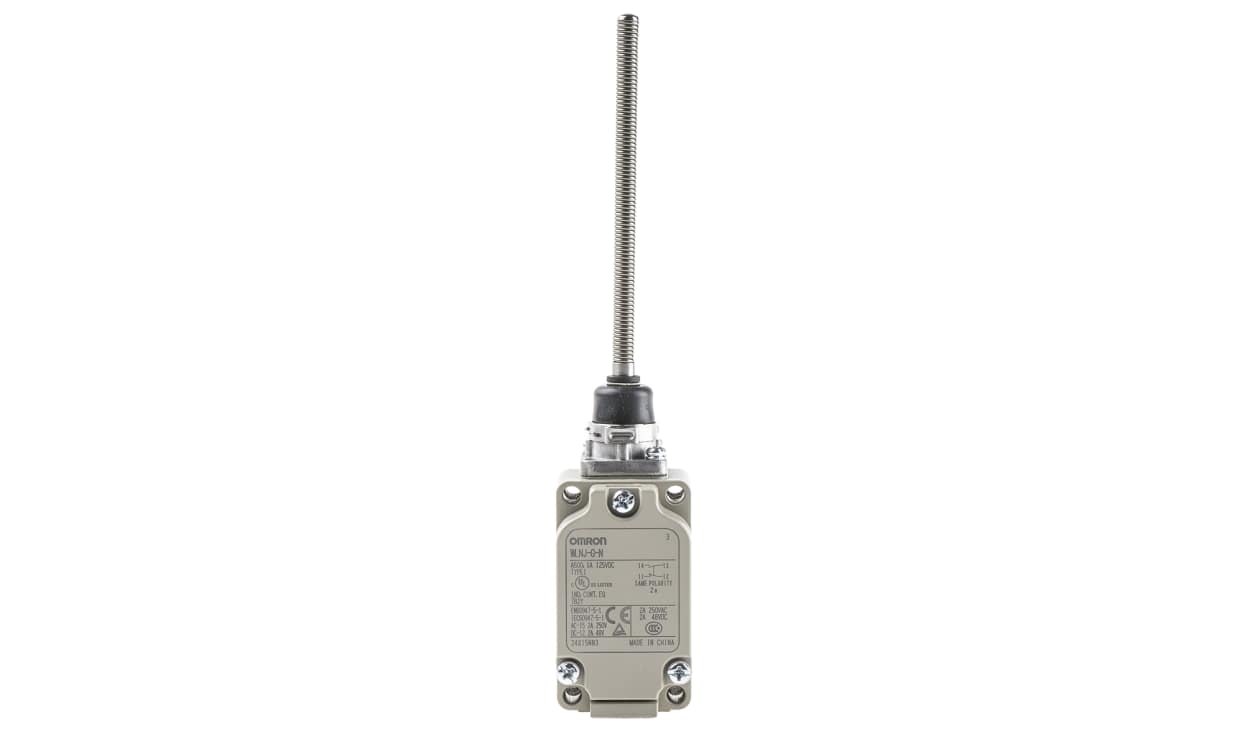

Omron WLNJ-G-N, WL Series Coil Spring Limit Switch, NO/NC, IP67, SPST, 500V ac Max, 10A Max

Name: Omron WLNJ-G-N, WL Series Coil Spring Limit Switch, NO/NC, IP67, SPST, 500V ac Max, 10A Max
Brand: OMRON
SKU: WLNJ-G-N
Availability: OutOfStock

Part Number : WLNJ-G-N

Limit switch, Flexible rod, pretravel 20Â±10 mm, DPDB, G1/2 with ground terminal

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

WL Series General Purpose Limit Switch

Oil-tight, waterproof and dustproof cast aluminium body construction to IP67
Two sets of snap action contacts: N/C and N/O
Contact rating: 10A (I_th250Vac) max. 600ac, 250Vdc
Four position turret head
Operating temperature range: - 10° to +80°C
Set position indicator plate for easy maintenance
Conduit entry PG13.5

Approvals

UL, CSA

OMRON Limit Switch, 203.7 (D) x 42 (W) x 40mm (L), PG13.5 Connection Type - WL Series - WLNJ-G-N

To tell your machinery what to do when, pick this limit switch by OMRON. It recognises when moving objects make contact with its actuator, then operates the contacts to make or break an electrical circuit, based on your pre-defined settings. The unit has an IP67 rating, meaning it offers complete protection against dust ingress and airborne particles, so it's a smart choice for contaminated settings like food production facilities. As it can also withstand immersion in up to one metre of water, it shrugs off damage caused by washdowns.

Features & Benefits

• Wide operating temperature between -10°C and +85°C means it can withstand demanding industrial environments
• Compact dimensions of 203.7 (D) x 42 (W) x 40mm (L) saves space in a busy setup
• Snap limit switch type means it can rapidly change the direction of power between two devices

Applications

• Production lines
• Welding robots
• Conveyor systems
• Hydraulic cylinders

How long will this unit last?

Thanks to a minimum service life of 10 million operations, you can count on this limit switch to stay the course in a fast-paced industrial setup.

Brand	Omron
Actuator Type	Coil Spring
Pole and Throw Configuration	SPST
Normal State Configuration	NO/NC
IP Rating	IP67
Maximum Current	10A
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Connection Type	PG13.5
Series	WL
Action Type	Snap Action
Length	40mm
Maximum Operating Temperature	+85°C
Standards Met	CE
Minimum Operating Temperature	-10°C
Depth	203.7mm
Width	42mm
Mounting Orientation	Back, Front
Operating Force	1.47 N
Mechanical Life	15000000Operations

Limit switch, Flexible rod, pretravel 20±10 mm, DPDB, G1/2 with ground terminal

Omron WLNJ-G-N, WL Series Coil Spring Limit Switch, NO/NC, IP67, SPST, 500V ac Max, 10A Max
