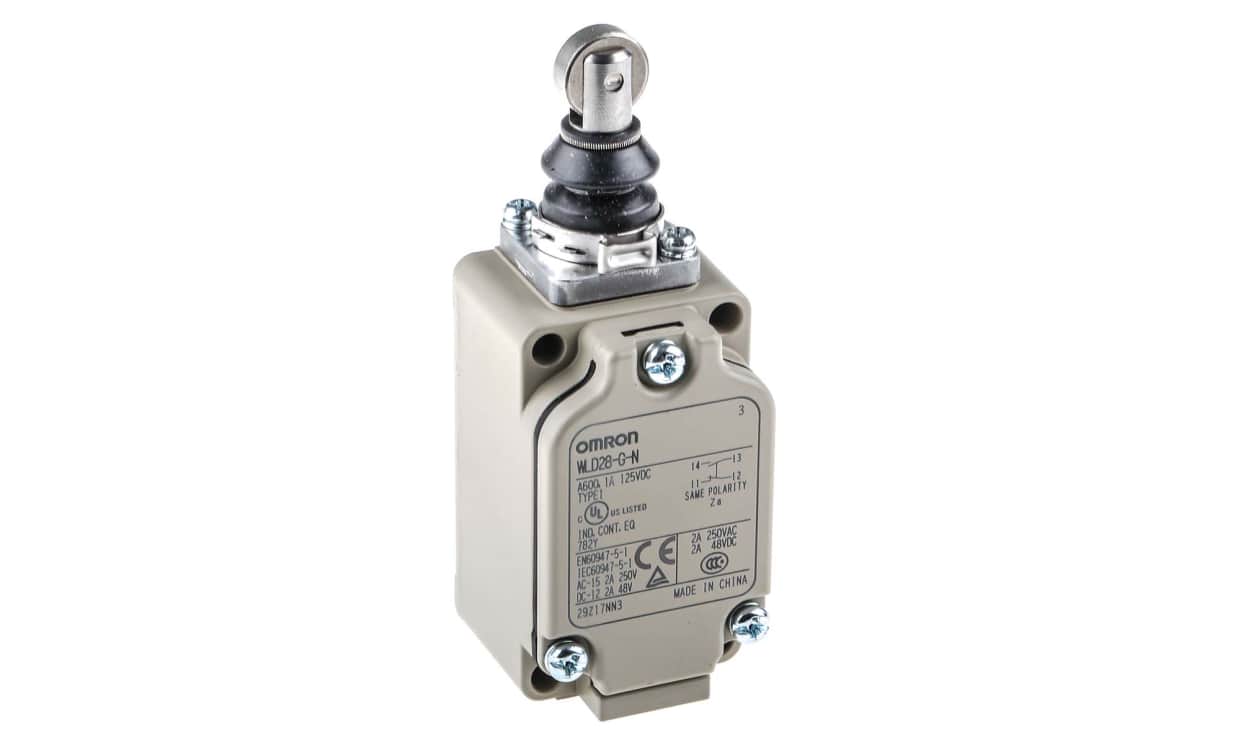

OMRON WLD28-G-N | WL Roller Plunger Limit Switch | NO/NC, PG13.5, 16.67 N OF, 10 A
Listed as a WL series roller plunger limit switch, the OMRON WLD28-G-N has NO/NC contacts and is rated 10 A max at 500 V AC. It comes with an IP67 rating, a PG13.5 connection and an operating range of -10 to +85 °C.
- NO/NC contact configuration; SPST pole and throw, snap-action operation
- Maximum current: 10 A; maximum voltage: 500 V AC / 250 V DC
- IP67 enclosure rating; PG13.5 connection
- Dimensions: 40 mm × 42 mm × 107.7 mm (L × W × D)
- Operating temperature: -10 to +85 °C
- Mechanical life: 15,000,000 operations; operating force: 16.67 N
- Detailed Description
- Specifications
- Downloads
Omron Series WL Limit Switch, Roller Plunger Actuator, IP67 - WLD28-G-N
Features & Benefits
• Roller plunger ensures smooth actuation and extended mechanical life
• IP67 rating makes it suitable for use in harsh industrial environments
• Wide operating temperature range (-10°C to +85°C) for flexibility in applications
• Can handle high voltages (up to 500V AC and 250V DC) for versatile use
Applications
• Suitable for industrial machinery and equipment that need durable switch solutions
Can this limit switch handle both AC and DC voltages?
Will this switch be suitable for use in outdoor environments?
Is the mechanical life of this switch sufficient for industrial applications?
| Brand | Omron |
| Series | WL |
| Actuator Type | Roller Plunger |
| IP Rating | IP67 |
| Pole and Throw Configuration | SPST |
| Normal State Configuration | NO/NC |
| Maximum Current | 10A |
| Maximum AC Voltage | 500V |
| Action Type | Snap Action |
| Length | 40 mm (1.57 in) |
| Maximum Operating Temperature | +85 °C (185 °F) |
| Width | 42 mm (1.65 in) |
| Depth | 107.7 mm (4.24 in) |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Mechanical Life | 15000000Operations |
| Maximum DC Voltage | 250V |
| Connection Type | PG13.5 |
| Standards Met | CE |
| Mounting Orientation | Back, Front |
| Operating Force | 16.67 N |
