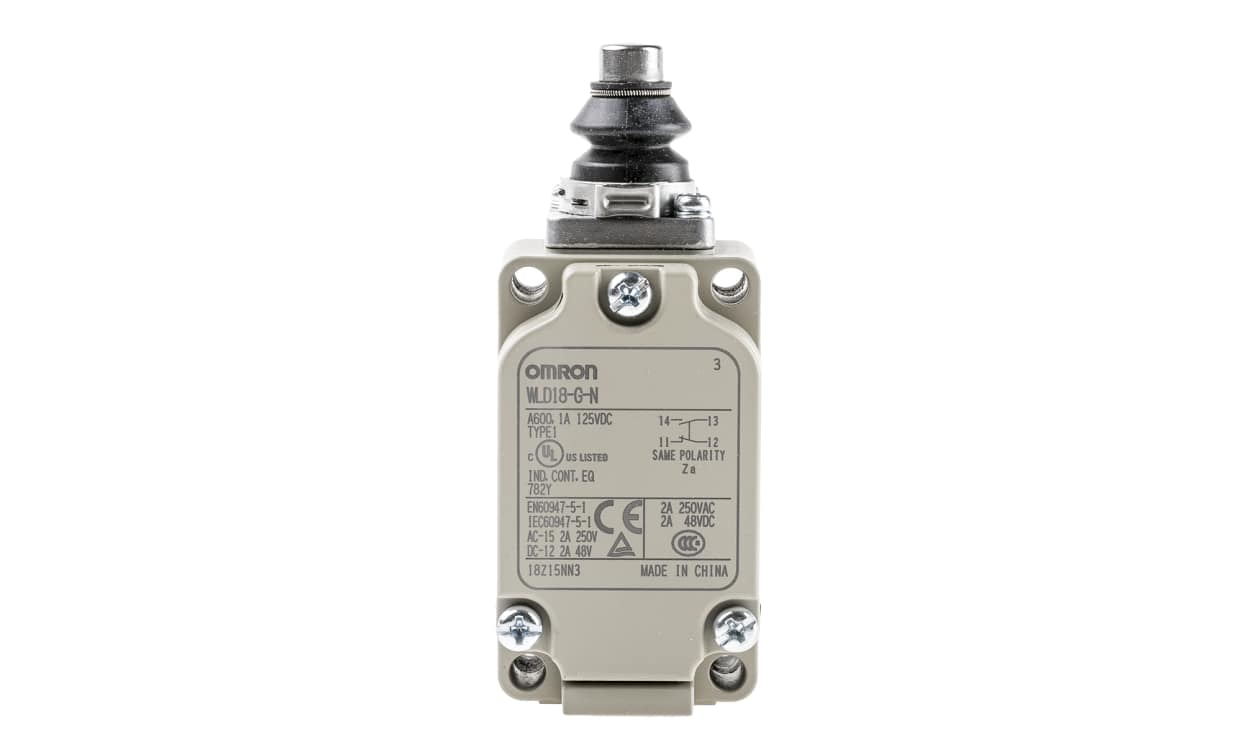

OMRON WLD18-G-N | WLD18 Plunger Limit Switch | NO/NC, PG13.5, 26.67 N OF, 10 A
With NO/NC contacts, the OMRON WLD18-G-N is a WLD18 series plunger limit switch rated 10 A max at 500 V AC. It has an IP67 rating, a PG13.5 connection and an operating range of -10 to +85 °C.
- NO/NC contact configuration; SPST pole and throw, snap-action operation
- Maximum current: 10 A; maximum voltage: 500 V AC / 250 V DC
- IP67 enclosure rating; PG13.5 connection
- Dimensions: 40 mm × 42 mm × 97.7 mm (L × W × D)
- Operating temperature: -10 to +85 °C; mounting: back/front
- Mechanical life: 15,000,000 operations; operating force: 26.67 N
- Detailed Description
- Specifications
Omron WLD18 Series Limit Switch, NO/NC Normal State Configuration, IP67 - WLD18-G-N
Features & Benefits
• Rated for 10A current handling capability
• SPST configuration suitable for single pole applications
• High mechanical life of 15 million operations
• Operates effectively in high-temperature settings up to 85°C
• Back and front mounting options provide versatility
Applications
• Utilised in safety interlocks for machinery
• Employed in packaging and handling systems
• Commonly used in conveyor belt
Can it handle both standard and micro loads?
Will it perform in high humidity conditions?
Is it easy to install in various orientations?
Can this switch be used in welding environments?
Is it suitable for outdoor applications?
| Brand | Omron |
| Series | WLD18 |
| Actuator Type | Plunger |
| IP Rating | IP67 |
| Pole and Throw Configuration | SPST |
| Normal State Configuration | NO/NC |
| Maximum Current | 10A |
| Maximum AC Voltage | 500V |
| Action Type | Snap Action |
| Length | 40 mm (1.57 in) |
| Maximum Operating Temperature | +85 °C (185 °F) |
| Width | 42 mm (1.65 in) |
| Depth | 97.7 mm (3.85 in) |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Mechanical Life | 15000000Operations |
| Maximum DC Voltage | 250V |
| Connection Type | PG13.5 |
| Mounting Orientation | Back, Front |
| Operating Force | 26.67 N |
