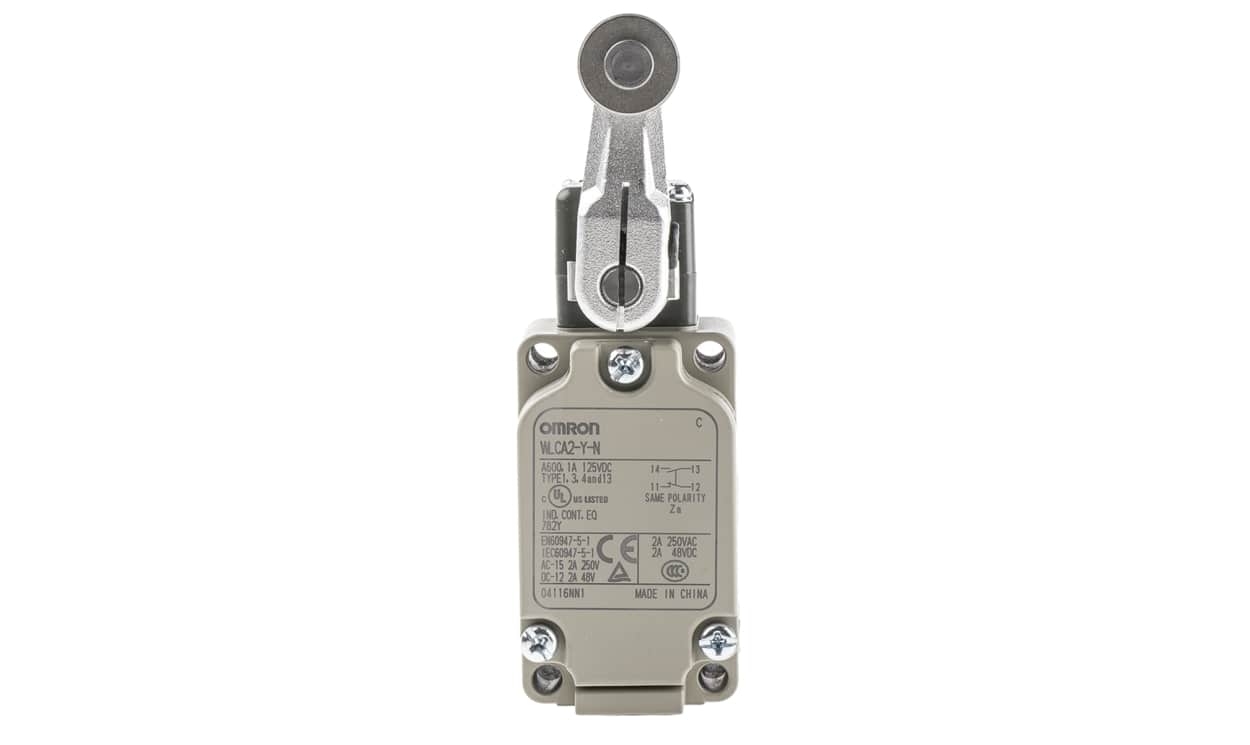

Omron WLCA2-Y-N, WL Series Roller Lever Limit Switch, NO/NC, IP67, SPST, 500V ac Max, 10A Max

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron WLCA2-Y-N, WL Series Roller Lever Limit Switch, NO/NC, IP67, SPST, 500V ac Max, 10A Max

Name: Omron WLCA2-Y-N, WL Series Roller Lever Limit Switch, NO/NC, IP67, SPST, 500V ac Max, 10A Max
Brand: OMRON
SKU: WLCA2-Y-N
Availability: OutOfStock

Part Number : WLCA2-Y-N

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron WL Series Limit Switch, IP67, 500V Maximum AC Voltage - WLCA2-Y-N

This limit switch by Omron is a high-quality device designed for precise action and durability in various industrial applications. With a unique roller lever actuator type and snap action design, this switch ensures reliable performance, making it an essential component in automation and control systems. Its IP67 rating offers protection against dust and water, and with a maximum mechanical life of 15,000,000 operations, it ensures long-term functionality in challenging environments.

Features & Benefits

• Snap action design for quick and precise switching
• Roller lever actuator type for accurate positioning
• IP67 rating for dust and water resistance
• Maximum operating temperature of +85 °C for versatility in different conditions
• Mounting orientation options include back and front for flexible installation
• SPST pole and throw configuration for reliable operation
• Wide operating voltage range of up to 500V AC and 250V DC
• High mechanical life of 15,000,000 operations for extended durability
• Operating force of 13.34 N for consistent performance

Applications

• Suitable for use in automation systems for accurate position detection
• Ideal for industrial machinery control to ensure precise operation
• Used in safety circuits to monitor machine status effectively

Can it withstand harsh environmental conditions?

Yes, it has an IP67 rating, making it resistant to dust and water.

Will it provide consistent performance over time?

It has a high mechanical life of 15,000,000 operations, ensuring long-term durability.

Is it suitable for different mounting orientations?

Yes, it can be mounted both back and front, offering installation flexibility.

Brand	Omron
Actuator Type	Roller Lever
Pole and Throw Configuration	SPST
Normal State Configuration	NO/NC
IP Rating	IP67
Maximum Current	10A
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Connection Type	M20
Series	WL
Action Type	Snap Action
Length	40mm
Maximum Operating Temperature	+85°C
Minimum Operating Temperature	-10°C
Standards Met	CE
Depth	125mm
Width	60mm
Mechanical Life	15000000Operations
Operating Force	13.34 N
Mounting Orientation	Back, Front

Omron WLCA2-Y-N, WL Series Roller Lever Limit Switch, NO/NC, IP67, SPST, 500V ac Max, 10A Max
