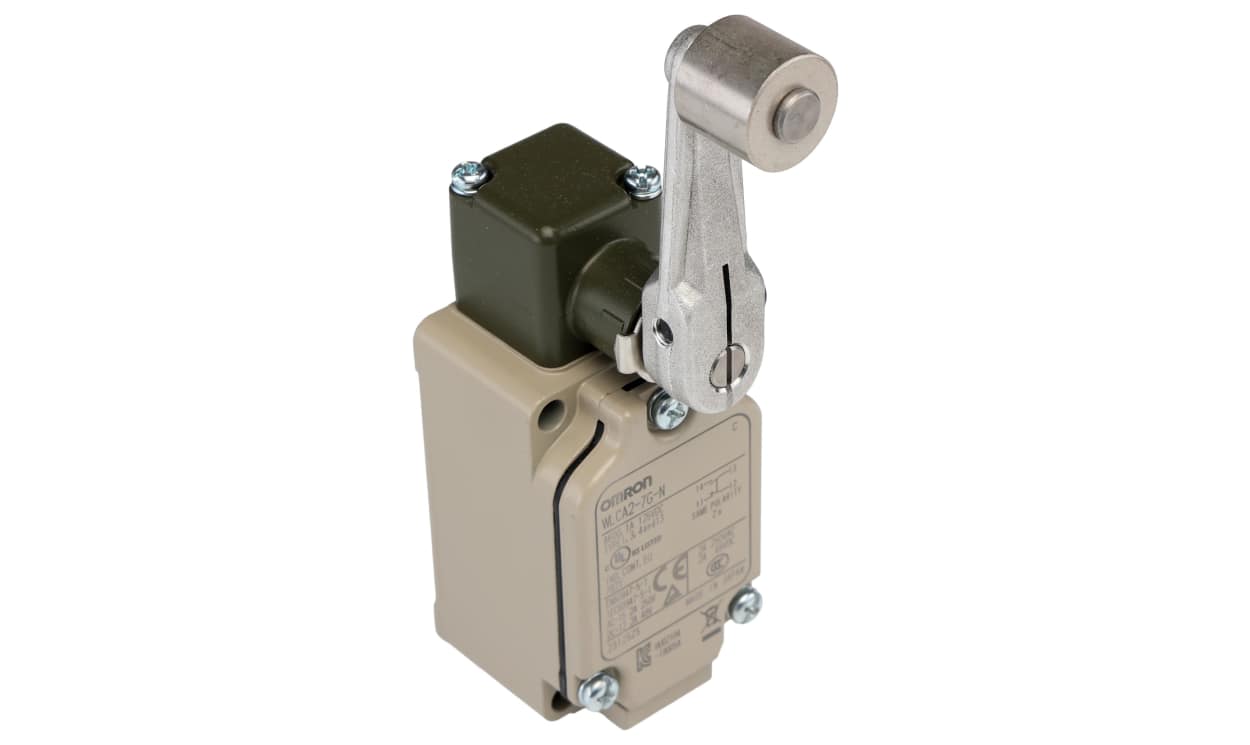

OMRON WLCA2-7G-N | WL Roller Lever Limit Switch | 1NO/1NC, DPDT, G1/2, 137 mm
With 1NO/1NC contacts, the OMRON WLCA2-7G-N is a WL series roller lever limit switch rated 2 A max at 250 V AC. Listed features of the WLCA2-7G-N include an IP67 rating, a metal housing, a G1/2 connection and an operating range of -10 to +80 °C.
- 1NO/1NC contact configuration; DPDT pole and throw, double-break operation
- Maximum current: 2 A; maximum voltage: 250 V AC / 48 V DC
- IP67 enclosure rating; metal housing; G1/2 connection
- Dimensions: 137 mm × 40 mm × 67.2 mm (L × W × D)
- Operating temperature: -10 to +80 °C; mounting: side
- Mechanical life: 15,000,000 operations
- Detailed Description
- Specifications
- Downloads
Omron Series WL Limit Switch, 137mm Length, Double Break Action Type - WL-CA2-7GN
Features & Benefits
• Supports double break action for increased safety
• Employs DPDT configuration for versatile circuit usage
• Extended mechanical life of 15 million operations ensures reliability
Applications
• Effective in packaging machinery for accurate positioning
• Suitable for conveyor systems to detect object presence
• Utilised in robotic systems for feedback and limit detection
What is the significance of the IP67 rating in this device?
How does this limit switch handle different voltage types?
What installation options are available with this product?
| Brand | Omron |
| Series | WL |
| Actuator Type | Roller Lever |
| IP Rating | IP67 |
| Pole and Throw Configuration | DPDT |
| Normal State Configuration | 1NO/1NC |
| Maximum Current | 2A |
| Maximum AC Voltage | 250V |
| Action Type | Double Break |
| Housing Material | Metal |
| Length | 137 mm (5.39 in) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Width | 40 mm (1.57 in) |
| Depth | 67.2 mm (2.65 in) |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Mechanical Life | 15000000Operations |
| Maximum DC Voltage | 48V |
| Connection Type | G1/2 |
| Mounting Orientation | Side |
