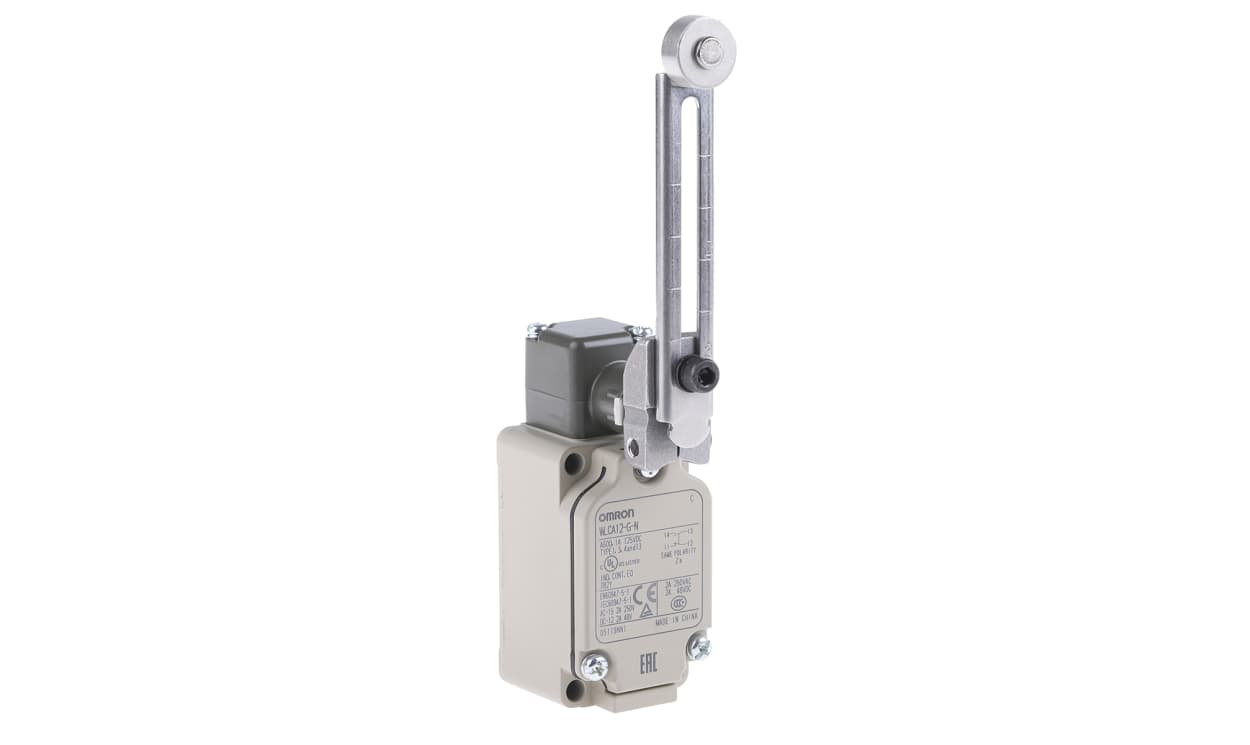

OMRON WLCA12-G-N | WL Adjustable Roller Lever Limit Switch | R25 to 89 mm, NO/NC, 2 A
Rated 2 A max at 250 V AC, the OMRON WLCA12-G-N is a WL series adjustable roller lever limit switch with NO/NC contacts. It has an IP67 rating, a metal housing and an operating range of -10 to +80 °C.
- Adjustable roller lever R25 to 89 mm, pretravel 15±5°
- NO/NC contact configuration; DPST pole and throw, double-break operation
- Maximum current: 2 A; maximum voltage: 250 V AC / 48 V DC
- IP67 enclosure rating; metal housing
- Dimensions: 94.1 mm × 40 mm × 67 mm (L × W × D)
- Operating temperature: -10 to +80 °C
- Detailed Description
- Specifications
- Features
- Downloads
WL Series General Purpose Limit Switch
Two sets of snap action contacts: N/C and N/O
Contact rating: 10A (Ith250Vac) max. 600ac, 250Vdc
Four position turret head
Operating temperature range: - 10° to +80°C
Set position indicator plate for easy maintenance
Conduit entry PG13.5
Approvals
OMRON Limit Switch, 250V Rated Insulation Voltage, 2.2kV AC Dielectric Strength - WL Series - WL-CA12-GN
Features & Benefits
• Slimline dimensions of 94.1 (L) x 67 (D) x 40mm (W) so it saves space in your setup
• Light weight of 275g makes it easy to handle during installation
• Compatible with AC and DC networks for versatility
• Metal body holds its own against impact and abrasion
Applications
• Lifts and escalators
• Marine engineering
What tool do I need to install this limit switch?
| Brand | Omron |
| Series | WL |
| Actuator Type | Adjustable Roller Lever |
| IP Rating | IP67 |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | NO/NC |
| Maximum Current | 2A |
| Maximum AC Voltage | 250V |
| Action Type | Double Break |
| Housing Material | Metal |
| Length | 94.1 mm (3.70 in) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Width | 40 mm (1.57 in) |
| Depth | 67 mm (2.64 in) |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Mechanical Life | 15000000Operations |
| Maximum DC Voltage | 48V |
| Connection Type | G1/2 |
| Standards Met | CCC, CE, CSA, UL |
| Mounting Orientation | Side |
Limit switch, adjustable roller lever: R25 to 89 mm, pretravel 15±5°, DPDB, Pg13.5 with ground terminal
