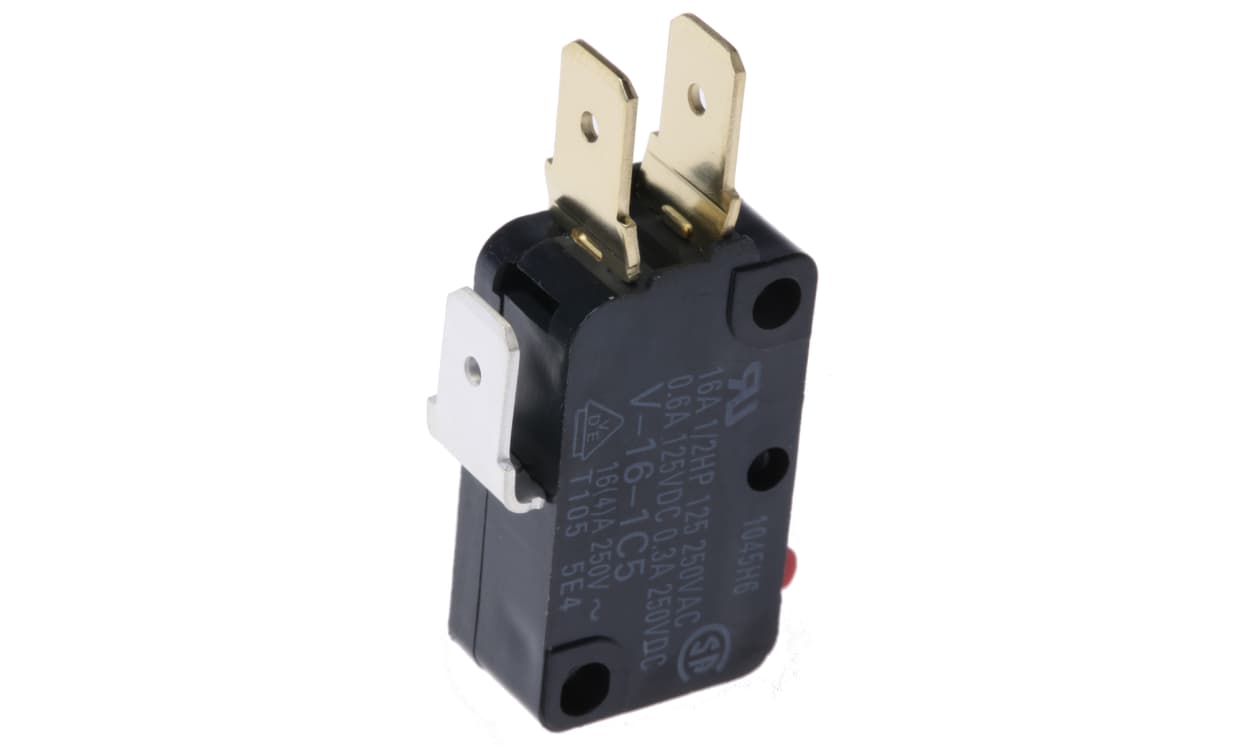

OMRON V-16-1C5 | Plunger Micro Switch | 16 A @ 250 V ac, SPDT, Tab Terminal
OMRON's V-16-1C5 is an SPDT micro switch combining a plunger actuator, tab terminals and a 16 A at 250 V ac contact rating. The plunger actuates at 1.96 N, with release at 0.49 N. This plunger version is rated for ambient temperatures of -25 to +80 °C.
- Contact configuration: SPDT (single-pole double-throw)
- Contacts made of silver alloy
- 50 million operations mechanical life
- Protection class IP40
- Contact rating: 16 A at 250 V ac
- Detailed Description
- Specifications
- Downloads
Miniature microswitch, V16 series
Lever length = 27.5 mm
V163 format as per V161:
Lever length = 51.3 mm
Approvals

| Brand | Omron |
| Actuator Type | Plunger |
| Terminal Type | Tab |
| Contact Configuration | SPDT |
| IP Rating | IP40 |
| Contact Current Rating | 16 A @ 250 V ac |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Contact Material | Silver Alloy |
| Mechanical Life | 50000000Operations |
| Operating Temperature Range | -25 → +80 °C (-13 to 176 °F) |
| Operating Force | 1.96 N |
| Release Force | 0.49N |
