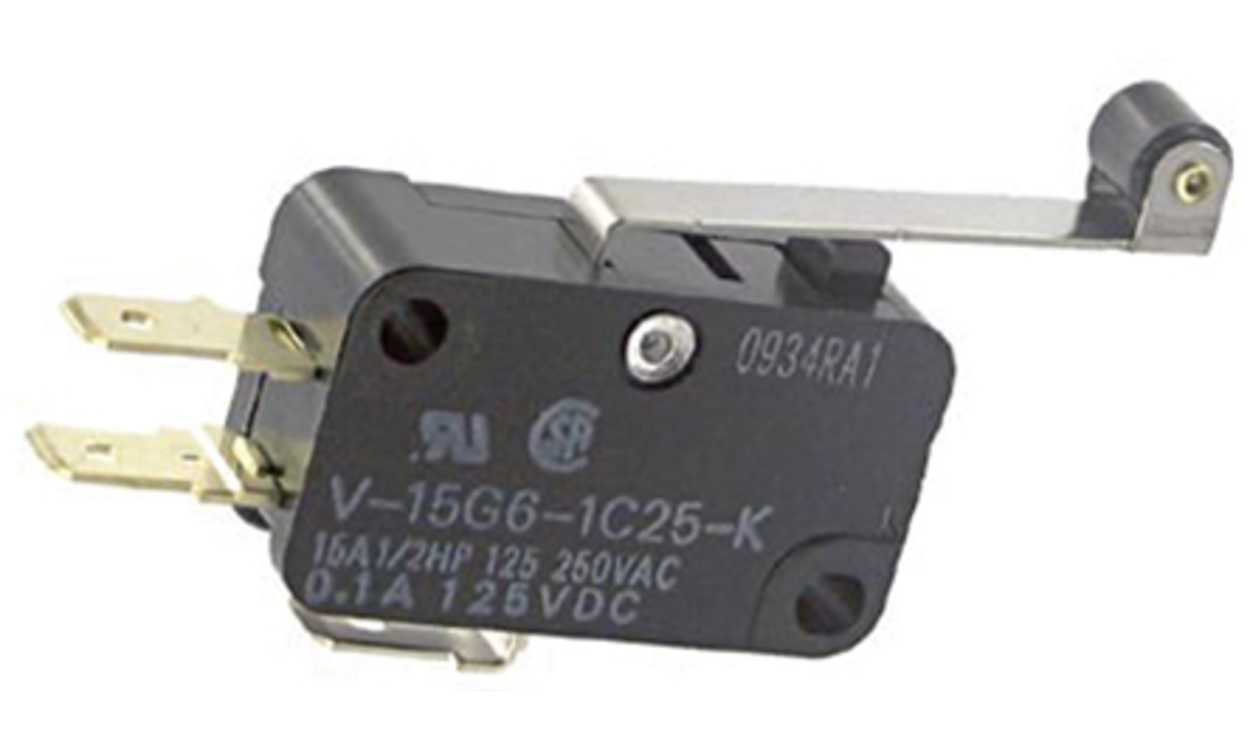

OMRON V-15G6-1C25-K | Hinge Roller Lever Micro Switch | 15 A @ 250 V ac, SP-CO, Quick Connect Terminal
With a hinge roller lever actuator and quick-connect terminals, the OMRON V-15G6-1C25-K micro switch switches 15 A at 250 V ac through SP-CO contacts. The hinge roller lever model uses silver alloy contacts. It operates at 200 gf and releases at 14 gf.
- Contact configuration: SP-CO (single-pole changeover)
- Operating temperature: -25 to +80 °C
- Mechanical life: 100,000 operations
- Ingress protection: IP40
- Case material: thermosetting
- Detailed Description
- Specifications
- Downloads
Omron Miniature Basic Switches 15 A (V-Size)
Available with various terminations, including solder, quick connect and screw
Silver alloy contacts
RoHS Compliant
| Brand | Omron |
| Actuator Type | Hinge Roller Lever |
| Terminal Type | Quick Connect |
| Contact Configuration | SP-CO |
| IP Rating | IP40 |
| Contact Current Rating | 15 A @ 250 V ac |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Contact Material | Silver Alloy |
| Mechanical Life | 100000Operations |
| Operating Temperature Range | -25 → +80 °C (-13 to 176 °F) |
| Operating Force | 200 gf |
| Release Force | 14gf |
| Case Material | Thermosetting |
