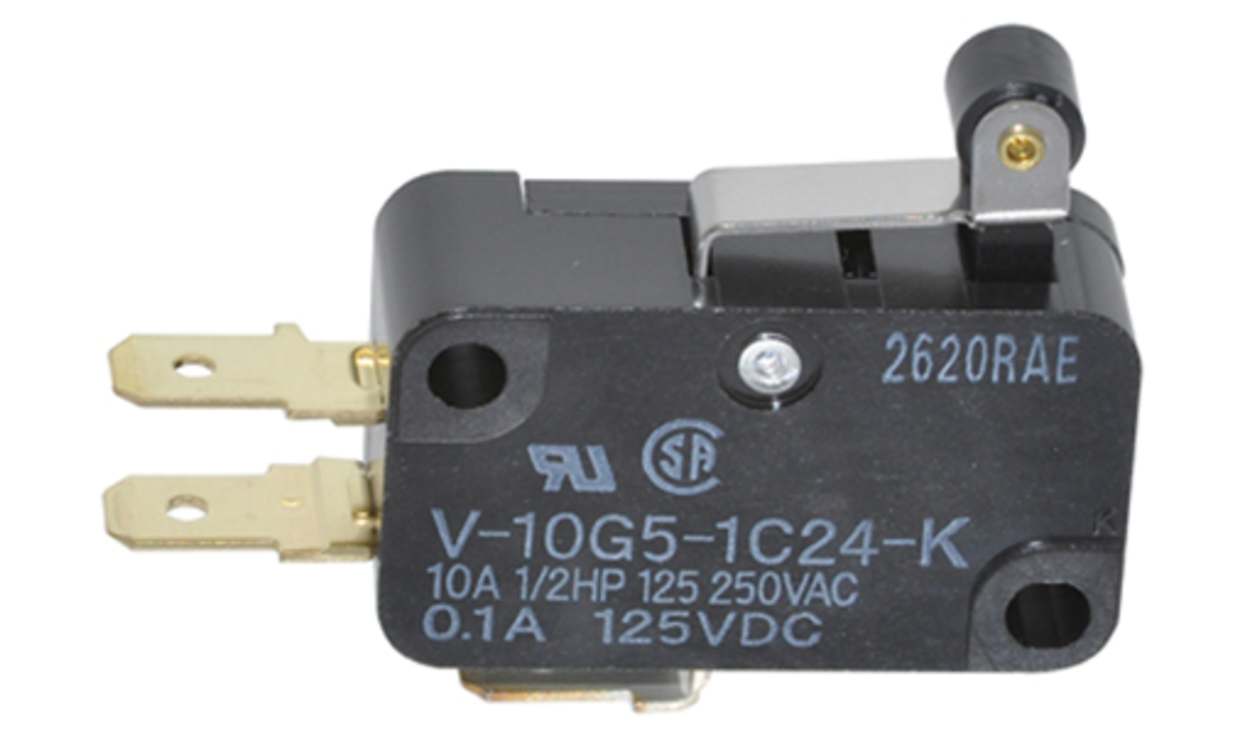

OMRON V-10G5-1C24-K | Short Hinge Roller Lever Micro Switch | 10 A @ 250 V ac, SP-CO, Quick Connect Terminal
The 10 A at 250 V ac rating of the OMRON V-10G5-1C24-K suits SP-CO switching from a short hinge roller lever actuator, with connection via quick-connect terminals. The short hinge roller lever model uses silver contacts. Actuation needs 100 gf, with release at 15 gf.
- Contact configuration: SP-CO (single-pole changeover)
- Works from -25 to +80 °C
- Rated for 300,000 operations (mechanical)
- IP40 enclosure rating
- Case material: thermosetting
- Detailed Description
- Specifications
- Downloads
Omron Miniature Basic Switch (10A)
Silver contacts
| Brand | Omron |
| Actuator Type | Short Hinge Roller Lever |
| Terminal Type | Quick Connect |
| Contact Configuration | SP-CO |
| IP Rating | IP40 |
| Contact Current Rating | 10 A @ 250 V ac |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Contact Material | Silver |
| Mechanical Life | 300000Operations |
| Operating Temperature Range | -25 → +80 °C (-13 to 176 °F) |
| Operating Force | 100 gf |
| Release Force | 15gf |
| Case Material | Thermosetting |
