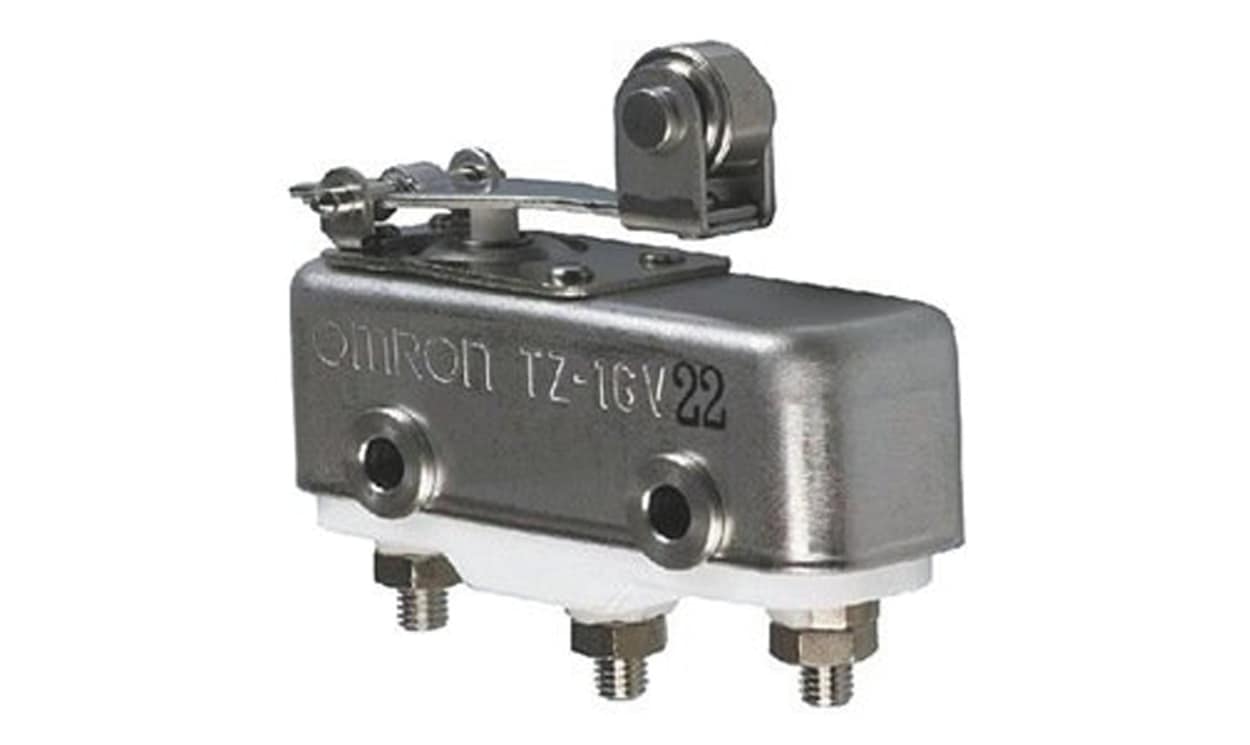

OMRON TZ-1GV22 | Roller Lever Limit Switch | NO/NC, SPDT, IP00, -65 to +400 °C
The OMRON TZ-1GV22 is a roller lever limit switch with NO/NC contacts, rated 1 A max at 250 V AC. The TZ-1GV22 has an IP00 rating, screw terminals and an operating range of -65 to +400 °C.
- NO/NC contact configuration; SPDT pole and throw, snap-action operation
- Maximum current: 1 A; maximum voltage: 250 V AC / 125 V DC
- IP00 enclosure rating; screw terminals
- Dimensions: 49.2 mm × 21.8 mm × 17.4 mm (L × W × D)
- Operating temperature: -65 to +400 °C; mounting: back/front
- Mechanical life: 100,000 operations
- Detailed Description
- Specifications
- Downloads
TZ Series High Temperature Limit Switch
Contact rating: 1A at 250 Vac
Mechanical service life: 100,000 operations minimum
Electrical service life: 50,000 operations minimum
| Brand | Omron |
| Actuator Type | Roller Lever |
| IP Rating | IP00 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Maximum Current | 1A |
| Maximum AC Voltage | 250V |
| Action Type | Snap Action |
| Length | 49.2 mm (1.94 in) |
| Maximum Operating Temperature | +400 °C (752 °F) |
| Width | 21.8 mm (0.858 in) |
| Depth | 17.4 mm (0.685 in) |
| Minimum Operating Temperature | -65 °C (-85 °F) |
| Mechanical Life | 100000Operations |
| Maximum DC Voltage | 125V |
| Connection Type | Screw |
| Mounting Orientation | Back, Front |
