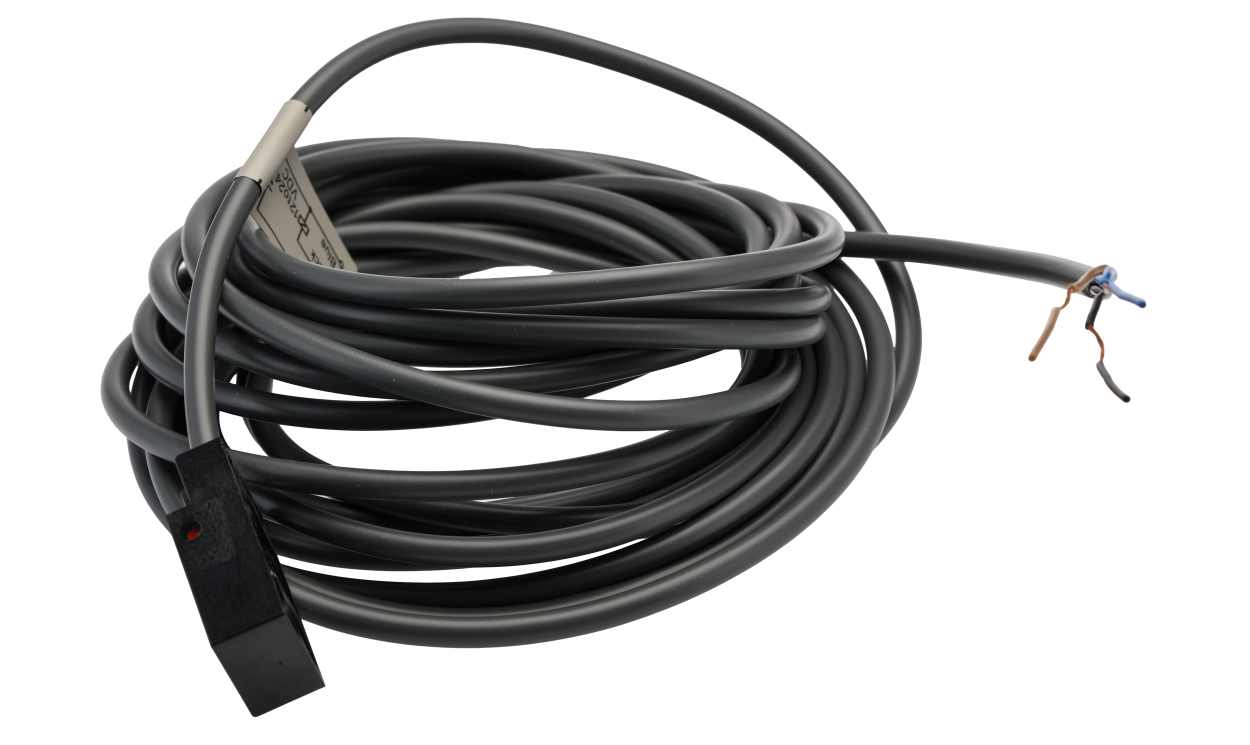

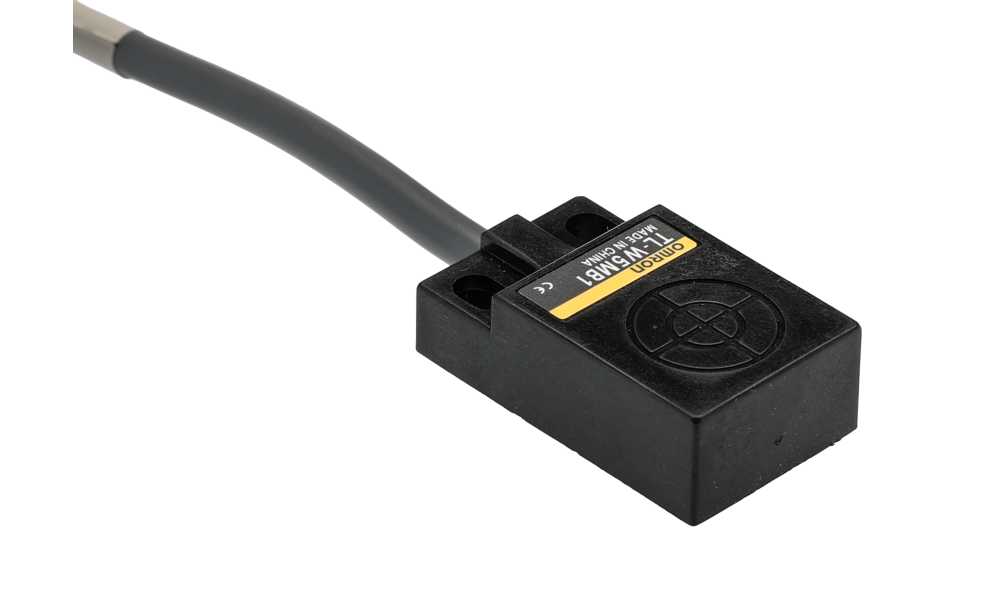

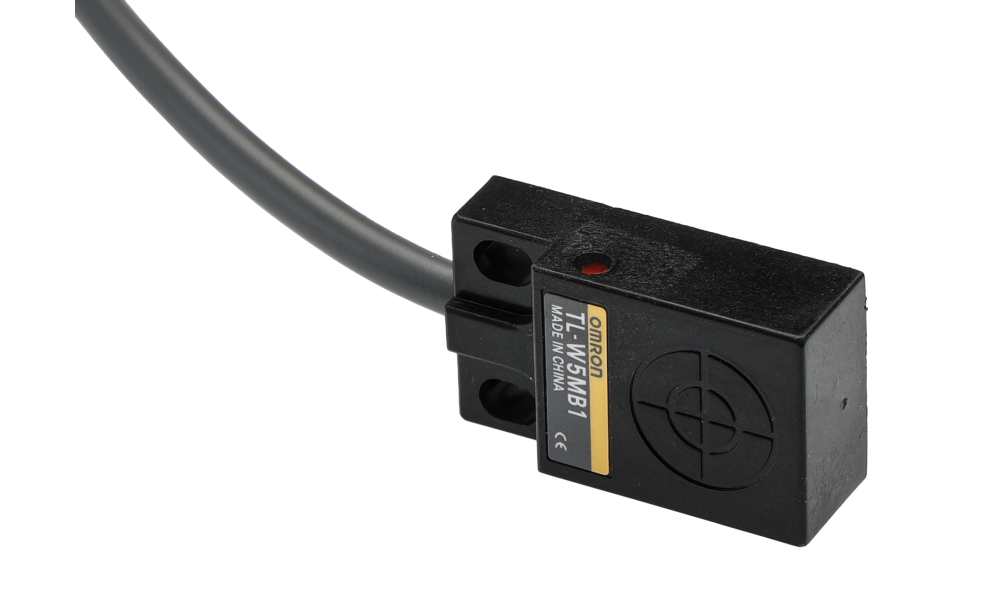

OMRON TL-W5MB1 5M | Block Inductive Proximity Sensor | 5 mm Sensing, PNP NO, Pre-Wired Cable

Name: OMRON TL-W5MB1 5M | Block Inductive Proximity Sensor | 5 mm Sensing, PNP NO, Pre-Wired Cable
Brand: OMRON
SKU: TL-W5MB1 5M
Availability: OutOfStock

Part Number : TL-W5MB1 5M

With a PNP normally open output and a 5 mm sensing distance, the OMRON TL-W5MB1 5M block-style inductive proximity sensor connects by a pre-wired cable. The TL-W5MB1 5M runs on 12 to 24 V DC and is rated IP67.

Detection range: 5 mm
Output: PNP NO, switching current 100 mA
Supply voltage 12 to 24 V DC; connection by a pre-wired cable
IP67 rated, minimum operating temperature -25 °C
Non-flush mounting, switching frequency 500 Hz, TL series
ABS housing, length 18 mm, reverse polarity protection

Availability: in stock

Detailed Description
Specifications
Downloads

Omron Series TL Proximity Sensor, 5mm Detection Range, PNP Output Type - TL-W5MB1 5M

This proximity sensor is an inductive type designed for efficient object detection in various automation environments. The sensor features a compact block housing made from ABS, measuring 18mm in length and 10mm in depth. With a detection range of 5mm, it operates effectively within a supply voltage of 12 to 24 V DC, complemented by a cable length of 2m. An IP67 rating ensures durability in harsh conditions, making it an ideal choice for industrial applications.

Features & Benefits

• Offers a detection range of 5mm for precise sensing
• Employs PNP output, enhancing compatibility with various systems
• Features non-flush mounting, optimising installation flexibility
• Capable of operating at a supply voltage range of 12 to 24 V DC

Applications

• Used for automation in manufacturing processes
• Suitable for machine presence detection in conveyor systems
• Ideal for position sensing in robotic
• Utilised in packaging machinery for efficient operations

How does the IP67 rating benefit the sensor in industrial use?

The IP67 rating provides complete protection against dust ingress and allows the sensor to withstand immersion in water, making it highly reliable in challenging environments often found in industrial settings.

What are the operating temperature limits for this sensor?

It is designed to operate effectively within a temperature range of -25°C to +70°C, ensuring functionality in both cold and hot conditions typically encountered in industrial applications.

How does the PNP output affect integration with other systems?

The PNP output configuration allows for easy compatibility with a range of industrial control systems, facilitating seamless integration into existing setups and enabling quick response in detection applications.

What safety features are included to protect the sensor?

It comes equipped with short circuit protection, helping to prevent damage from overload situations and contributing to its longevity in various operational environments.

What are the implications of using a non-flush mounting design?

The non-flush mounting design offers greater installation flexibility, allowing the sensor to be used in diverse applications without compromising detection performance due to conflicting installation surfaces.

Brand	Omron
Sensor Technology	Inductive
Body Style	Block
Detection Range	5 mm
Digital Switching Output Type	PNP
Output Function	NO
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	12 → 24 V dc
Length	18mm
IP Rating	IP67
Mounting Type	Non-Flush
Housing Material	ABS
Maximum DC Voltage	24V
Minimum Operating Temperature	-25°C
Switching Frequency	500 Hz
Series	TL
Maximum Switching Frequency	500Hz
Switching Current	100 mA
Reverse Polarity Protection	Yes
