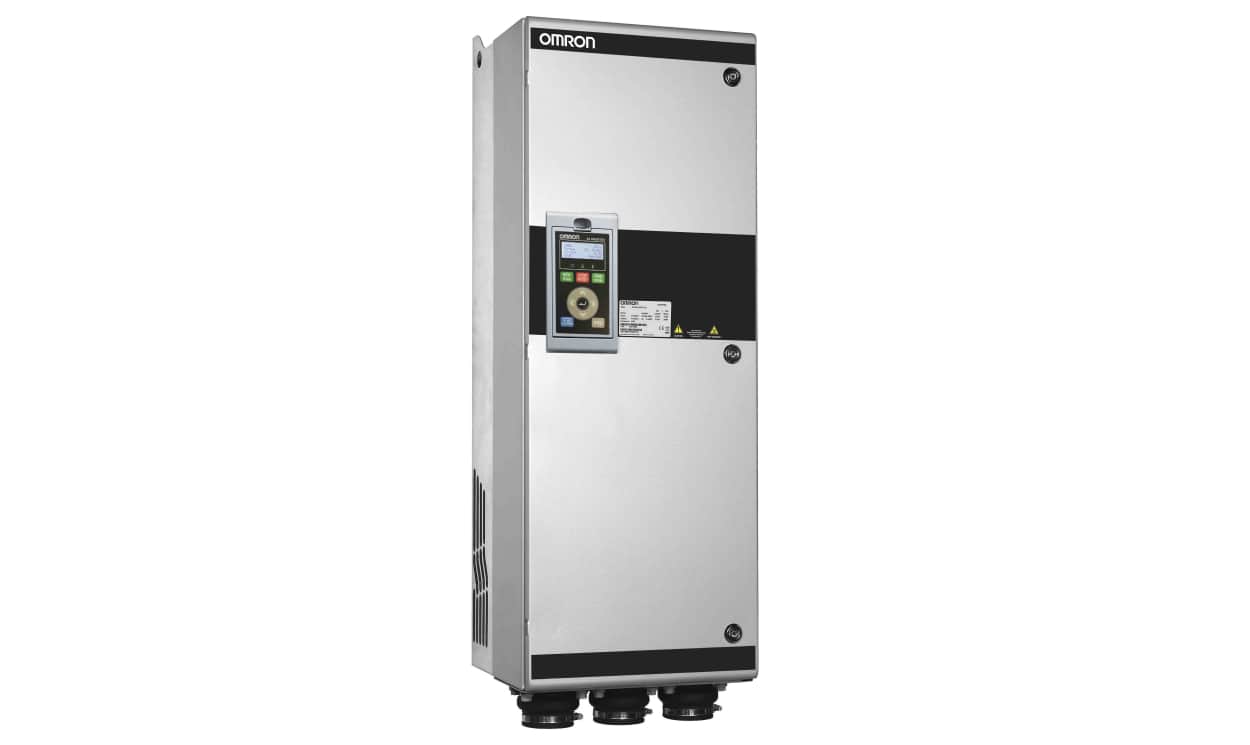

OMRON SX-D6030-EVA4 | SX Series Inverter Drive | 30 kW, 3-Phase 690 V AC, IP54

Name: OMRON SX-D6030-EVA4 | SX Series Inverter Drive | 30 kW, 3-Phase 690 V AC, IP54
Brand: OMRON
SKU: SX-D6030-EVA4
Availability: OutOfStock

Part Number : SX-D6030-EVA4

Rated at 30 kW, the OMRON SX-D6030-EVA4 SX series inverter drive runs from a 3-phase 690 V AC supply, with 33 A rated current. Listed motor types for the SX-D6030-EVA4: AC motors. For networking, the SX-D6030-EVA4 lists DeviceNet, EtherCAT, Modbus, Modbus TCP, PROFIBUS and PROFINET.

Power rating: 30 kW
Supply: 3-phase 690 V AC
Rated current: 33 A
Output frequency: 400 Hz
Protection: IP54
STO: No

Availability: in stock

Detailed Description
Specifications

The Omron SX series inverter for high performance vector control has built in filter and provide 400 Hz output frequency. It has 690 V class three-phase 1.5 kW to 3,000 kW ratted values.

New operator with Real-Time Clock
IM & PM motor control
IP54 degree of protection
Built-in Filter according to C3 Class
Built-in Fuses (From 400 kW)
Safety EN62061 standards STO SIL2
Load curve control
HCB technology (Half controlling Bridge)
Logic programmability
Pre-maintenance alarms
Options flexibility (I/O’s, Fieldbus, PTC/PT100, Multiple
Pump control, Encoder, Crane control)
Communication options (EtherCAT, PROFINET, Modbus,
DeviceNet, PROFIBUS, Modbus TCP)
24 VDC control board supply
Liquid cooling drive version
12-pulse rectifier option

Brand	Omron
Power Rating	30 kW
Phase	3
Supply Voltage	690 V ac
Current Rating	33 A
Series	SX
For Use With	AC Motors
Field Bus Communication Type	DeviceNet, EtherCAT, Modbus, Modbus TCP, PROFIBUS, PROFINET
IP Rating	IP54
Output Frequency	400Hz
STO	No
