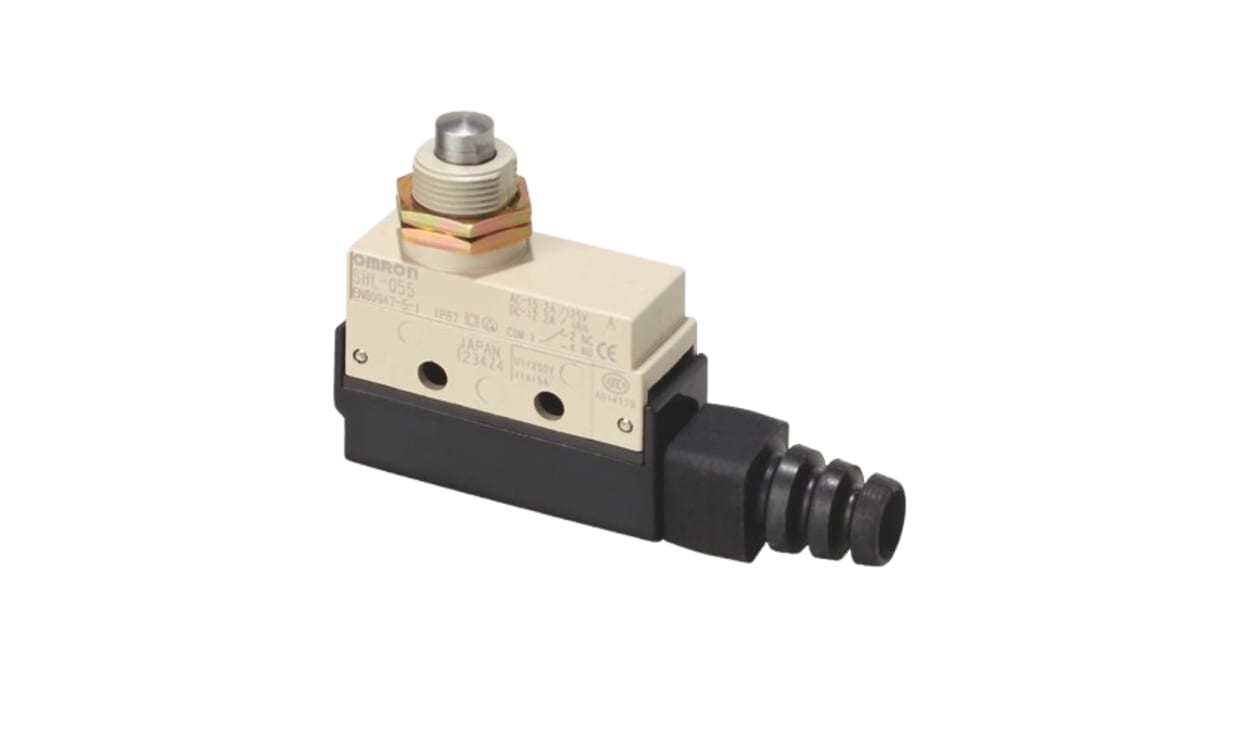

OMRON SHL-Q55 | SHL Plunger Limit Switch | NO/NC, SPDT, IP67, Screw Terminals
Built to IP67, the OMRON SHL-Q55 SHL series plunger limit switch offers NO/NC contacts and a rating of 2 A AC / 200 mA DC max, 480 V AC max. Specifications for the SHL-Q55 include screw terminals and an operating range of -10 to +80 °C.
- NO/NC contact configuration; SPDT pole and throw, snap-action operation
- Maximum current: 2 A AC and 200 mA DC; maximum voltage: 480 V AC / 250 V DC
- IP67 enclosure rating; screw terminals
- Dimensions: 73.5 mm × 35.9 mm × 17.5 mm (L × W × D)
- Operating temperature: -10 to +80 °C; mounting: side
- Mechanical life: 10,000,000 operations
- Detailed Description
- Specifications
- Downloads
Omron SHL Series Limit Switch, 73.5mm Length, 17.5mm Depth - SHL-Q55
Features & Benefits
• Designed for a maximum current of 2A AC and 200mA DC
• Robust zinc housing enhances durability in demanding settings
• Works efficiently within temperatures ranging from -10°C to +80°C
• Achieves a mechanical life of 10 million operations
Applications
• Effective in machinery for automation processes
• Used for limit detection in various electrical control systems
• Ideal for safety interlocks in equipment and machinery
What specific advantages does the snap action mechanism provide for operational efficiency?
How does the IP67 rating impact the performance of the switch in industrial settings?
What considerations should be taken into account regarding voltage compatibility when integrating this device?
Standards
| Brand | Omron |
| Series | SHL |
| Actuator Type | Plunger |
| IP Rating | IP67 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Maximum Current | ac 2 A, dc 200mA |
| Maximum AC Voltage | 480V |
| Action Type | Snap Action |
| Length | 73.5 mm (2.89 in) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Width | 35.9 mm (1.41 in) |
| Depth | 17.5 mm (0.689 in) |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Mechanical Life | 10000000Operations |
| Maximum DC Voltage | 250V |
| Connection Type | Screw |
| Mounting Orientation | Side |
