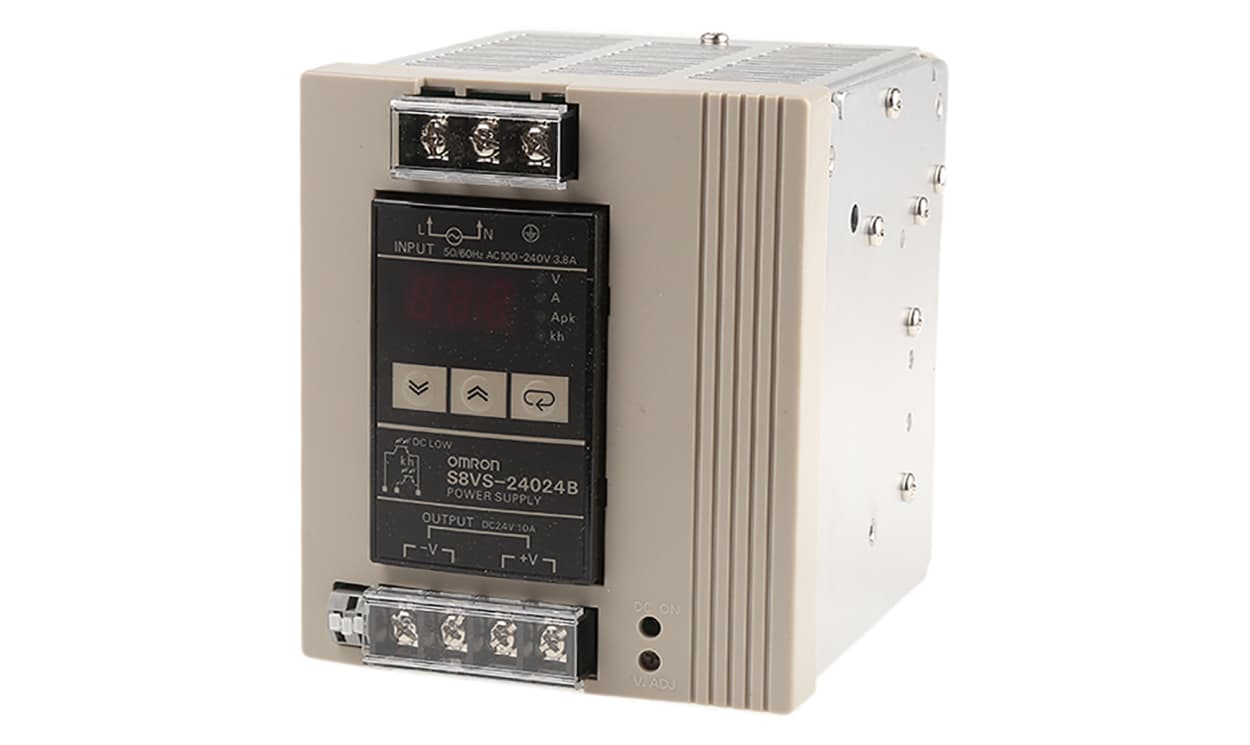

OMRON S8VS-24024B | S8VS Switched Mode DIN Rail Power Supply | 24 V DC, 10 A, 240 W
With an output of 10 A at 24 V DC (240 W), OMRON's S8VS-24024B is an S8VS switched-mode DIN rail power supply accepting single-phase input of 85 to 264 V AC.
- Input: 85 to 264 V AC, single-phase
- Output: 24 V DC, 10 A, 240 W
- Ripple and noise ±2%
- Load regulation ±1.5%
- MTBF 135,000 h
- Temperature range -10 °C to +60 °C
- Detailed Description
- Specifications
- Downloads
60W to 240W S8VS Series Power Supplies
60/90/120/180/240/480-W Models
• New models with screwless terminal blocks and indication monitor
• 3-digit, 7-segment status display
Note
Approvals
Part Number S8VS-24024B
Features and Benefits.
Safety and Storage.
Approvals
Standards
Conforms to SEMI F47-0706 (when 200 V ac input is used)
UL 508/60950-1, , CSA C22.2 No. 107.1/60950/1 EN50178 (=VDE 0160),
EN60950-1 (=VDE 0805 Teil 1)
| Brand | Omron |
| Series | S8VS |
| Type | Switched Mode |
| AC or DC Input Voltage | ac |
| Input Voltage | 85 → 264V ac |
| AC or DC Output Voltage | dc |
| Output Voltage | 24V dc |
| Output Current | 10A |
| Depth | 125.2 mm (4.93 in) |
| Width | 100 mm (3.94 in) |
| Height | 115 mm (4.53 in) |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Dimensions | 125.3 x 100 x 116.5 mm (4.93×3.94×4.59 in) |
| Mounting Type | DIN Rail Mount |
| Minimum Temperature | -10 °C (14 °F) |
| Maximum Temperature | +60 °C (140 °F) |
| MTBF | 135000h |
| Ripple And Noise | ±2% |
| Load Regulation | ±1.5% |
