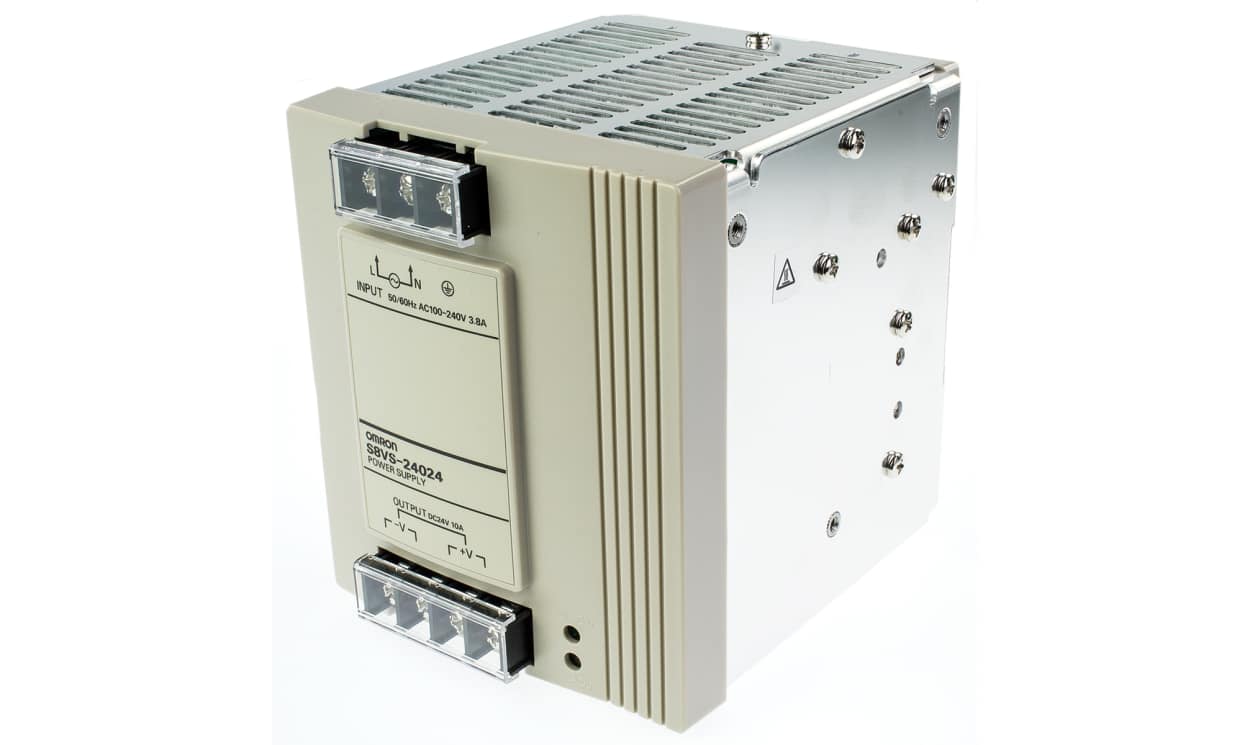

Omron S8VS-24024, S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 10A Output, 240W

Part Number : S8VS-24024

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron S8VS Series DIN Rail Power Supply, 240W Power Rating, 24V DC Output Voltage - S8VS-24024

This DIN rail power supply is a compact and efficient solution designed for industrial applications. Featuring a switched-mode power supply, it delivers a steady output of 24V DC with a current capacity of 10A. The unit operates effectively within an input voltage range of 100 to 240V AC, ensuring compatibility across various settings. With dimensions of 125.3mm x 100mm x 116.5mm, it is designed to fit seamlessly onto DIN rails, facilitating space-saving installations.

Features & Benefits

• Compact form enhances installation flexibility in limited spaces
• Switched-mode design ensures high efficiency at 88%
• High output capacity supports demanding industrial applications
• Load regulation of ±1.5% maintains stable voltage output
• Operating temperature range of -10°C to +60°C for various environments
• Equipped with overload and overvoltage protection for system safety

Applications

• Used for powering automation equipment in control panels
• Ideal for supplying power to sensors and actuators in machinery
• Utilised in industrial control systems requiring reliable DC power
• Suitable for projects demanding high efficiency and compact design

What is the efficiency rating for this power supply?

The power supply boasts an efficiency rating of 88%, ensuring optimal performance and reduced energy consumption during operation.

How does this unit ensure voltage stability during load changes?

It features a load regulation of ±1.5%, which helps maintain stable output voltage even when the load fluctuates, providing reliable power for your applications.

Can this power supply operate in extreme temperatures?

Yes, it operates effectively within a temperature range of -10°C to +60°C, making it suitable for various industrial environments.

What protective features are included to safeguard the system?

It includes overload protection and overvoltage protection, which automatically reset under fault conditions, ensuring system safety and longevity.

Approvals

Standards

Harmonic current emissions conform to EN61000-3-2.
Conforms to SEMI F47-0706 (when 200 V ac input is used)
UL 508/60950-1, CSA C22.2 No. 107.1/60950/1 EN50178 (=VDE 0160),
EN60950-1 (=VDE 0805 Teil 1)

Brand	Omron
Series	S8VS
AC Input Voltage	100 → 240V ac
Type	Switched Mode
Electrical Phase	1
AC or DC Input Voltage	ac
Number of Outputs	1
Input Voltage	85 → 264V ac
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	10A
Dimensions	125.3 x 100 x 116.5 mm
Height	115 mm
Width	100 mm
Depth	125.2 mm
Minimum Temperature	-10°C
Mounting Type	DIN Rail Mount
Load Regulation	±1.5%
Efficiency	88%
Maximum Temperature	+60°C
