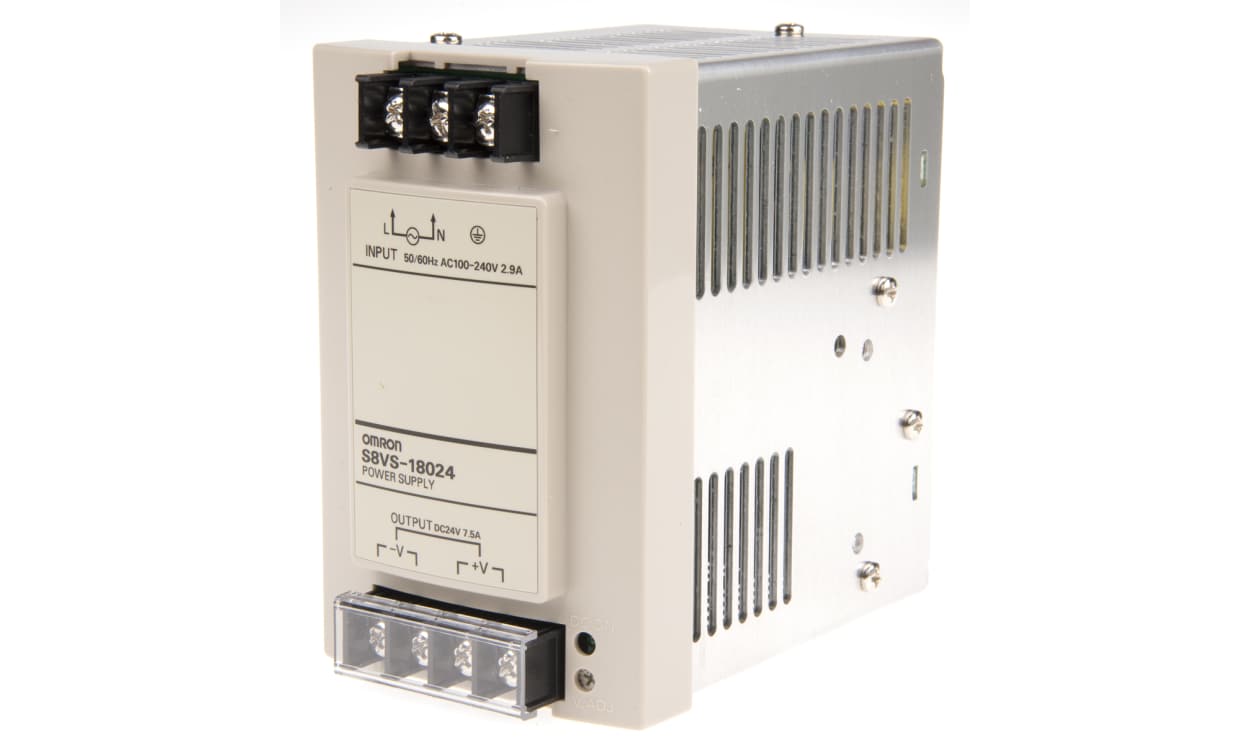

OMRON S8VS-18024 | S8VS DIN Rail Power Supply | 24 V DC, 7.5 A, 180 W
With an output of 7.5 A at 24 V DC (180 W), OMRON's S8VS-18024 is an S8VS DIN rail power supply accepting single-phase input of 100 to 240 V AC. The OMRON datasheet lists the complete specifications of the S8VS-18024.
- Input: 100 to 240 V AC, single-phase
- Output: 24 V DC, 7.5 A, 180 W
- Efficiency 88%
- Ripple and noise ±2%
- Load regulation ±1.5%
- MTBF 135,000 h
- Detailed Description
- Specifications
- Downloads
Omron S8VS Series Power Supply, 7.5A Output Current, 180W Power Rating - S8VS-18024
Features & Benefits
• Provides output current of 7.5A for dependable performance
• Load regulation of ±1.5% ensures consistent output
• Operating temperature range of +25 to +85°C promotes longevity
• 180W power rating supports multiple applications
• Designed for DIN rail mounting facilitates installation
Applications
• Suitable for powering machinery and equipment
• Ideal for industrial electronics integration
• Employed in robotics and manufacturing processes
What is the input voltage range for the Switch Mode Power Supply?
What is the efficiency of the Switch Mode Power Supply at different input voltages?
How does the Switch Mode Power Supply handle overload and overvoltage protection?
Standards
Conforms to SEMI F47-0706 (when 200 V ac input is used)
UL 508/60950-1, CSA C22.2 No. 107.1/60950/1 EN50178 (=VDE 0160),
EN60950-1 (=VDE 0805 Teil 1)
| Brand | Omron |
| Series | S8VS |
| Type | Power Supply |
| AC or DC Input Voltage | ac |
| Input Voltage | 100 → 240V ac |
| AC or DC Output Voltage | dc |
| Output Voltage | 24V dc |
| Output Current | 7.5A |
| Depth | 125.3 mm (4.93 in) |
| Width | 76.4 mm (3.01 in) |
| Height | 120.75 mm (4.75 in) |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Dimensions | 125.3 x 76.4 x 120.75 mm (4.93×3.01×4.75 in) |
| Minimum Temperature | +25 °C (77 °F) |
| Efficiency | 88% |
| MTBF | 135000h |
| Ripple And Noise | ±2% |
| Load Regulation | ±1.5% |
| AC Input Voltage | 100 → 240V ac |
