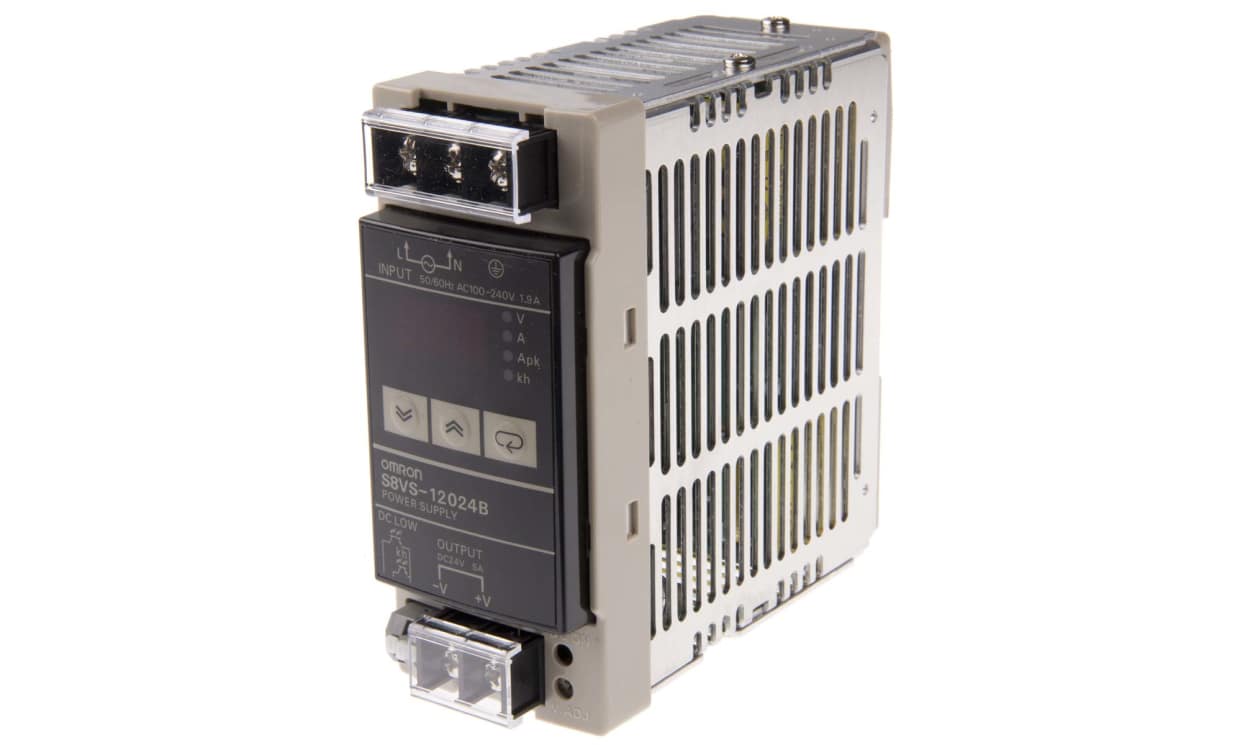

OMRON S8VS-12024B | S8VS Switched Mode DIN Rail Power Supply | 24 V DC, 5 A, 120 W
Rated for 24 V DC and 5 A (120 W), the S8VS-12024B is an S8VS switched-mode DIN rail power supply from OMRON that runs on a single-phase supply of 85 to 264 V AC.
- Input: 85 to 264 V AC, single-phase
- Output: 24 V DC, 5 A, 120 W
- Efficiency 80%
- Load regulation ±1.5%
- MTBF 135,000 h
- Temperature range -10 °C to +60 °C
- Detailed Description
- Specifications
- Downloads
Omron S8VS Series Power Supply, 24V DC Output Voltage, 5A Output Current - S8VS-12024B
Features & Benefits
• High efficiency rating of 80% reduces energy costs
• Compact design saves space in electrical enclosures
• Low ripple and noise enhance power quality
• Designed for long life with a mean time between failures of 135,000 hours
Applications
• Ideal for industrial machinery requiring stable DC power
• Compatible with various sensors and actuators
• Effective in control systems requiring low ripple and noise
What is the maximum output power this unit can provide?
How does this power supply manage heat during operation?
What precautions should be taken when installing this power supply?
What safety features are included to protect the connected devices?
Approvals
Standards
Conforms to SEMI F47-0706 (when 200 V ac input is used)
UL 508/60950-1, CSA C22.2 No. 107.1/60950/1, EN50178 (=VDE 0160),
EN60950-1 (=VDE 0805 Teil 1)
| Brand | Omron |
| Series | S8VS |
| Type | Switched Mode |
| AC or DC Input Voltage | ac |
| Input Voltage | 85 → 264V ac |
| AC or DC Output Voltage | dc |
| Output Voltage | 24V dc |
| Output Current | 5A |
| Depth | 121.2 mm (4.77 in) |
| Width | 50 mm (1.97 in) |
| Height | 115 mm (4.53 in) |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Dimensions | 121.3 x 50 x 119.5 mm (4.78×1.97×4.70 in) |
| Mounting Type | DIN Rail Mount |
| Minimum Temperature | -10 °C (14 °F) |
| Efficiency | 80% |
| Maximum Temperature | +60 °C (140 °F) |
| MTBF | 135000h |
| Load Regulation | ±1.5% |
