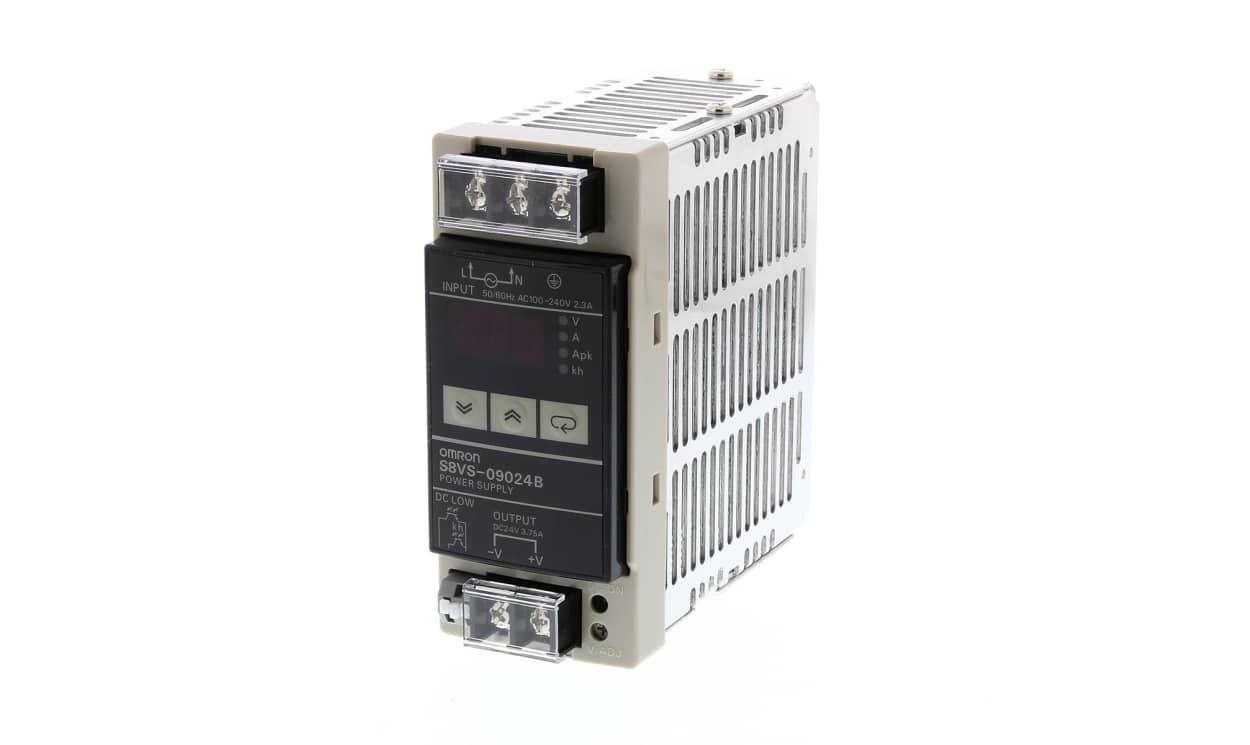

Name: Omron S8VS-09024B, S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 3.7A Output, 90W
Brand: OMRON
SKU: S8VS-09024B
Availability: OutOfStock

Omron S8VS-09024B, S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 3.7A Output, 90W

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron S8VS-09024B, S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 3.7A Output, 90W

Part Number : S8VS-09024B

Availability: Sold out

Detailed Description
Specifications
Downloads

60W to 240W S8VS Series Power Supplies

A range of switch mode power supplies from Omron with or without indication monitors and simple functions for easy system use.The units are suitable for household appliances and building automation controls which are increasingly required in commercial and residential premises.

60/90/120/180/240/480-W Models

• 90-W models have an indication monitor that conforms to UL Class 2 Output standards
• New models with screwless terminal blocks and indication monitor
• 3-digit, 7-segment status display

Note

Approvals

Part Number S8VS-09024B

The S8VS Switch mode, mounted Din Rail mounted power supply is a covered type, screw terminal block display monitor. S8VS-09024B has a power rating of 90 W and an output voltage of 24 V dc plus a rated input voltage of 100 V ac to 24 V ac. This Sinking undervoltage alarm model is natural air cooling. The S8VS-09024B does have an a total run time indication monitor.

Features and Benefits.

• Covered type power supply

• Screw terminal

• DIN Rail Mounted

• Green output indicators

• Natural air cooling

• Power rating 90 W

• Output voltage 24 V dc

• Input voltage 100 V ac to 240 V ac

• Rated output current 3.75 A

• Harmonic current emissions

• Efficiency 83% min.

• Under-voltage alarm output – open collector, 30 V dc, 50 mA,

• Sinking (NPN)

• Total run time monitor

• RoHS compliant including Lead Free construction

• Weight 490g

Safety and Storage.

Do not use an inverter output for the power supply. Mount the power supply using a DIN Rail and secure correctly ensuring limited vibration and shock resistance. Install the power supply away from contactors and other devices. Keep the power supply away from strong high frequency noise and surge.

Vibration resistance 10 Hz to 55 Hz. 0.375 mm single amplitude in each 3 directions for 2 hours.

Shock resistance 150 m/s**2 in each 6 directions 3 times.

Standards

UL 508/60950-1, CSA C22.2 No. 107.1/60950-1 EN50178 (=VDE 0160), EN 69050-1 (=VDE 0805 Teil 1)
Harmonic current emissions conform to EN61000-3-2.
Conforms to SEMI F47-0706 (when 200 V ac input is used), EMS Conforms to EN61205-3 high

Brand	Omron
Series	S8VS
Type	Switched Mode
Electrical Phase	1
Number of Outputs	1
AC or DC Input Voltage	ac
Input Voltage	85 → 264V ac
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	3.7A
Dimensions	121.3 x 50 x 119.5mm
Depth	121.2mm
Width	50mm
Height	115mm
Ripple And Noise	±2%
MTBF	135000h
Efficiency	80%
Load Regulation	±1.5%
Minimum Temperature	-10°C
Mounting Type	DIN Rail Mount
