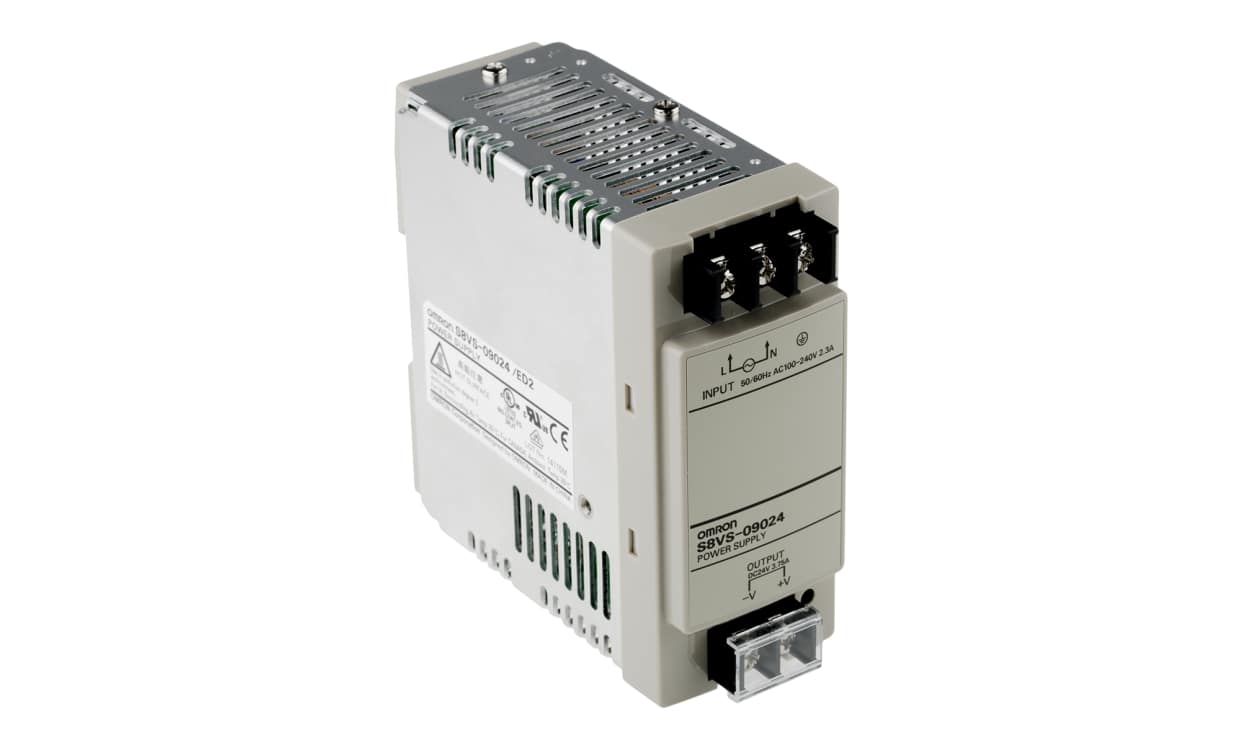

Omron S8VS-09024, S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 3.75A Output, 90W

Part Number : S8VS-09024

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron S8VS Series Power Supply, 24V DC Output Voltage, 3.75A Output Current - S8VS-09024

This power supply is a robust solution designed for industrial use, specifically tailored for automation and electrical applications. Offering a single output of 24V DC, it features a compact DIN rail mounting design that measures 120.4 x 50 x 121.3 mm. This power supply efficiently converts AC input voltage ranging from 85 to 264 V, providing a reliable energy source for various devices while ensuring a high-performance output.

Features & Benefits

• High efficiency of 84% reduces energy consumption
• Input and output voltage compatibility for versatile use
• Ripple and noise level of ±2% ensures clean power delivery
• Designed for DIN rail mounting simplifies installation in control panels

Applications

• Used with automation systems to ensure reliable power distribution
• Ideal for powering control systems in industrial machinery
• Can be used in HVAC systems for consistent energy supply
• Utilised in electronic equipment requiring stable 24V DC power

What voltage range can be input into this device?

It accepts AC input voltages from 85 to 264 V, making it suitable for various electrical systems.

How long is the expected lifespan of this power supply?

The mean time between failures (MTBF) is approximately 135,000 hours, providing long-term reliability.

What measures are in place to protect against temperature extremes?

This unit operates efficiently across a temperature range of -10°C to +60°C, ensuring performance in varying conditions.

How does load regulation impact equipment performance?

With a load regulation of ±1.5%, it maintains a consistent output voltage, minimising fluctuations that could affect connected devices.

Standards

UL 508/60950-1, CSA C22.2 No. 107.1/60950-1 EN50178 (=VDE 0160), EN 69050-1 (=VDE 0805 Teil 1)
Harmonic current emissions conform to EN61000-3-2.
Conforms to SEMI F47-0706 (when 200 V ac input is used)

Brand	Omron
Series	S8VS
Type	Switched Mode
Electrical Phase	1
Number of Outputs	1
AC or DC Input Voltage	ac
Input Voltage	85 → 264V ac
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	3.75A
Dimensions	121.3 x 50 x 119.5mm
Height	115mm
Depth	121.2mm
Width	50mm
Maximum Temperature	+60°C
Mounting Type	DIN Rail Mount
Ripple And Noise	±2%
Load Regulation	±1.5%
MTBF	135000h
Minimum Temperature	-10°C
