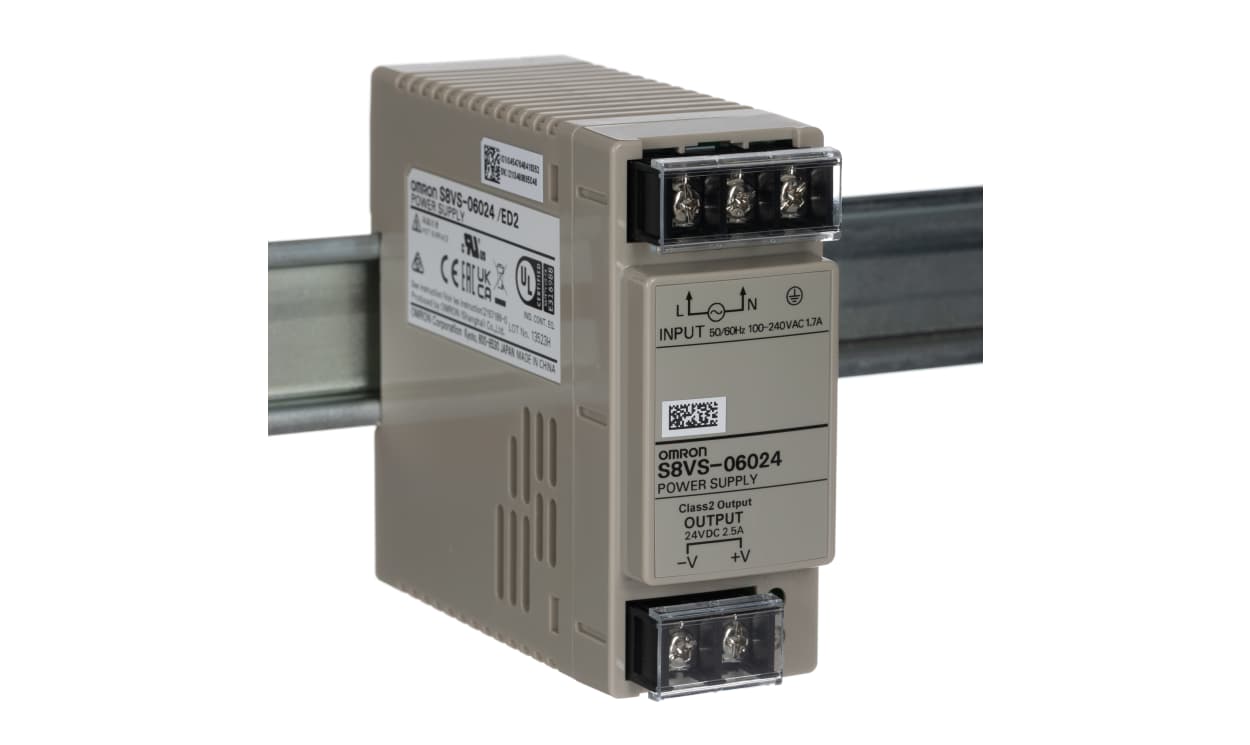

Name: Omron S8VS-06024, S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 2.5A Output, 60W
Brand: OMRON
SKU: S8VS-06024
Availability: OutOfStock

Omron S8VS-06024, S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 2.5A Output, 60W

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron S8VS-06024, S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 2.5A Output, 60W

Part Number : S8VS-06024

Availability: Sold out

Detailed Description
Specifications
Downloads

Phoenix Contact UNO-PS/1AC/24DC/90W/C2LPS Series DIN Rail Power Supply, 24V DC Output Voltage - 2902994

The Omron DIN rail power supply is designed for industrial applications. It accepts an input voltage range of 180 to 600 V AC or 254 to 848 V DC and provides a 24 to 28 V DC output.

Features & Benefits

• Wide input voltage range allows compatibility with various power sources, ensuring flexibility in industrial setups.
• Compact design for space-saving installation
• Stable 24 V DC output ensures consistent voltage for connected devices

Applications

• Suitable for use in automation systems, control cabinets, and compact control boxes
• Ideal for applications requiring a stable and efficient power supply solution

What is the input voltage range for this power supply?

The DIN Rail power supply accepts an input voltage range of 85 to 264 V AC.

Is this power supply suitable for crowded control panels?

Yes, the compact design of the power supply makes it ideal for space-saving installation in crowded control panels.

What is the output voltage provided by this power supply?

It delivers a stable 24 V DC output for connected devices.

Standards

Harmonic current emissions conform to EN61000-3-2.
Conforms to SEMI F47-0200 (when 200 V input is used)
UL 508 (Listing; Class 2 Output: Per UL1310)
UL 60950-1 (Recognition), UL63268-1
CSA C22.2 No.107.1 (cUL) (Class 2 Output: Per CSA C22.2 No. 223)
CSA C22.2 No.60950-1 (cUR)
EN 50178, EN 60950-1, EN62368-1
EAC mark, RCM mark

Brand	Omron
Series	S8VS
Type	Switched Mode
Electrical Phase	1
Number of Outputs	1
AC or DC Input Voltage	ac
Input Voltage	85 → 264V ac
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	2.5A
Dimensions	108.3 x 40 x 99.5mm
Height	95mm
Depth	108.3mm
Width	40mm
MTBF	135000h
Special Features	Overvoltage and Short Circuit Protection
Load Regulation	±1.5%
Efficiency	83%
Minimum Temperature	-25°C
Standards Met	CE
