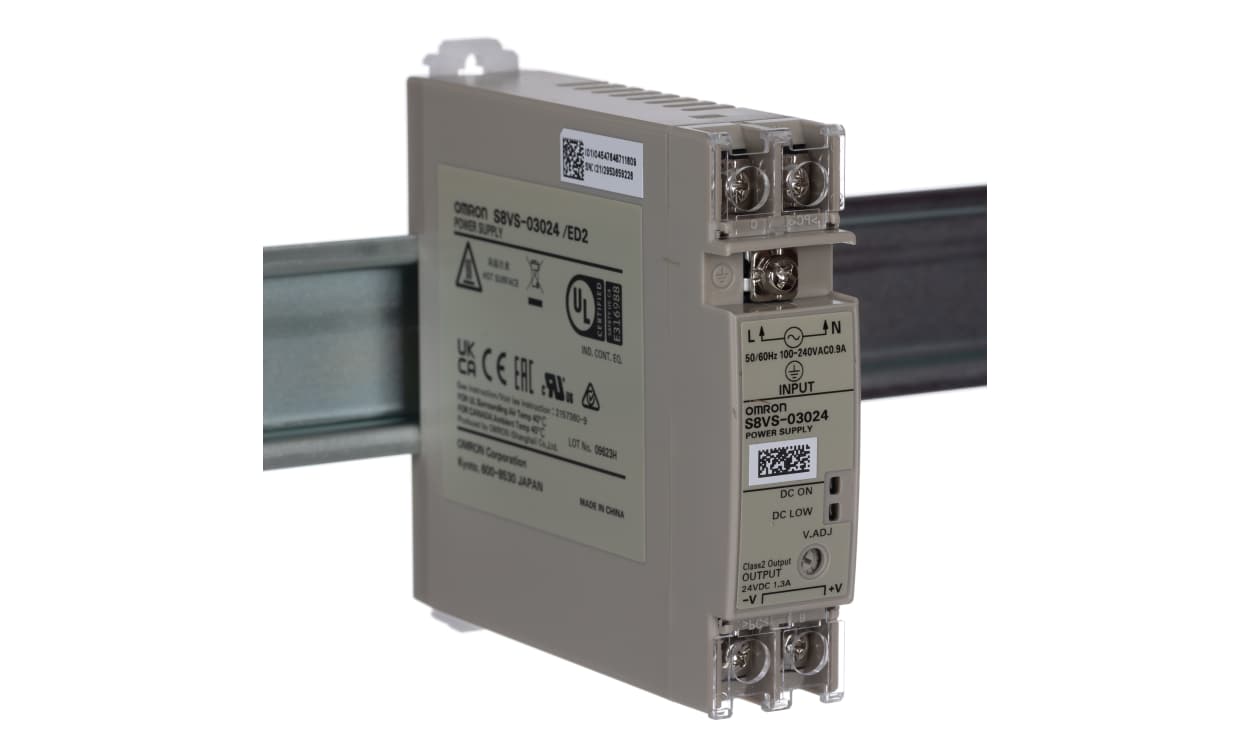

Omron S8VS-03024, S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 1.3A Output, 30W

Part Number : S8VS-03024

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron S8VS DIN Rail Power Supply, 24 V dc, 1.3A - S8VS03024

This is a compact and reliable switch mode power supply designed for industrial applications. With a power rating of 30 W, it operates on a wide input voltage range of 100 to 240 VAC. The output voltage is 24 VDC, making it suitable for various devices. Equipped with terminal blocks (screw terminals), an undervoltage alarm indicator, and harmonic current emissions control, this power supply ensures stable and efficient performance.

Features & Benefits

• UL Class 2 ensures safety and compliance
• Screw terminal facilitates secure and efficient connections
• Undervoltage alarm indicator alerts users in case of voltage drops
• Harmonic current emissions minimises interference with other equipment
• Efficiency of up to 85% efficiency at 100VAC input and 86% at 200VAC input
• Overload protection automatically resets to prevent damage
• Overvoltage protection safeguards connected devices

Applications

• Industrial automation systems
• Control panels
• Machine tools
• Robotics
• Factory automation

Can I use the inverter output for this power supply?

No, it is not recommended to use the inverter output with the S8VS03024.

What is the life expectancy of this power supply?

The S8VS03024 has a life expectancy of 10 years under standard conditions.

Is parallel operation possible with this model?

No, parallel operation is not supported. However, backup operation is feasible with external diodes.

Standards

UL, CSA, EN, VDE

Brand	Omron
Series	S8VS
Type	Switched Mode
Electrical Phase	1
Number of Outputs	1
AC or DC Input Voltage	ac
Input Voltage	85 → 264V ac
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	1.3A
Dimensions	96.4 x 22.5 x 94.6mm
Depth	96.4mm
Width	22.5mm
Height	85mm
Mounting Type	DIN Rail Mount
Output Voltage Adjustment Range	-10 → +15%
Load Regulation	±2%
Ripple And Noise	±2%
MTBF	135000h
Minimum Temperature	+25°C
