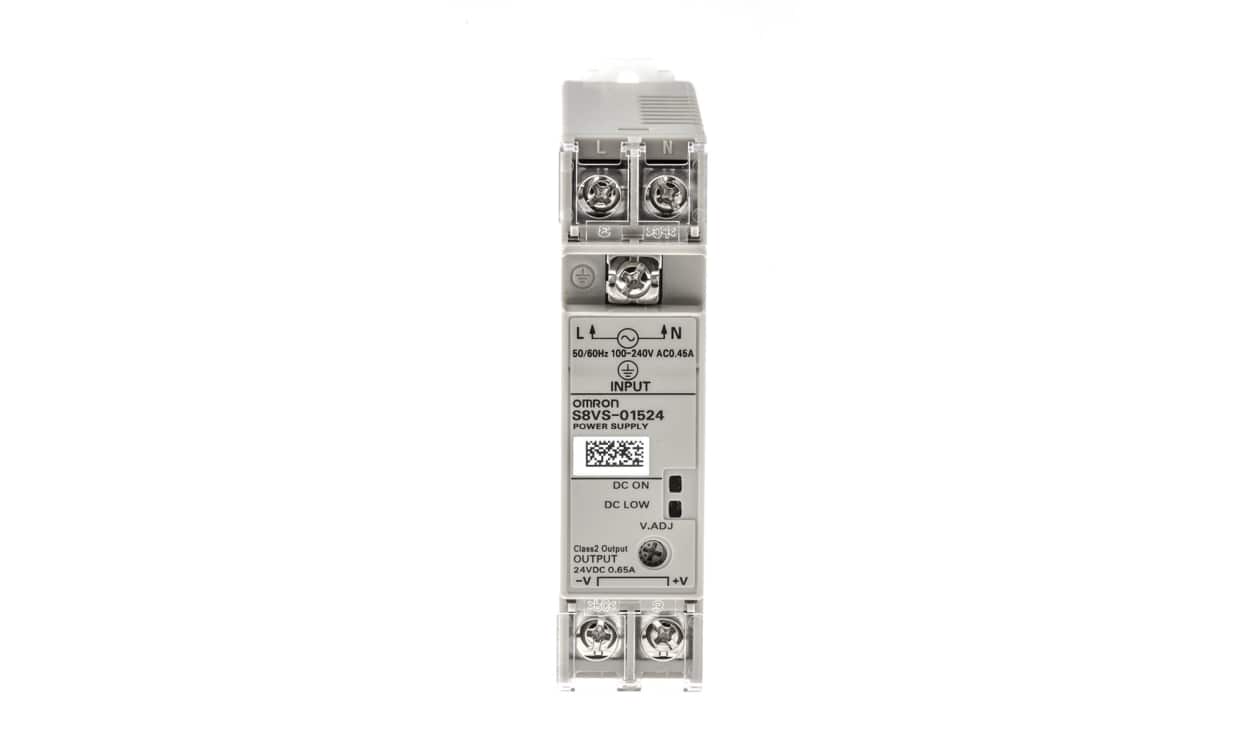

OMRON S8VS-01524 | S8VS Switched Mode DIN Rail Power Supply | 24 V DC, 650 mA, 15 W
This OMRON S8VS switched-mode DIN rail power supply, part number S8VS-01524, converts a single-phase input of 85 to 264 V AC into 24 V DC with up to 650 mA available (15 W).
- Input: 85 to 264 V AC, single-phase
- Output: 24 V DC, 650 mA, 15 W
- Efficiency 80%
- Ripple and noise ±2%
- Temperature range -25 °C to +85 °C
- Standards: CE
- Detailed Description
- Specifications
- Downloads
Omron DIN Rail Power Supply, 85V to 264V AC, Current Rating of 20A - S8VS01524
Features & Benefits
• Provides flexibility for various power sources, making it suitable for diverse applications
• Ensures reliability and detects early failures, enhancing overall performance and longevity
Applications
• Delivers stable power to PLCs
• Suitable for motors, actuators, and solenoids
What is the input voltage range for this power supply?
What protections does it offer?
Is there an indicator for DC power status?
Standards
| Brand | Omron |
| Series | S8VS |
| Type | Switched Mode |
| AC or DC Input Voltage | ac |
| Input Voltage | 85 → 264V ac |
| AC or DC Output Voltage | dc |
| Output Voltage | 24V dc |
| Output Current | 650mA |
| Depth | 96.4 mm (3.80 in) |
| Width | 22.5 mm (0.886 in) |
| Height | 85 mm (3.35 in) |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Dimensions | 96.4 x 22.5 x 94.6 mm (3.80×0.886×3.72 in) |
| Mounting Type | DIN Rail Mount |
| Minimum Temperature | -25 °C (-13 °F) |
| Efficiency | 80% |
| Maximum Temperature | +85 °C (185 °F) |
| Standards Met | CE |
| Ripple And Noise | ±2% |
