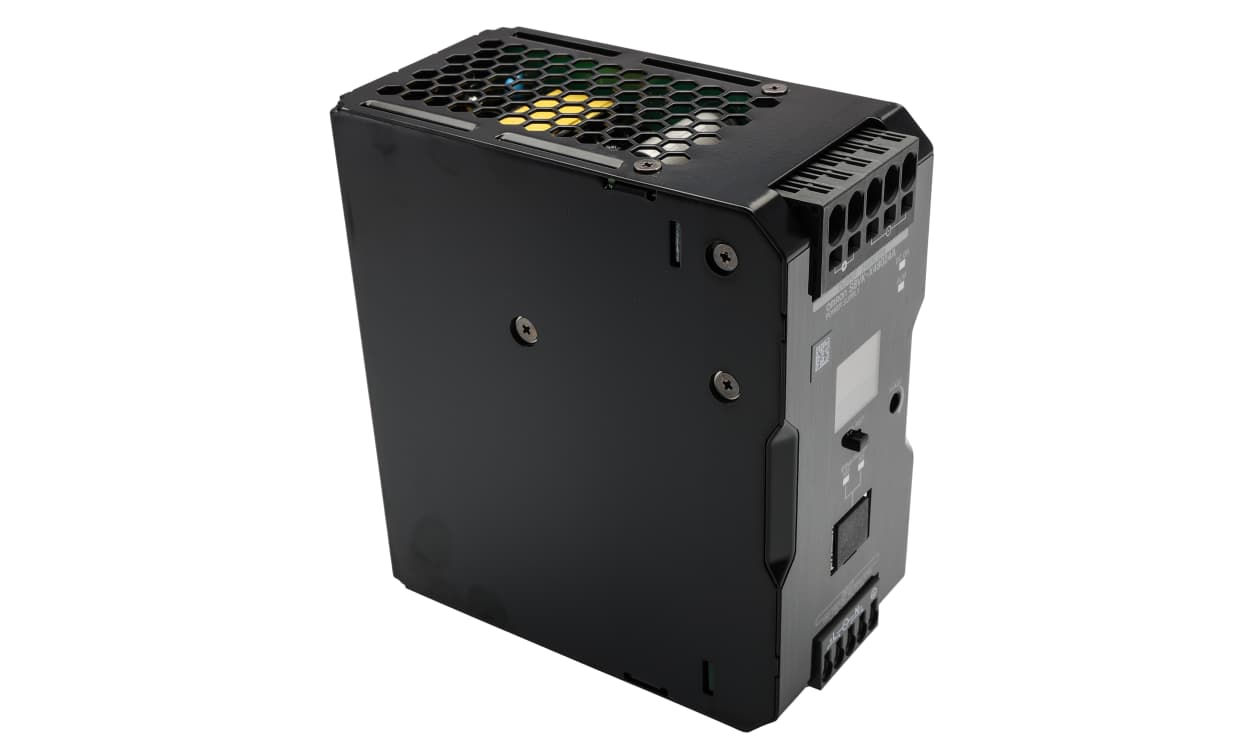

OMRON S8VK-X48024A-EIP | S8VK-V Switched Mode DIN Rail Power Supply | 24 V DC, 20 A, 480 W
Rated for 24 V DC and 20 A (480 W), the S8VK-X48024A-EIP is an S8VK-V switched-mode DIN rail power supply from OMRON that runs on a single-phase supply of 100 to 240 V AC.
- Input: 100 to 240 V AC, single-phase
- Output: 24 V DC, 20 A, 480 W
- Efficiency 94%
- Ripple and noise 130 mV p-p
- MTBF 90,000 h
- Temperature range -40 °C to +70 °C
- Detailed Description
- Specifications
- Downloads
Omron S8VK-V Series Din Rail Power Supply, 24V Output Voltage, 20A Current - S8VK-X48024A-EIP
Features & Benefits
• Overvoltage and short circuit protection enhances safety
• Wide input voltage range from 100 to 240V AC
• Output voltage adjustable between 21.6 to 28V
Applications
• Ideal for electronic devices requiring stable DC voltage
• Utilised in control panels and machinery requiring high efficiency
• Suitable for various electrical and mechanical requiring compact power supply solutions
What is the expected lifespan of this power supply?
How does this power supply maintain output stability under varying loads?
What safety features does this model include for protecting connected devices?
Can this unit operate in extreme temperatures?
Standards
| Brand | Omron |
| Series | S8VK-V |
| Type | Switched Mode |
| AC or DC Input Voltage | ac |
| Input Voltage | 100 → 240V ac |
| AC or DC Output Voltage | dc |
| Output Voltage | 24V dc |
| Output Current | 20A |
| Depth | 119 mm (4.69 in) |
| Width | 60 mm (2.36 in) |
| Height | 125 mm (4.92 in) |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Dimensions | 60 x 119.3 x 124.6 mm (2.36×4.70×4.91 in) |
| Minimum Temperature | -40 °C (-40 °F) |
| Efficiency | 94% |
| Maximum Temperature | +70 °C (158 °F) |
| Standards Met | CE, cULus, EAC, EN 61000-3-2, EN 61204-3, EN/IEC 60529, EN/IEC 61558-2-16, TUV, UL |
| MTBF | 90000h |
| Ripple And Noise | 130mV Pk-Pk |
