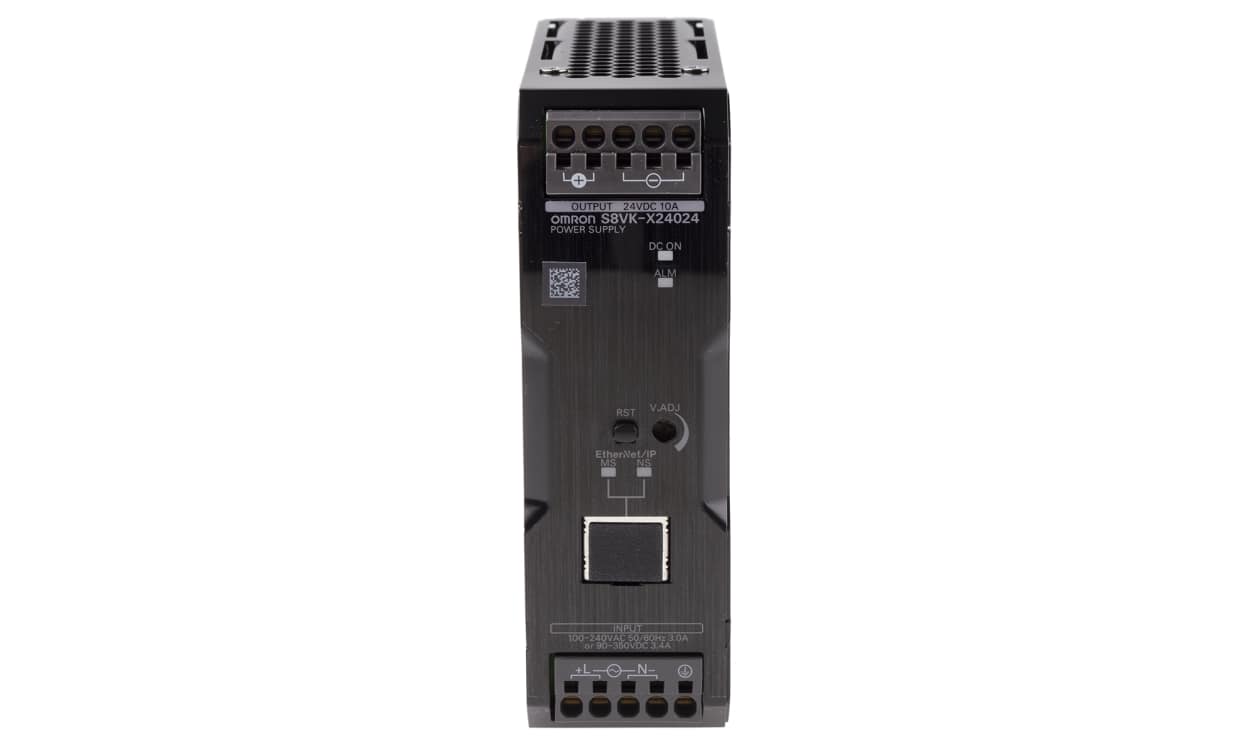

Name: Omron S8VK-X24024-EIP, S8VK Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 10A Output, 240W
Brand: OMRON
SKU: S8VK-X24024-EIP
Availability: OutOfStock

Omron S8VK-X24024-EIP, S8VK Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 10A Output, 240W

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron S8VK-X24024-EIP, S8VK Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 10A Output, 240W

Part Number : S8VK-X24024-EIP

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron S8VK Series DIN Rail Power Supply, 10A Output Current, 240W Power Rating - S8VK-X24024-EIP

This DIN rail power supply provides efficient voltage conversion for various automation systems. Its compact dimensions of 123.7x38x129.8mm allow for seamless integration, while it converts AC input voltages from 100 to 240V into a stable 24V DC output. The unit is built to function effectively in challenging environments.

Features & Benefits

• High-efficiency rating of 93% enhances energy savings
• Supports diverse applications with an output current of 10A
• Operating temperature range of -40 to +70°C ensures durability
• Load regulation of 1.5% maintains consistent performance
• Adjustable output voltage from 21.6V to 28V offers flexibility
• Long mean time between failures (MTBF) of 130,000 hours minimises maintenance requirements

Applications

• Ideal for powering sensors and actuators
• Compatible as a power supply for CNC machinery
• Works well with control panels
• Integrates into process control systems

Can it operate in extreme temperatures?

Yes, it operates effectively from -40 to +70°C.

Will it maintain output stability under load changes?

Yes, it features load regulation for consistent voltage output.

Standards

Harmonic current emissions EN 61000-3-2, EN 61204 -3 Class B, EN 55011 Class B, UL 508, ANSI/ISA 12.12.01 CSA C22.2 No. 107.1, CSA C22.2 No. 213 (cUL), UL 60950-1, UL 62368-1 OVC II, CSA C22.2 No. 60950-1, No. 62368-1 (cUR) OVC II,EN 50178 OVC III OVC II, EN 60950-1, EN 62368-1 OVC II, Pol2, EAC, RCM (EN61000-6-4), Korea Radio Waves Act (Law No. 10564), PELV, EN/IEC 61558-2-16. SEMI F47-0706.

Brand	Omron
Series	S8VK
Type	Switched Mode
Electrical Phase	1
AC or DC Input Voltage	ac
Number of Outputs	1
Input Voltage	100 → 240V ac
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	10A
Dimensions	123.7 x 38 x 129.8mm
Width	38mm
Depth	123.7mm
Height	129.8mm
Mounting Type	DIN Rail Mount
Special Features	and more are Acquired on the Network and can be Managed all at Once, Output Current, Output Voltage, Power Boost Function at 150%, Replacement Time, Status Can be Checked On-Site Using the Indication Monitor
Maximum Temperature	+70°C
Standards Met	CE, cULus, EAC, EN 61000-3-2, EN 61204-3, EN/IEC 60529, EN/IEC 61558-2-16, TUV, UL
Ripple And Noise	140mV Pk-Pk
Minimum Temperature	-40°C
