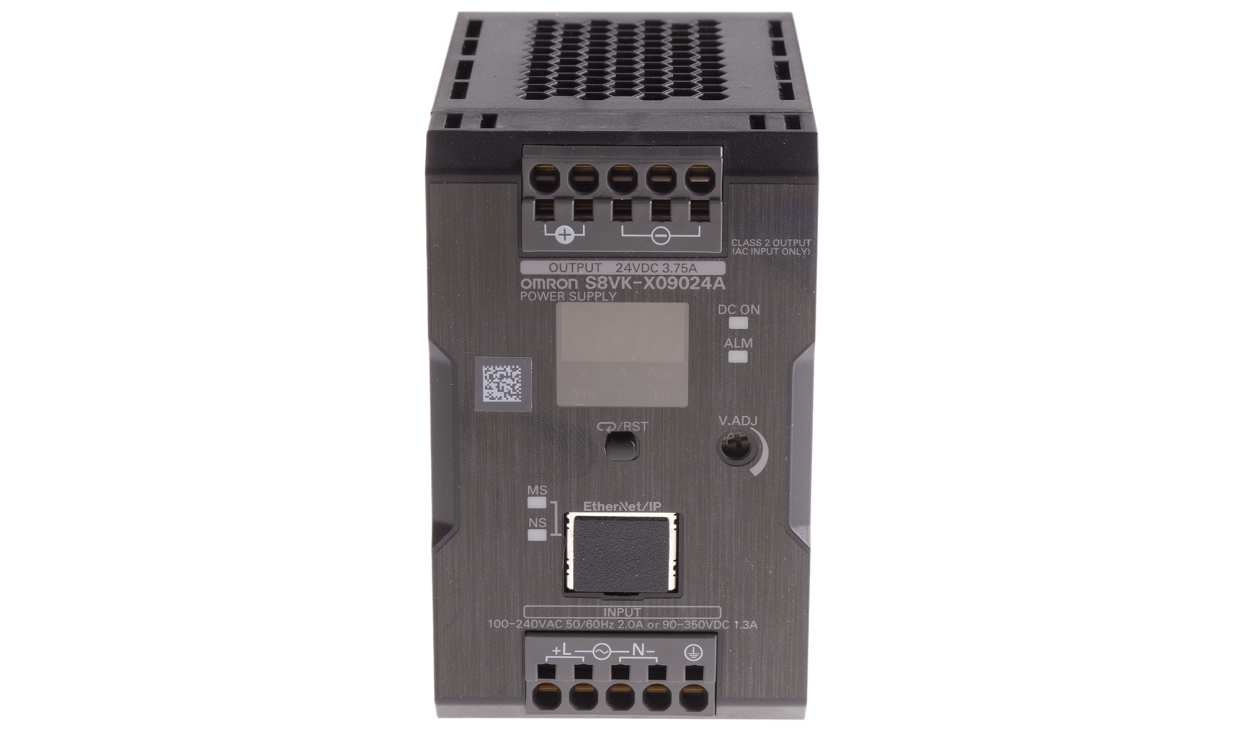

OMRON S8VK-X09024-EIP | S8VK-X Switched Mode DIN Rail Power Supply | 24 V DC, 3.75 A, 90 W
With an output of 3.75 A at 24 V DC (90 W), OMRON's S8VK-X09024-EIP is an S8VK-X switched-mode DIN rail power supply accepting single-phase input of 100 to 240 V AC. OMRON lists power boost function at 150% for the S8VK-X09024-EIP. According to the listing, the S8VK-X09024-EIP makes output voltage, output current, replacement time and other data available over the network for central management, and its status can be checked on site via the indication monitor.
- Input: 100 to 240 V AC, single-phase
- Output: 24 V DC, 3.75 A, 90 W
- Ripple and noise 300 mV p-p
- Output voltage adjustable 23 to 24.1 V
- Load regulation 1.5%
- MTBF 150,000 h
- Detailed Description
- Specifications
- Downloads
S8VK-X09024-EIP Switch Mode DIN Rail Mounted Space Saving Power Supply.
Features and Benefits.
What is a DIN Rail Mounted Power Supply?
What is A Switch Mode Power Supply?
Overload Protection.
Do not use an inverter output for the power supply.
Standards
| Brand | Omron |
| Series | S8VK-X |
| Type | Switched Mode |
| AC or DC Input Voltage | ac |
| Input Voltage | 100 → 240V ac |
| AC or DC Output Voltage | dc |
| Output Voltage | 24V dc |
| Output Current | 3.75A |
| Depth | 92 mm (3.62 in) |
| Width | 55 mm (2.17 in) |
| Height | 90 mm (3.54 in) |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Dimensions | 55 x 92.3 x 90 mm (2.17×3.63×3.54 in) |
| Mounting Type | DIN Rail Mount |
| MTBF | 150000h |
| Ripple And Noise | 300mV Pk-Pk |
| Load Regulation | 1.5% |
| Output Voltage Adjustment Range | 23 → 24.1V |
| Special Features | and more are Acquired on the Network and can be Managed all at Once, Output Current, Output Voltage, Power Boost Function at 150%, Replacement Time, Status Can be Checked On-Site Using the Indication Monitor |
