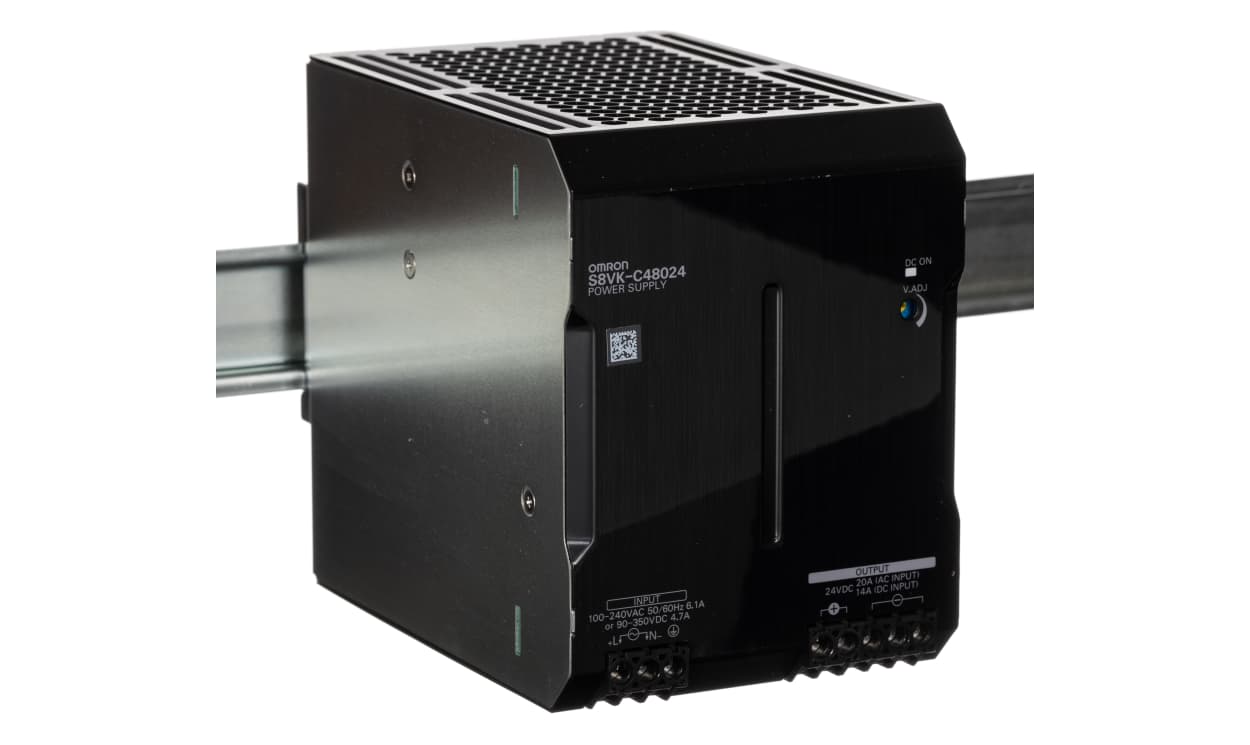

OMRON S8VK-C48024 | S8VK-C Lite Book-Type DIN Rail Power Supply | 24 V DC, 20 A, 480 W
The OMRON S8VK-C48024 is an S8VK-C Lite book-type DIN rail power supply that delivers 24 V DC at up to 20 A (480 W) from a single-phase input of 100 to 240 V AC or 90 to 350 V DC.
- Input: 100 to 240 V AC or 90 to 350 V DC, single-phase
- Output: 24 V DC, 20 A, 480 W
- Efficiency 92%
- Ripple and noise 130 mV
- Output voltage adjustable -10 to +15%
- MTBF 190,000 h
- Detailed Description
- Specifications
- Features
- Downloads
Omron S8VK-C DIN Rail Power Supply, 480W Output Power Supply - S8VK-C48024
Features & Benefits
• Compact dimensions of 125 x 95 x 150 mm for easy installation
• DIN rail mount for secure and convenient setup
• 1.6kg weight for lightweight handling
• 24V DC output voltage for compatibility with various devices
Applications
• Suitable for use in electronics manufacturing processes
Can it support both AC and DC input voltages?
Will it fit securely on a DIN rail?
Is it suitable for high-temperature environments?
Standards
cUL: CSA C22.2 No. 107.1
cUR: CSA C22.2 No.60950-1
EN/VDE: EN50178 (=VDE0160), EN60950-1 (=VDE0805)
SELV (EN60950-1/EN50178/UL60950-1)
| Brand | Omron |
| Series | S8VK-C |
| Type | Switched Mode |
| AC or DC Input Voltage | ac, dc |
| Input Voltage | 100 → 240 V ac / 90 → 350V dc |
| AC or DC Output Voltage | dc |
| Output Voltage | 24V dc |
| Output Current | 20A |
| Depth | 150 mm (5.91 in) |
| Width | 95 mm (3.74 in) |
| Height | 125 mm (4.92 in) |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Dimensions | 125 x 95 x 150 mm (4.92×3.74×5.91 in) |
| Minimum Temperature | -25 °C (-13 °F) |
| Efficiency | 92% |
| Standards Met | CE |
| MTBF | 190000h |
| Ripple And Noise | 130mV |
| Output Voltage Adjustment Range | -10 → +15% |
Book type power supply, Lite, 480 W, 24VDC, 20A, DIN rail mounting
