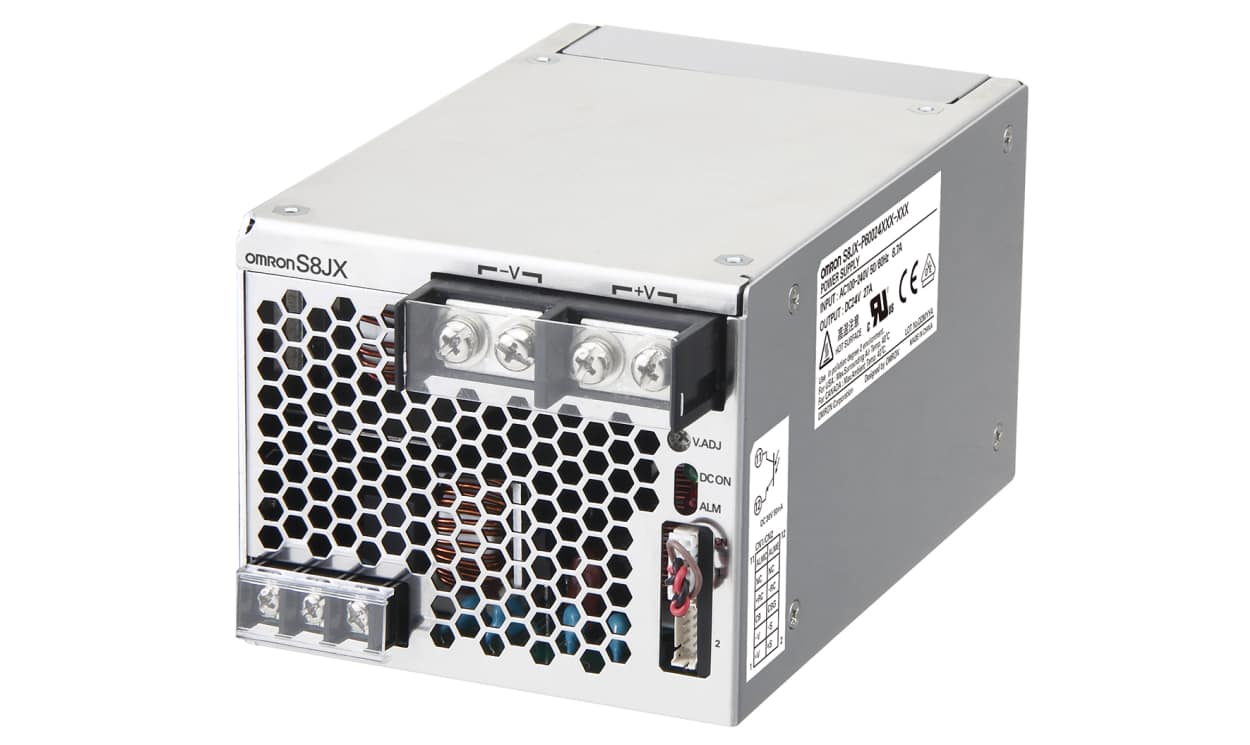

Name: Omron S8JX-P60024CD, S8JX-P Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 31A Output, 600W
Brand: OMRON
SKU: S8JX-P60024CD
Availability: OutOfStock

Omron S8JX-P60024CD, S8JX-P Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 31A Output, 600W

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron S8JX-P60024CD, S8JX-P Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 31A Output, 600W

Part Number : S8JX-P60024CD

Availability: Sold out

Detailed Description
Specifications
Downloads

Covered type, with fan, 100 to 240 VAC, Power rating 600 W, Output: 24 V, Terminal blocks (Screw terminal), Remote control function, Parallel operation, Harmonic current emissions

Limits for harmonic current emissions
Applicable to input free voltage: 100 to 240 VAC
Extended DC input voltage range: 80 to 370 VDC
DC input is not subject to EC directives and safety standards.
Easy mounting: Front-mounting bracket type and DIN-Rail mounting type are included as standard with the product. Screw-mount at the top. (except 300-/600-W models)
Safety standards
High capacity application-covered functions are included as standard with the product.
Alarm detection function, Remote control function, Remote sensing function S8JX-G Series

Brand	Omron
Series	S8JX-P
Type	Switched Mode
Electrical Phase	1
AC or DC Input Voltage	ac
Number of Outputs	1
Input Voltage	100 → 240V ac
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	31A
Dimensions	116.6 x 248.7 x 122.8mm
Depth	249mm
Width	116.6mm
Height	123mm
Load Regulation	0.8%
Special Features	Limits for Harmonic Current Emissions, Conforms to EMI EN55011 Class B, Alarm Detection Function, Remote Control Function, Remote Sensing Function
MTBF	150000h
Maximum Temperature	+80°C
Minimum Temperature	-20°C
Efficiency	78 (Typ.)%
