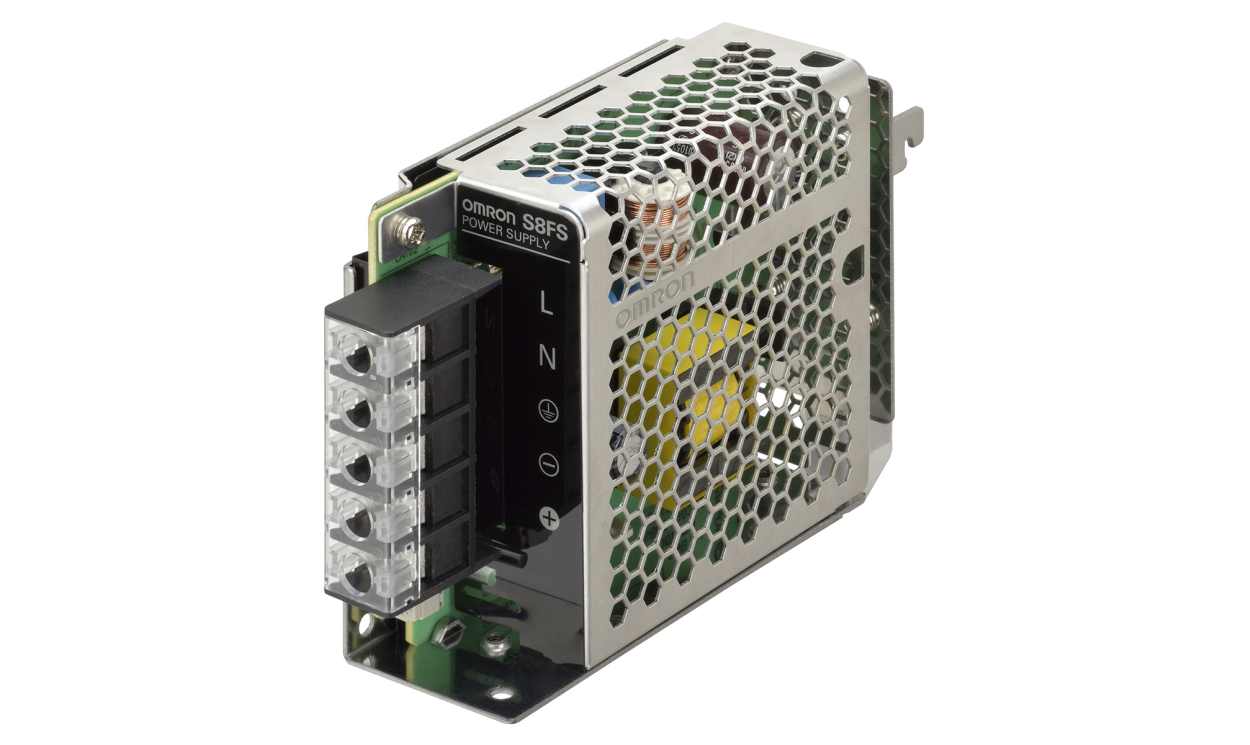

OMRON S8FS-G15012CD | S8FS-G Switched Mode DIN Rail Power Supply | 12 V DC, 13 A, 150 W
With an output of 13 A at 12 V DC (150 W), OMRON's S8FS-G15012CD is an S8FS-G switched-mode DIN rail power supply accepting single-phase input of 100 to 240 V AC.
- Input: 100 to 240 V AC, single-phase
- Output: 12 V DC, 13 A, 150 W
- Efficiency 87%
- Output voltage adjustable -10 to +15%
- Temperature range -20 °C to +70 °C
- Width 197 mm, height 39.2 mm, depth 97 mm
- Detailed Description
- Specifications
- Downloads
S8FS-G DIN Rail Switch Mode Power Supply
Part Number S8FS-G15012CD
Features and Benefits.
Safety and Storage.
Standards
UL 508 (Listing, excluding models with connector option or remote control option)
UL 60950-1, UL 62368-1 (Recognition, OVCII 3,000 m, Pol2)
CSA C22.2 No.107.1 (excluding models with connector option or remote control option)
CSA C22.2 No.60950-1, No.62368-1 (excluding models with connector option remote control option)
EN 50178 (OVCIII 2,000 m, OVCII 2,000 m and 3,000 m, Pol2)
EN/IEC 60950-1, EN/IEC 62368-1 (OVCII 3,000 m, Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
SEMI conforms to F47-0706 (200 VAC input)
| Brand | Omron |
| Series | S8FS-G |
| Type | Switched Mode |
| AC or DC Input Voltage | ac |
| Input Voltage | 100 → 240V ac |
| AC or DC Output Voltage | dc |
| Output Voltage | 12V dc |
| Output Current | 13A |
| Depth | 97 mm (3.82 in) |
| Width | 197 mm (7.76 in) |
| Height | 39 mm (1.54 in) |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Dimensions | 197 x 97 x 39.2 mm (7.76×3.82×1.54 in) |
| Mounting Type | DIN Rail Mount |
| Minimum Temperature | -20 °C (-4 °F) |
| Efficiency | 87% |
| Maximum Temperature | +70 °C (158 °F) |
| Standards Met | CE, CSA C22.2 No. 60950-1, CSA C22.2 No.107.1, cULus Recognised, EN 50178, EN 55011 Class B, EN 60950-1, EN 61000-3-2, EN 61204-3, EN 61204-3 Class B, EN/IEC 61558-2-16, TUV, UL, UL 508, UL 60950-1 |
| Output Voltage Adjustment Range | -10 → +15% |
