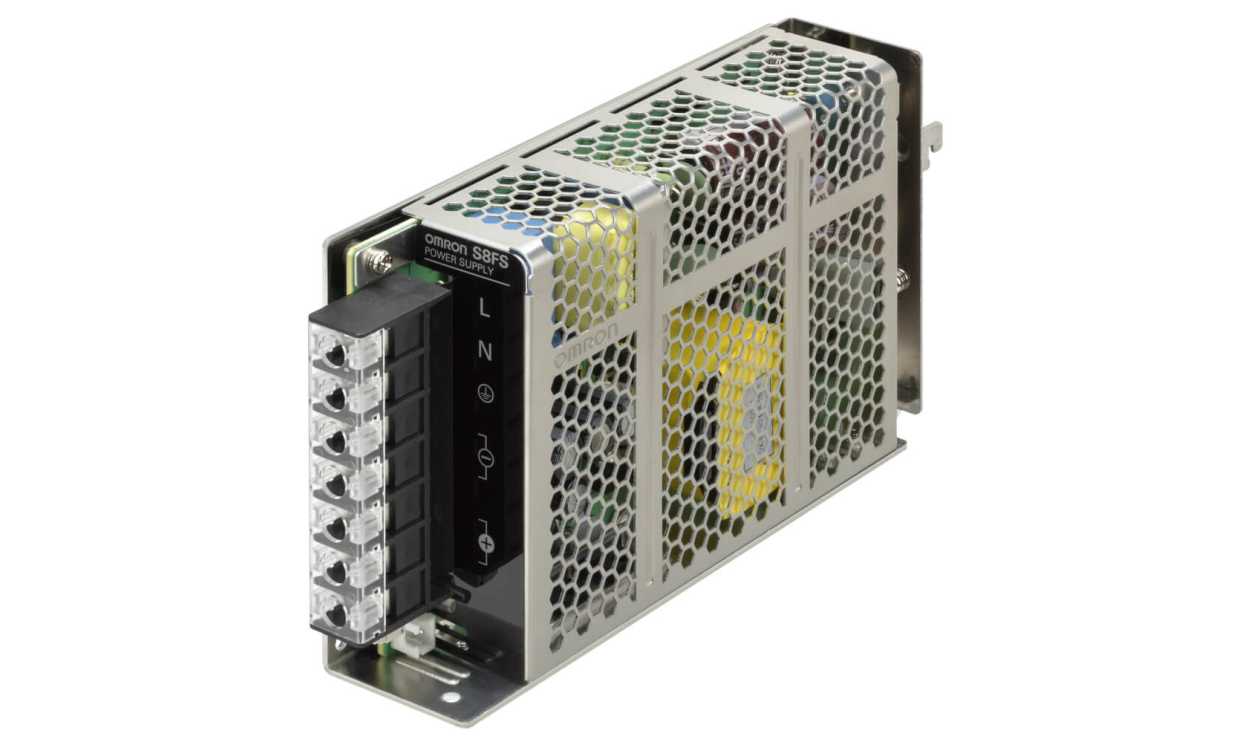

Name: Omron S8FS-G15005CD, S8FS DIN Rail Power Supply, 100 → 240V ac ac Input, 5V dc dc Output, 21A Output, 150W
Brand: OMRON
SKU: S8FS-G15005CD
Availability: OutOfStock

Omron S8FS-G15005CD, S8FS DIN Rail Power Supply, 100 → 240V ac ac Input, 5V dc dc Output, 21A Output, 150W

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron S8FS-G15005CD, S8FS DIN Rail Power Supply, 100 → 240V ac ac Input, 5V dc dc Output, 21A Output, 150W

Part Number : S8FS-G15005CD

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron S8FS Series Power Supply, 21A Output Current, 150W Power Rating - S8FS-G15005CD

This power supply offers versatility for various industrial and automation applications. With an input voltage range of 100240V AC and a compact form factor of 159x97x38mm, it ensures efficient power conversion. The device outputs a stable 5V DC, catering to diverse electronic needs.

Features & Benefits

• 150W power rating ensures effective performance
• 21A output current accommodates high-demand devices
• DIN rail mount facilitates straightforward installation in control cabinets
• Efficiency of 81% lowers energy consumption
• Load regulation of 1% ensures stable output voltage

Applications

• Suitable for automation tasks requiring consistent power
• Powers control systems in machinery
• Ideal for electronic devices needing 5V DC input
• Employed in industrial equipment for enhanced reliability

Can it operate in harsh temperature environments?

Yes, it functions effectively between -20°C and +70°C.

Will it work with different AC input voltages?

It accepts input voltages from 100V to 240V AC.

Is it easy to install in existing systems?

Yes, it features a DIN rail mount for simple integration.

Standards

EN 61000-3-2
UL 508 (Listing, excluding models with connector option or remote control option)
UL 60950-1, UL 62368-1 (Recognition, OVCII 3,000 m, Pol2)
CSA C22.2 No.107.1 (excluding models with connector option or remote control option)
CSA C22.2 No.60950-1, No.62368-1 (excluding models with connector option remote control option)
EN 50178 (OVCIII 2,000 m, OVCII 2,000 m and 3,000 m, Pol2)
EN/IEC 60950-1, EN/IEC 62368-1 (OVCII 3,000 m, Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
SEMI conforms to F47-0706 (200 VAC input)

Brand	Omron
Series	S8FS
AC Input Voltage	100 → 240V ac
Type	Power Supply
Electrical Phase	1
Number of Outputs	1
AC or DC Input Voltage	ac
Input Voltage	100 → 240V ac
AC or DC Output Voltage	dc
Output Voltage	5V dc
Output Current	21A
Dimensions	159 x 97 x 38mm
Height	38mm
Width	97mm
Depth	159mm
Load Regulation	1%
Maximum Temperature	+70°C
Standards Met	CE, CSA C22.2 No. 60950-1, CSA C22.2 No.107.1, cULus Recognised, EN 50178, EN 55011 Class B, EN 60950-1, EN 61000-3-2, EN 61204-3, EN 61204-3 Class B, EN/IEC 61558-2-16, TUV, UL, UL 508, UL 60950-1
Minimum Temperature	-20°C
Output Voltage Adjustment Range	-10 → +15%

Omron S8FS-G15005CD, S8FS DIN Rail Power Supply, 100 → 240V ac ac Input, 5V dc dc Output, 21A Output, 150W

DOWNLOAD CATALOG

S8FS-G15005CD S8FS-G Datasheet 0900766b8168df34
