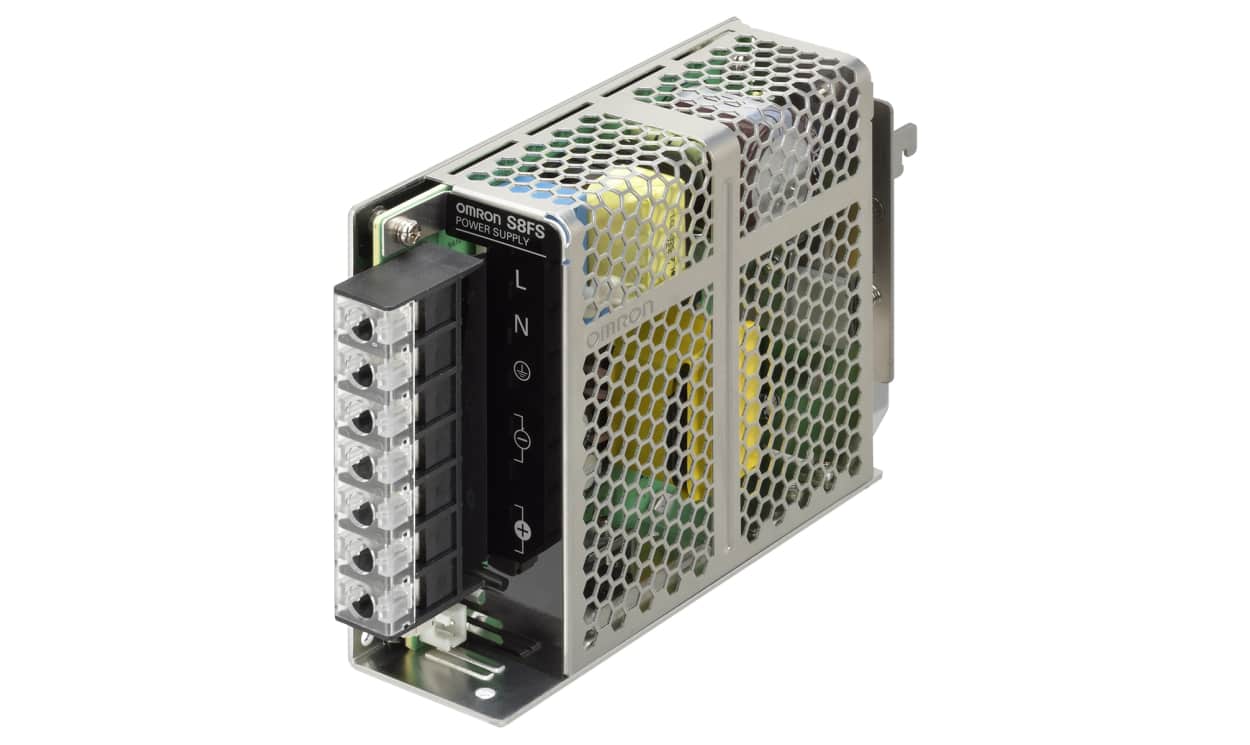

OMRON S8FS-G10005CD | S8FS-G Switched Mode Power Supply | 5 V DC, 16 A, 100 to 240 V AC In
This OMRON S8FS-G switched-mode power supply, part number S8FS-G10005CD, converts a single-phase input of 100 to 240 V AC into 5 V DC with up to 16 A available.
- Input: 100 to 240 V AC, single-phase
- Output: 5 V DC, 16 A
- Ripple and noise 70 mV p-p
- Output voltage adjustable -10 to +15%
- Load regulation 1%
- MTBF 135,000 h
- Detailed Description
- Specifications
- Downloads
Omron S8FS-G Series Power Supply, 5V DC Output Voltage, 100W Power Rating - S8FS-G10005CD
Features & Benefits
• Achieves up to 81% efficiency, helping to reduce energy use
• Offers an adjustable output voltage range of -10 to +15% for adaptability
• Features load regulation of 1% for consistent output quality
Applications
• Commonly used in electronic testing and measurement equipment
• Employed in telecommunications equipment and network devices
What is the temperature range for optimal operation?
How do I install this power supply?
What output current can I expect?
Standards
UL 508 (Listing, excluding models with connector option or remote control option)
UL 60950-1, UL 62368-1 (Recognition, OVCII 3,000 m, Pol2)
CSA C22.2 No.107.1 (excluding models with connector option or remote control option)
CSA C22.2 No.60950-1, No.62368-1 (excluding models with connector option remote control option)
EN 50178 (OVCIII 2,000 m, OVCII 2,000 m and 3,000 m, Pol2)
EN/IEC 60950-1, EN/IEC 62368-1 (OVCII 3,000 m, Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
SEMI conforms to F47-0706 (200 VAC input)
| Brand | Omron |
| Series | S8FS-G |
| Type | Switched Mode |
| AC or DC Input Voltage | ac |
| Input Voltage | 100 → 240V ac |
| AC or DC Output Voltage | dc |
| Output Voltage | 5V dc |
| Output Current | 16A |
| Depth | 97 mm (3.82 in) |
| Width | 167 mm (6.57 in) |
| Height | 39 mm (1.54 in) |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Dimensions | 167 x 97 x 39.2 mm (6.57×3.82×1.54 in) |
| Standards Met | CE, CSA C22.2 No. 60950-1, CSA C22.2 No.107.1, cULus Recognised, EN 50178, EN 55011 Class B, EN 60950-1, EN 61000-3-2, EN 61204-3, EN 61204-3 Class B, EN/IEC 61558-2-16, TUV, UL, UL 508, UL 60950-1 |
| MTBF | 135000h |
| Ripple And Noise | 70mV Pk-Pk |
| Load Regulation | 1% |
| Output Voltage Adjustment Range | -10 → +15% |
| AC Input Voltage | 100 → 240V ac |
