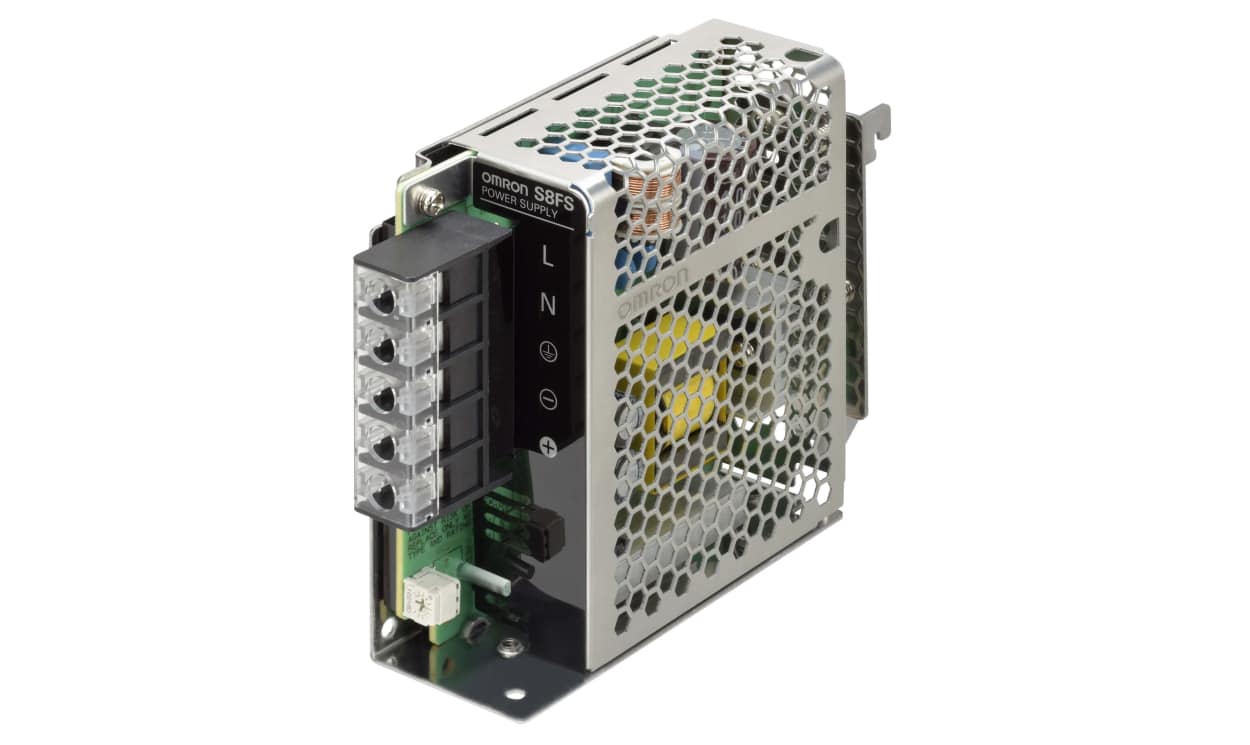

Name: Omron S8FS-G05024CD, S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 2.2A Output, 50W
Brand: OMRON
SKU: S8FS-G05024CD
Availability: OutOfStock

Omron S8FS-G05024CD, S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 2.2A Output, 50W

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron S8FS-G05024CD, S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 2.2A Output, 50W

Part Number : S8FS-G05024CD

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron S8FS-G Series DIN Rail Power Supply, 100 to 240V AC Input Voltage, 24V DC Output Voltage - S8FS-G05024CD

This DIN rail power supply delivers a dependable and effective power source for a variety of applications within automation and industrial environments. Its robust performance and compact design make it suitable for powering equipment that requires a steady and precise 24V DC output. The unit is particularly effective in environments with fluctuating input voltages, ensuring reliable operation.

Features & Benefits

• 89% operational efficiency lowers energy costs
• Input range of 100 to 240V AC for international use
• Single output channel simplifies circuit design
• Adjustable output voltage from -10% to +15% provides flexibility
• Complies with multiple international safety standards

Applications

• Powers control systems in automation settings
• Ideal for industrial equipment requiring stable voltage
• Suitable for energy-efficient with limited space
• Utilised in telecommunications for reliable power supply
• Applied in machinery needing a compact power source

What range of input voltages can it accept?

It accepts input voltages from 100 to 240V AC, making it appropriate for various applications globally.

Can it be adjusted for different output requirements?

Yes, the output voltage can be adjusted from -10% to +15%, allowing for specific fine-tuning.

What is the operating temperature range for this device?

It operates effectively within a temperature range of -20°C to +70°C, ensuring performance in a variety of environments.

How long can I expect it to last under normal conditions?

With a mean time between failures (MTBF) of 135,000 hours, it provides long-lasting performance in industrial applications.

Is this product suitable for outdoor use?

This power supply is designed for indoor applications

suitable housing should be considered for outdoor use to protect it from environmental factors.

Standards

EN 61000-3-2
UL 508 (Listing, excluding models with connector option)
UL 60950-1, UL 62368-1 (Recognition, OVCII 3,000 m, Pol2)
CSA C22.2 No.107.1 (excluding models with connector option)
CSA C22.2 No.60950-1, No.62368-1 (excluding models with connector option)
EN 50178 (OVCIII 2,000 m, OVCII 2,000 m and 3,000 m, Pol2)
EN/IEC 60950-1, EN/IEC 62368-1 (OVCII 3,000 m, Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
SEMI conforms to F47-0706 (200 VAC input)

Brand	Omron
Series	S8FS-G
DC Input Voltage	370V dc
Type	Switched Mode
AC Input Voltage	240V ac
Electrical Phase	1
AC or DC Input Voltage	ac
Number of Outputs	1
Input Voltage	100 → 240V ac
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	2.2A
Dimensions	137 x 105.2 x 37.2mm
Height	37mm
Width	137mm
Depth	105mm
Mounting Type	DIN Rail Mount
Efficiency	89%
Minimum Temperature	-20°C
Output Voltage Adjustment Range	-10 → +15%

Omron S8FS-G05024CD, S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 2.2A Output, 50W

DOWNLOAD CATALOG

S8FS-G05024CD S8FS-G Datasheet 0900766b8168df30

S8FS-G05024CD Brochure - Switch Mode Power Supplies A700000012099990

S8FS-G05024CD Catalogue - The Choice s Clear A700000012100012
