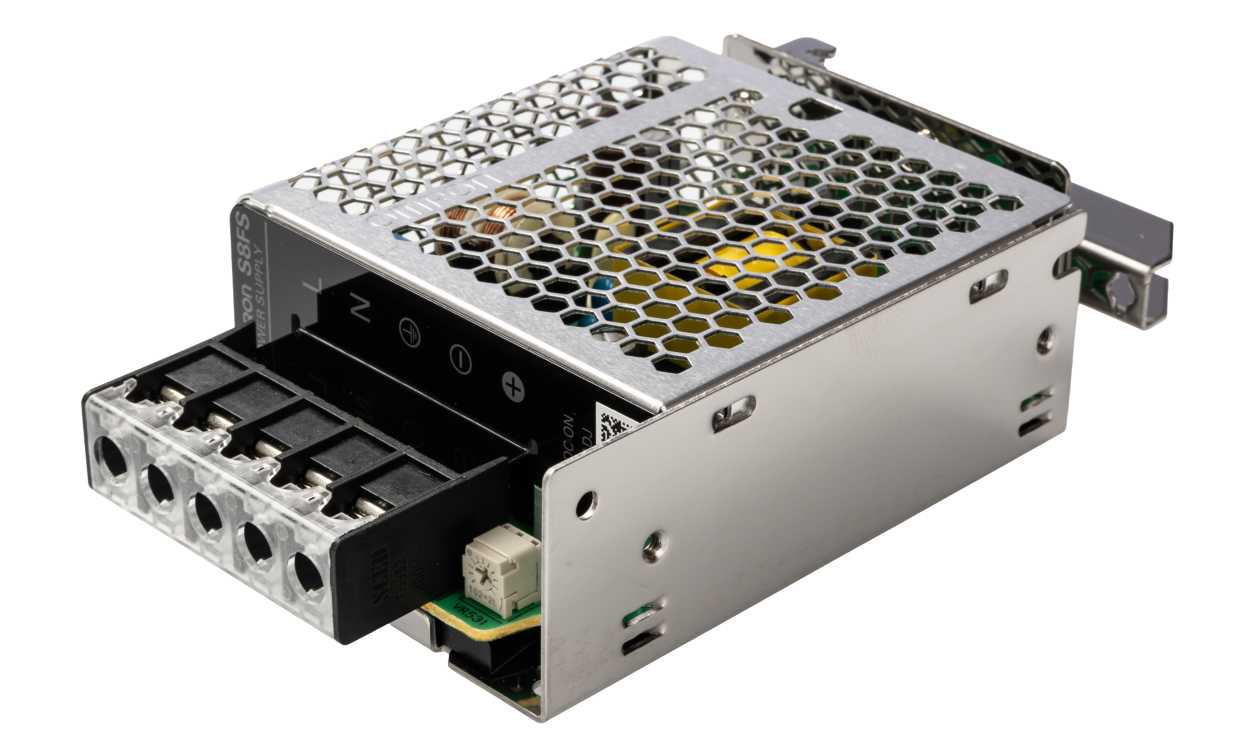

Name: Omron S8FS-G01524CD, S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 650mA Output, 15W
Brand: OMRON
SKU: S8FS-G01524CD
Availability: OutOfStock

Omron S8FS-G01524CD, S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 650mA Output, 15W

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron S8FS-G01524CD, S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 650mA Output, 15W

Part Number : S8FS-G01524CD

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron S8FS-G Series DIN Rail Power Supply, 100 to 240V AC Input Voltage, 24V DC Output Voltage - S8FS-G01524CD

This DIN rail power supply provides a dependable solution for converting AC to DC power. Utilising switched mode technology, it achieves efficient energy conversion while adhering to stringent compliance standards. This power supply is crucial for automation and control systems, ensuring consistent operation in diverse environments.

Features & Benefits

• Input voltage range of 100 to 240V AC offers flexibility
• Stable output of 24V DC with a maximum current of 650 mA
• Efficiency of 86% reduces energy loss
• Compact design enables straightforward DIN rail mounting

Applications

• Utilised in industrial automation systems for effective power distribution
• Suitable for powering electronic circuits in mechanical equipment
• Employed in robotics where space and efficiency are important
• Used in telecommunications for a steady energy supply

What input voltage range is compatible with this power supply?

It supports an input voltage range of 100 to 240V AC.

How does the efficiency of this power supply affect energy costs?

An efficiency of 86% minimises energy losses, resulting in lower costs.

Is it suitable for use in high-temperature environments?

Yes, it can operate in environments up to +70°C, making it versatile.

Can it be used in parallel with other power supplies?

Not recommended without specific configuration

consult guidelines for such setups.

What is the typical lifespan of this product?

It has a mean time between failures (MTBF) of approximately 135,000 hours.

Standards

EN 61000-3-2
UL 508 (Listing, excluding models with connector option)
UL 60950-1, UL 62368-1 (Recognition, OVCII 3,000 m, Pol2)
CSA C22.2 No.107.1 (excluding models with connector option)
CSA C22.2 No.60950-1, No.62368-1 (excluding models with connector option)
EN 50178 (OVCIII 2,000 m, OVCII 2,000 m and 3,000 m, Pol2)
EN/IEC 60950-1, EN/IEC 62368-1 (OVCII 3,000 m, Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
SEMI conforms to F47-0706 (200 VAC input)

Brand	Omron
Series	S8FS-G
DC Input Voltage	370V dc
Type	Switched Mode
AC Input Voltage	240V ac
Electrical Phase	1
AC or DC Input Voltage	ac
Number of Outputs	1
Input Voltage	100 → 240V ac
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	650mA
Dimensions	137 x 88.2 x 36.2mm
Height	36mm
Depth	88mm
Width	137mm
Maximum Temperature	+70°C
Load Regulation	1%
MTBF	135000h
Ripple And Noise	60mV Pk-Pk
