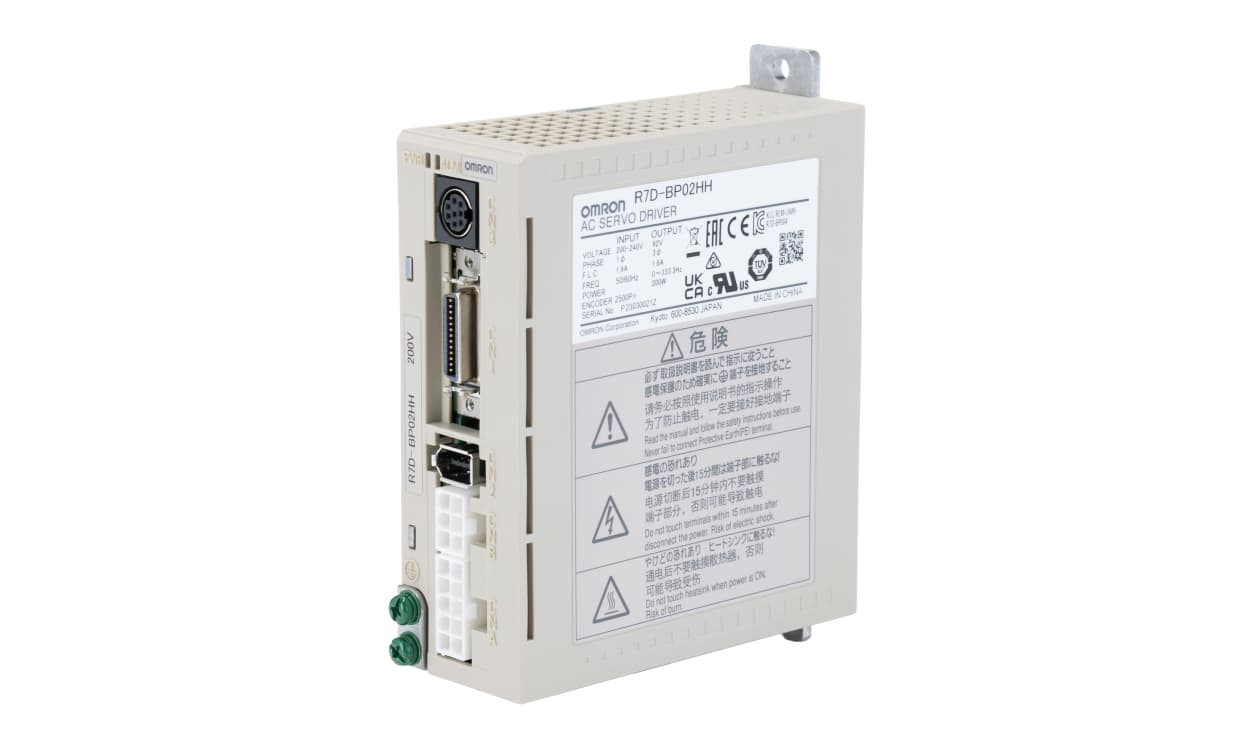

Name: Omron R7D-BP02HH, 200 W Servo Drive, 230 V ac, 1 Phase, 4.9 A, Pulse Function, 230 V ac
Brand: OMRON
SKU: R7D-BP02HH
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron R7D-BP02HH, 200 W Servo Drive, 230 V ac, 1 Phase, 4.9 A, Pulse Function, 230 V ac

Part Number : R7D-BP02HH

Availability: Sold out

Detailed Description
Specifications

Omron Servo Drive, 230V AC Voltage, 4.9A Current - R7D-BP02HH

This servo drive is a vital component for automation systems, offering precision control in various applications. With a compact design measuring 40mm in length, 110mm in width, and 140mm in depth, it operates efficiently at 230V AC and a current rating of 4.9A. The performance characteristics make it suitable for industries requiring steady and reliable operation.

Features & Benefits

• On-line auto-tuning simplifies initial setup and optimisation
• Ultra-compact footprint enhances installation flexibility
• Two adjustable torque limits cater to specific load requirements
• Adaptive filters effectively reduce vibration and resonance interference
• Configuration through CX Drive software streamlines commissioning

Applications

• Suitable for precise motion control in robotic systems
• Integral in packaging and material handling
• Utilised in CNC machines for accurate machining operations
• Compatible with various servo motors for enhanced performance

How does the pulse control feature enhance performance in automation?

The pulse control feature allows for precise positioning and speed control, making it ideal for applications that require high accuracy and repeatability in motion tasks.

What are the benefits of using a servo drive with a wide temperature range?

Operating effectively from 0 to +55 °C ensures reliability in diverse environments, enabling consistent performance in various industrial settings without compromising operation.

Can this drive be used with different types of servo motors?

Yes, it is designed to be compatible with various servo motors, allowing users to tailor their systems according to specific operational needs and performance demands.

Omron Junma

Junma is a servo drive and motor series designed to offer simplicity and performance in a compact format. The Junma range is ideal for many application areas where servo is currently used, and additionally can be used to replace stepper drives. Junma requires no tuning, and there are no user parameters. The in-built advanced technology within the drive, coupled with the fast servo loop times, ensures user knowledge requirements are minimised. Junma servo drives are available in 4 models; 100, 200, 400 and 750W motors. The Junma servo series is ideal for use with most controllers with suitable pulse outputs, for example the Omron CP1H and CJ1 series PLC's.,Typical applications include labelling, insertion, indexing, printing and many other point to point uses.

Brand	Omron
Phase	1
Control Function	Pulse
Supply Voltage	230 V ac
Current Rating	4.9 A
Voltage Rating	230 V ac
Power Rating	200 W
Overall Length	40mm
Overall Width	110mm
Overall Depth	140mm
Minimum Operating Temperature	0°C
Maximum Operating Temperature	+55°C
