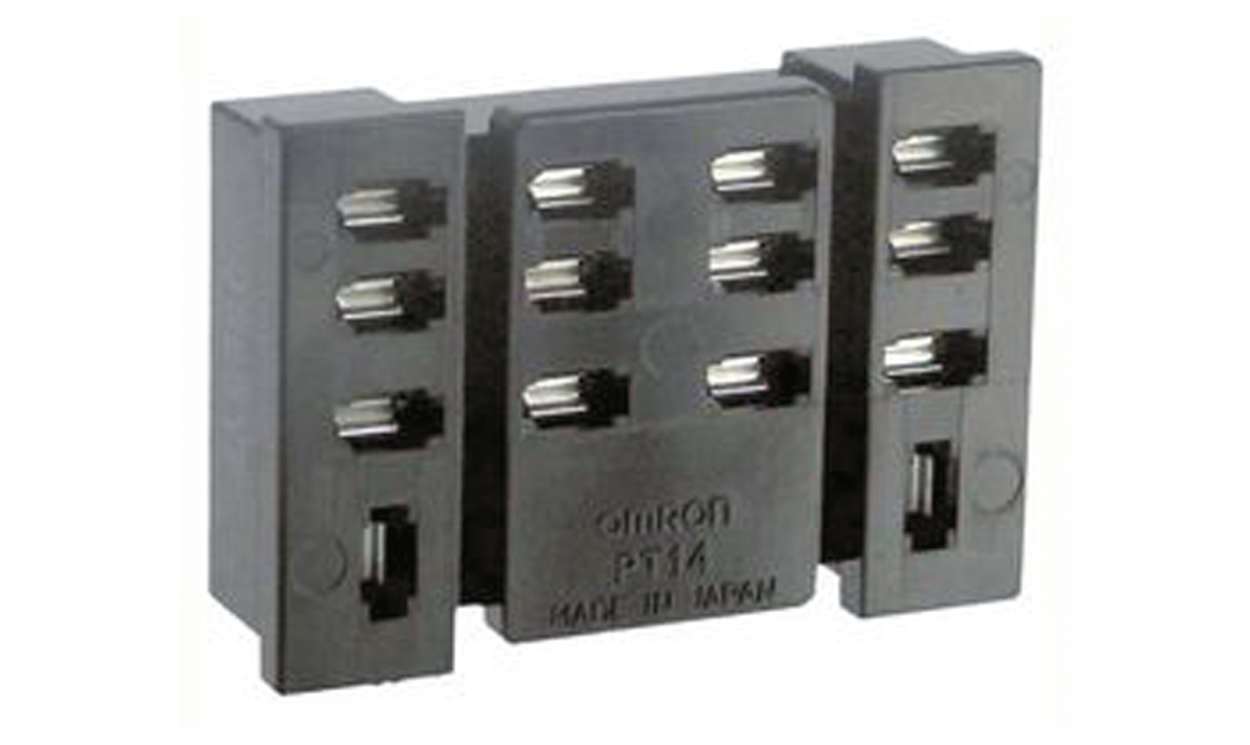

OMRON PT14-0 | PCB Mount Relay Socket | 14 Pin, PCB Pin Terminals, 250V ac

Name: OMRON PT14-0 | PCB Mount Relay Socket | 14 Pin, PCB Pin Terminals, 250V ac
Brand: OMRON
SKU: PT14-0
Availability: OutOfStock

Part Number : PT14-0

The OMRON PT14-0 is a 14-pin PCB mount relay socket in the MKS series with PCB pin terminals, a 15A current rating and a 250V ac voltage rating. The PT14-0 is listed for use with LY Series Relay.

Number of pins: 14
Mounting type: PCB Mount
Termination: PCB Pin
Current rating: 15A
Voltage: 250V ac
Series: MKS

Availability: in stock

Detailed Description
Specifications
Downloads

LY Series

Withstand voltage 2000V coil to contact
Arc barriers to prevent flash-over between adjacent poles
Relay clips for DIN types available separately
Contact resistance: 50mΩ
Isolation coil to contact: 12kV
Operating temperature range: -25 to +55°C
Switching Voltage: 110Vac; 24Vdc
Contact material: AgCdO
Dimensions: H42.4mm x W28mm x D41.5mm

Approvals

VDE, UL, CSA, TUV

Omron Series PT Relay Socket, 250V Voltage, 15A Current Rating - PT14-0

This relay socket is designed to facilitate seamless connections in electronic applications. Ideal for use with LY Series relays, this PCB mount relay accessory provides reliable functionality. With a current rating of 15A and a voltage capacity of 250V AC, it supports robust performance. Incorporating a PCB pin termination type, it ensures simple integration into various circuit designs, making it a valuable component for your projects.

Features & Benefits

• Accommodates up to 14 contacts for versatile connections
• High voltage capability of 250V AC supports diverse applications
• 15A current rating ensures reliable performance under load
• PCB mount design allows easy installation on printed circuit boards
• Optimised for use with LY Series relays for enhanced compatibility
• PCB pin type termination simplifies wiring configurations

Applications

• Utilised in electrical control panels for automated systems
• Ideal for sectors requiring reliable relay connections
• Employed in industrial machinery for circuit management
• Suitable for any project needing robust relay integration

How does the current rating affect its performance in practical scenarios?

A current rating of 15A allows it to manage substantial electrical loads efficiently, making it suitable for applications where reliable switching is essential, such as in control systems.

What type of mounting options are available?

It features a PCB mount design, allowing for straightforward installation on various circuit boards, thereby saving space and simplifying integration into existing systems.

Can it be used in high-frequency applications?

Given its specifications, it is primarily designed for standard relay applications. For high-frequency uses, verify compatibility with additional circuit specifications to ensure optimal performance.

What are the temperature limits for operating this component?

While specific temperature limits are not detailed, components like these typically operate effectively within ranges common to PCB applications, usually between -40°C to +85°C, depending on the specific relay in use.

Brand	Omron
Voltage	250V ac
For Use With	LY Series Relay
Accessory Type	Socket
Series	MKS
Number of Contacts	14
Termination Type	PCB Pin
Current Rating	15A
Mounting Type	PCB Mount
