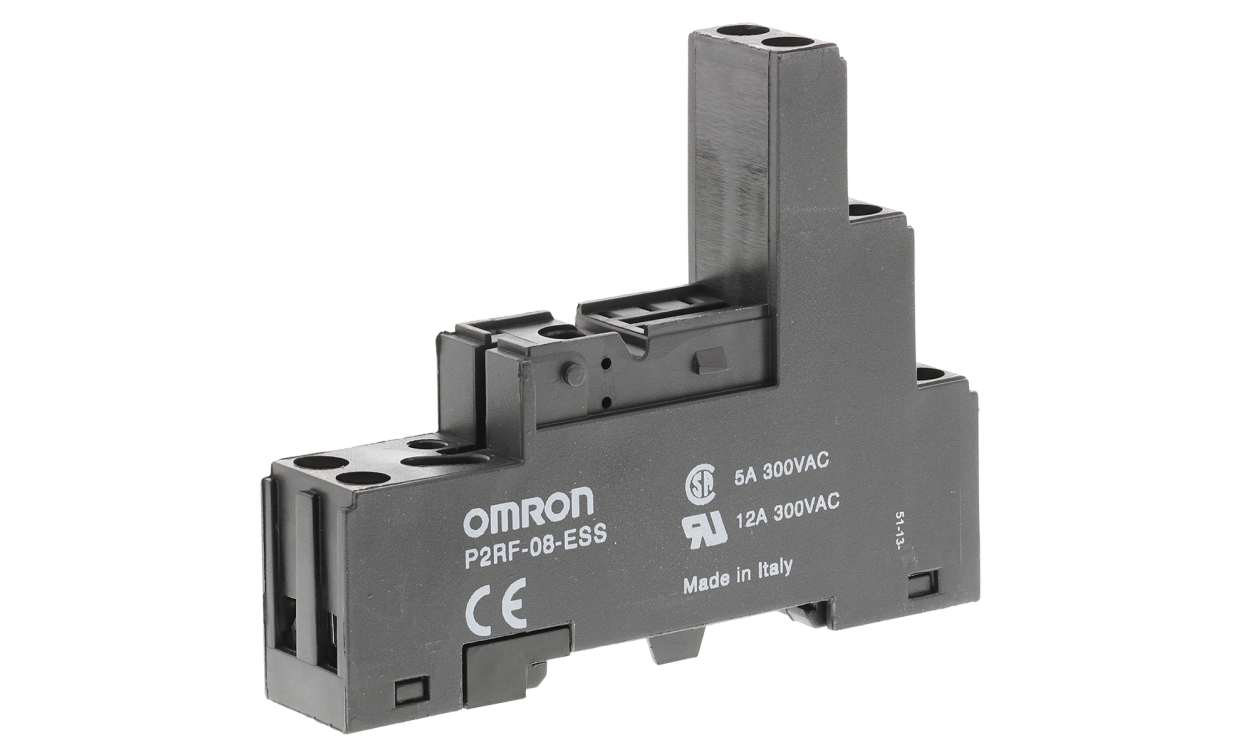

OMRON P2RF-08-ESS | DIN Rail Relay Socket | Screw Terminals, 250V ac, 12A

Name: OMRON P2RF-08-ESS | DIN Rail Relay Socket | Screw Terminals, 250V ac, 12A
Brand: OMRON
SKU: P2RF-08-ESS
Availability: OutOfStock

Part Number : P2RF-08-ESS

This DIN rail relay socket in the G2R series, OMRON part P2RF-08-ESS, comes with screw terminals, a 12A current rating and a 250V ac voltage rating. Compatible devices listed for P2RF-08-ESS: G2R Relay. The source description for P2RF-08-ESS also notes a 2-pole G2RS socket design and box-type screw terminals.

Mounting type: DIN Rail
Termination: Screw
Current rating: 12A
Voltage: 250V ac
Series: G2R
For use with: G2R Relay

Availability: in stock

Detailed Description
Specifications
Features
Downloads

P2RF- ESS Series

Omron P2RF-ESS series rise-up terminal sockets.

Double wiring available on all the terminals
Release lever enables easy replacement
Finger-protection: IP20
UL/CSA/TUV/Lloyd's certification
RoHS certified
Operating temperature: -25º to +70º
Socket accessories also available

OMRON Relay Socket, Rise-Up Terminals, 20 to 14AWG Stranded/Solid Wire Sizes - P2RF Series - P2RF-08E-SS

Give your relay a solid base with this socket from OMRON. It's a front-mounting device for the speedy plugging in of relays with mounting pins. A two-pole configuration with a 12A current rating and 300V AC voltage rating ensures it's compatible with high-power DPDT G2R relays. This makes it suitable for applications that control two circuits and for changing the direction of motors. The integrated clip on this socket means you can snap it onto any standard DIN rail, making it a piece to add to a control panel.

Features & Benefits

• Accepts solid and stranded wires with or without ferrules for wide compatibility
• Takes commonly used wires sized between 20 and 14AWG
• IP20 rating indicates the housing is finger-proof to keep you safe during installation

Applications

• Automotive industry
• Food processing
• Materials handling
• HVAC systems

What type of terminals does this relay socket have?

This relay socket has rise-up terminals. They use a box and screw design to lock in wires and ferrules so your circuit stays reliably connected, even around vibrating machinery.

Brand	Omron
Voltage	250V ac
For Use With	G2R Relay
Accessory Type	Socket
Series	G2R
Mounting Type	DIN Rail
Termination Type	Screw
Current Rating	12A

G2RS socket, 2-pole, DIN-rail/surface-mounting, screw (box type)

OMRON P2RF-08-ESS | DIN Rail Relay Socket | Screw Terminals, 250V ac, 12A
