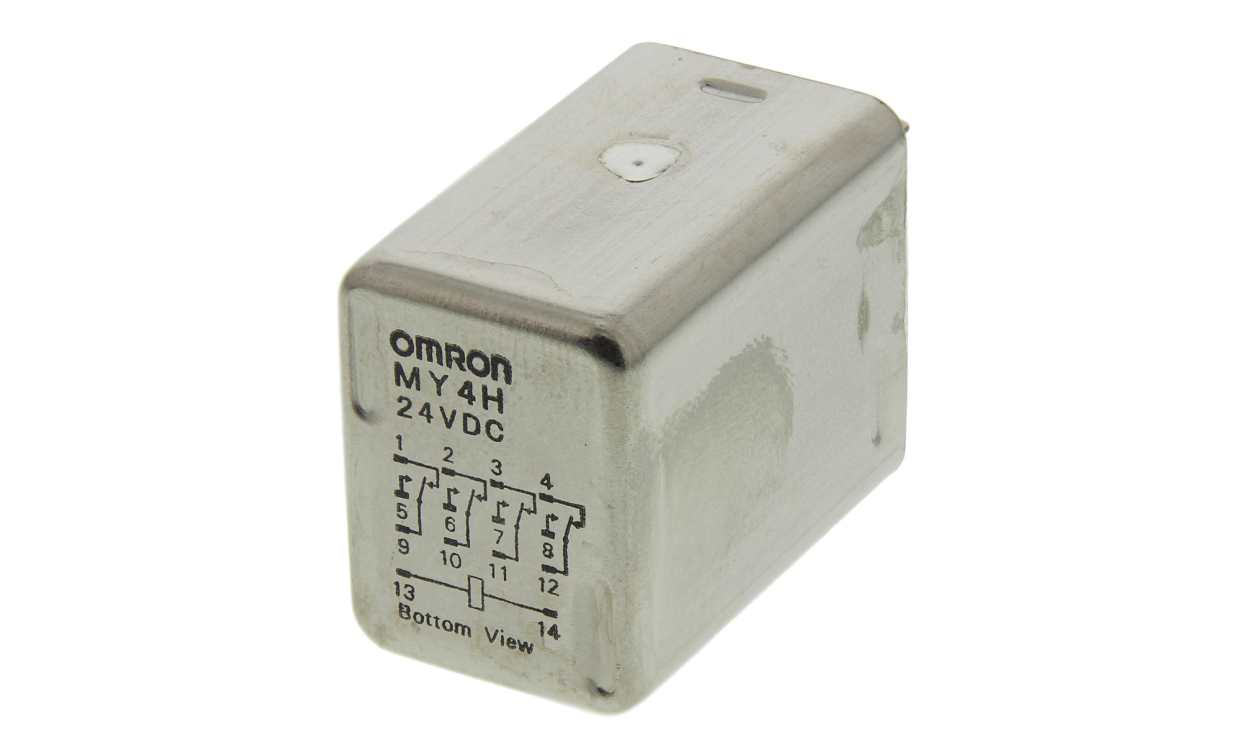

OMRON MY4H 24VDC | Hermetically Sealed Power Relay | 24 V DC Coil, 4PDT, 3 A
With a 24 V DC coil and 4PDT contacts, the OMRON MY4H 24VDC is a hermetically sealed power relay rated for 3 A switching current. It has a 14-pin plug-in base, with a coil resistance of 650 Ω (coil power 900 mW).
- Maximum switching power 330 VA AC / 72 W DC
- Gold-plated contacts
- Operating temperature -25 °C to +60 °C
- Dimensions 28.44 x 35.1 x 22.1 mm (L x H x D)
- Non-latching operation
- 4 poles (4PDT)
- Detailed Description
- Specifications
- Features
- Downloads

Omron MY4 Series Power Relay, 24V DC Coil Voltage, 4PDT Contact Configuration - MY4H DC24
Features & Benefits
• Four-pole design allows for multiple circuit control
• Panel mount design ensures easy installation in panels
• Plug-in terminal type simplifies maintenance and replacement
• Gold and silver contact materials provide superior switching performance
• Capable of handling up to 330 VA AC and 72 W DC load
Applications
• Suitable for control panels in industrial machinery
• Employed in HVAC equipment for effective regulation
• Ideal for various electrical control circuits and devices
What are the coil resistance specifications for effective operation?
How does the contact material enhance switch longevity?
What is the benefit of the panel mount design?
How does the relay perform under extreme temperatures?
| Brand | Omron |
| Series | MY4 |
| Coil Voltage | 24V dc |
| Contact Configuration | 4PDT |
| Mounting Type | Panel Mount |
| Switching Current | 3A |
| Number of Poles | 4 |
| Latching | No |
| Coil Resistance | 650Ω |
| Terminal Type | Plug In |
| Length | 28.44 mm (1.12 in) |
| Maximum Operating Temperature | +60 °C (140 °F) |
| Coil Power | 900mW |
| Height | 35.1 mm (1.38 in) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Depth | 22.1 mm (0.870 in) |
| Contact Material | Gold Plated |
| Maximum Switching Power AC | 330VA |
| Application | General Purpose |
| Maximum Switching Power DC | 72 W |
Relay, plug-in, 14-pin, 4PDT, 3 A, hermetically-sealed
