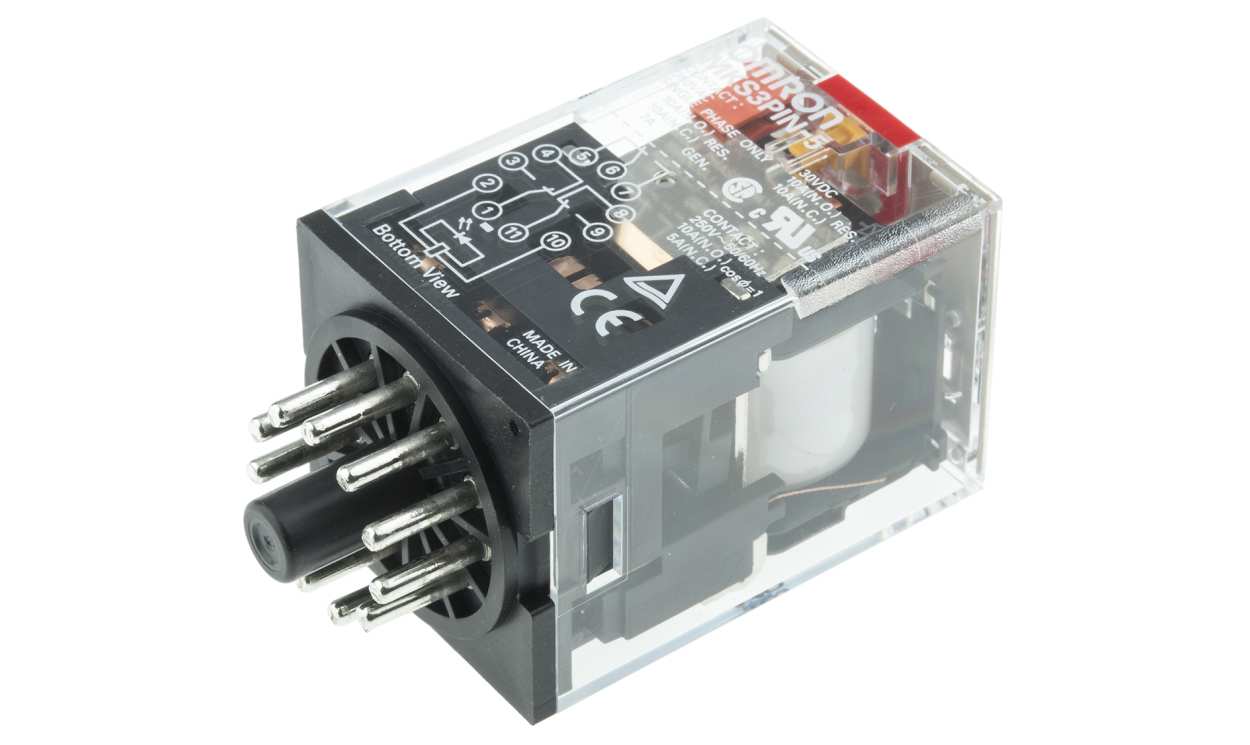

OMRON MKS3PIN-5 230VAC | Plug-In Power Relay | 230 V AC Coil, 3PDT, 10 A
Rated for 10 A switching current, the OMRON MKS3PIN-5 230VAC is a 3PDT plug-in power relay driven by a 230 V AC coil. Further listed values: plug-in terminals and a coil resistance of 4,250 Ω.
- Maximum switching voltage 250 V AC / 250 V DC
- Maximum switching power 2.5 kVA AC / 300 W DC
- Silver alloy contacts
- Operating temperature -40 °C to +60 °C
- Dimensions 34.5 x 53.3 x 34.5 mm (L x H x D)
- Non-latching operation
- Detailed Description
- Specifications
- Downloads
Omron MKS3 Series Relay, 3PDT Contact Configuration, 300W Maximum Switching Power (DC) - MKS3PIN5AC230
Features & Benefits
• 3PDT contact configuration enables control of multiple circuits
• Plug-in design simplifies installation and maintenance
• Maximum switching voltage of 250V enhances dependability
• Functions within temperatures ranging from -40 to +60°C
• RoHS compliant for environmentally friendly usage
Applications
• Ideal for general automation in industrial environments
• Employed in electrical control panels for system management
• Suitable for machinery requiring dependable switching
Can it handle high temperatures?
Will it work for both AC and DC applications?
Is it easy to install?
What is the contact configuration?
Can it support high switching voltages?
| Brand | Omron |
| Series | MKS3 |
| Coil Voltage | 230V ac |
| Contact Configuration | 3PDT |
| Mounting Type | Plug In |
| Switching Current | 10A |
| Number of Poles | 3 |
| Latching | No |
| Coil Resistance | 4250Ω |
| Terminal Type | Plug In |
| Length | 34.5 mm (1.36 in) |
| Maximum Operating Temperature | +60 °C (140 °F) |
| Height | 53.3 mm (2.10 in) |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Depth | 34.5 mm (1.36 in) |
| Contact Material | Silver Alloy |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 250V dc |
| Maximum Switching Power AC | 2.5 kVA |
| Maximum Switching Power DC | 300 W |
