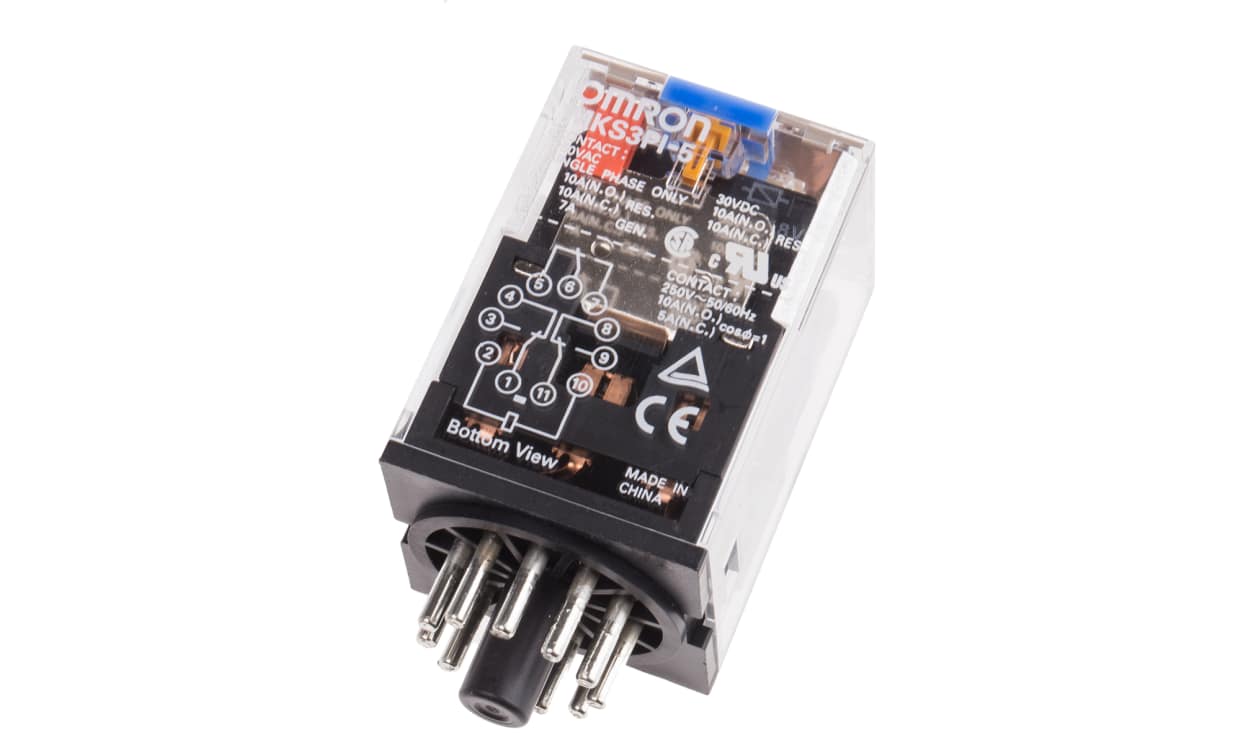

OMRON MKS3PI-5 48VDC | Plug-In Power Relay | 48 V DC Coil, 3PDT, 10 A
Rated for 10 A switching current, the OMRON MKS3PI-5 48VDC is a 3PDT plug-in power relay driven by a 48 V DC coil. Its specification lists plug-in terminals and a coil resistance of 1,710 Ω (coil power 1.4 W).
- Maximum switching voltage 250 V AC / 250 V DC
- Silver alloy contacts
- Operating temperature -40 °C to +60 °C
- Electrical life 100,000 operations, mechanical life 5,000,000 operations
- Standards: CSA, UL
- Non-latching operation
- Detailed Description
- Specifications
Omron MKS Series Power Relay, 3PDT Contact Configuration, 48V DC Coil Voltage - MKS3PI5DC48
Features & Benefits
• Features a 3PDT contact configuration for versatile switching capabilities
• Plug-in design simplifies installation and maintenance
• Maximum switching current of 10A supports a variety of devices
• Capable of withstanding voltages up to 250V AC/DC
• Constructed with silver alloy contacts for improved durability
Applications
• Suitable for electrical control panels and monitoring systems
• Employed in general-purpose switching tasks across various sectors
• Used in relay sequence circuits for operational checks
• Ideal for requiring dependable electrical isolation
What is the maximum operating temperature for this device?
How does the plug-in feature benefit installation?
Can it handle both AC and DC loads?
Is there a mechanical indicator for operation status?
| Brand | Omron |
| Series | MKS |
| Coil Voltage | 48V dc |
| Contact Configuration | 3PDT |
| Mounting Type | Plug In |
| Switching Current | 10A |
| Number of Poles | 3 |
| Latching | No |
| Coil Resistance | 1710Ω |
| Terminal Type | Plug In |
| Length | 52.5 mm (2.07 in) |
| Maximum Operating Temperature | +60 °C (140 °F) |
| Coil Power | 1.4W |
| Height | 34.5 mm (1.36 in) |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Contact Material | Silver Alloy |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 250V dc |
| Life | 100000 (Electrical) Operations, 5000000 (Mechanical) Operations |
| Standards Met | CSA, UL |
