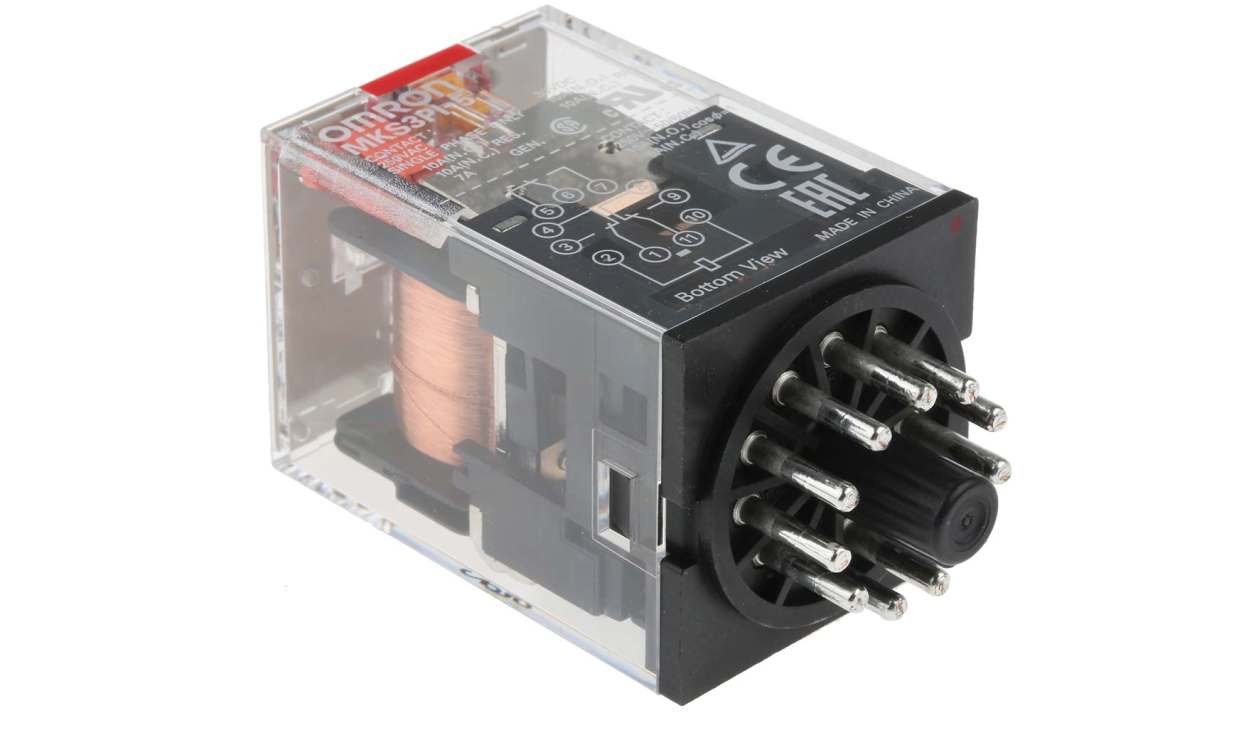

Name: Omron MKS3PI-5 230VAC, Plug In Power Relay, 230V ac Coil, 10A Switching Current, 3PDT
Brand: OMRON
SKU: MKS3PI-5 230VAC
Availability: OutOfStock

Omron MKS3PI-5 230VAC, Plug In Power Relay, 230V ac Coil, 10A Switching Current, 3PDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron MKS3PI-5 230VAC, Plug In Power Relay, 230V ac Coil, 10A Switching Current, 3PDT

Part Number : MKS3PI-5 230VAC

Availability: Sold out

Detailed Description
Specifications

OMRON Power Relay, 4250Ω Coil Resistance, 2.5kVA AC Maximum Switching Power - MKS Series - MKS3PI-5 AC230

Use this power relay from OMRON to take effective control over automated tasks. It uses an electromagnet to switch power on and off when managing jobs such as door security and UPS systems. The device generates a 10A switching current, so it's suitable for low-power applications. A 3-pole structure means you can connect multiple circuits at once, which boosts productivity while streamlining your setup. You can rely on a rapid maximum response time of 20ms to get the job done in a jiffy.

Features & Benefits

• Plug-in termination for fast and tool-free installation with compatible sockets
• Operates reliably in temperatures between -40°C and +60°C
• Transparent housing lets you make quick visual checks
• Weighs just 90g to keep strain minimal
• Mechanical lifespan of at least 5 million operations ensures long-term performance

Applications

• Industrial process control
• Power utilities
• Packaging plants

What are the contacts made from?

The contacts in this assembly are made from silver alloy for high conductivity and resistance to corrosion.

Can I use this product in humid conditions?

Yes. This relay functions in ambient humidity up to 85%, so it's suitable for humid and damp conditions.

Brand	Omron
Coil Voltage	230V ac
Contact Configuration	3PDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	3
Series	MKS
Latching	No
Terminal Type	Plug In
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	250V dc
Maximum Switching Current DC	10 A
Maximum Switching Current AC	10 A
Length	34.5mm
Coil Resistance	4250Ω
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-40°C
Standards Met	cURus
Depth	34.5mm
Height	53.3mm
