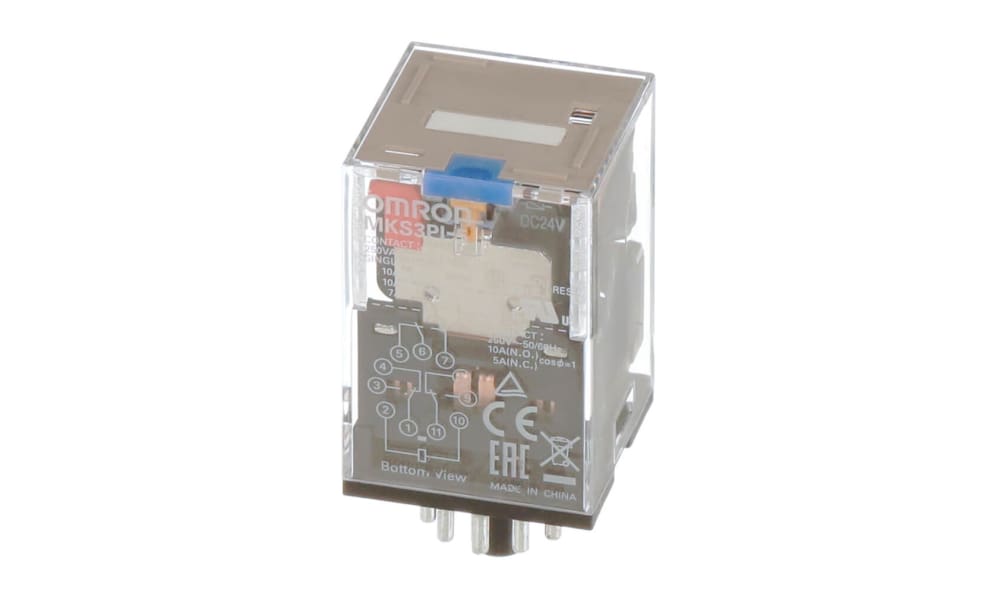

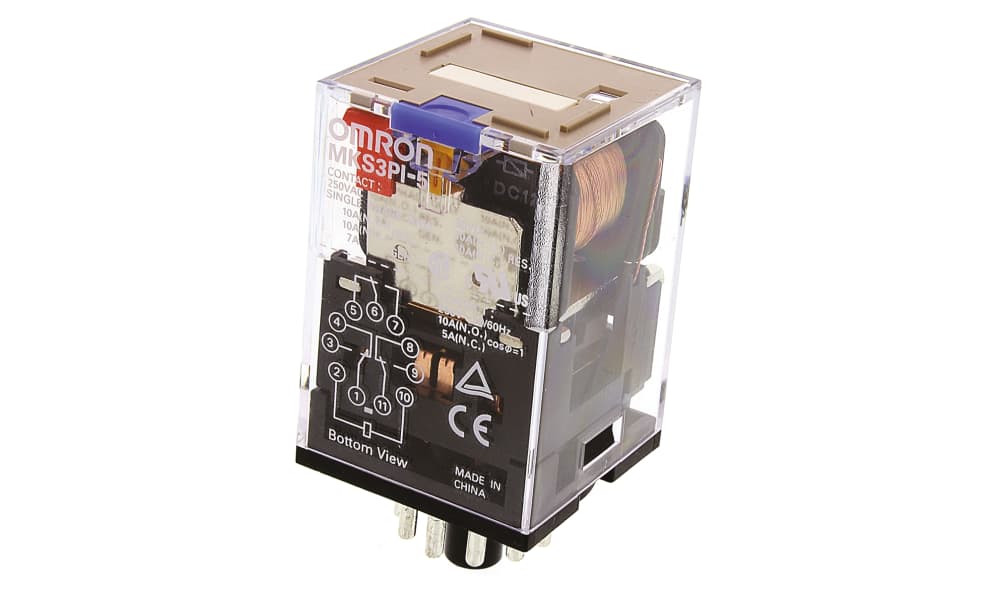

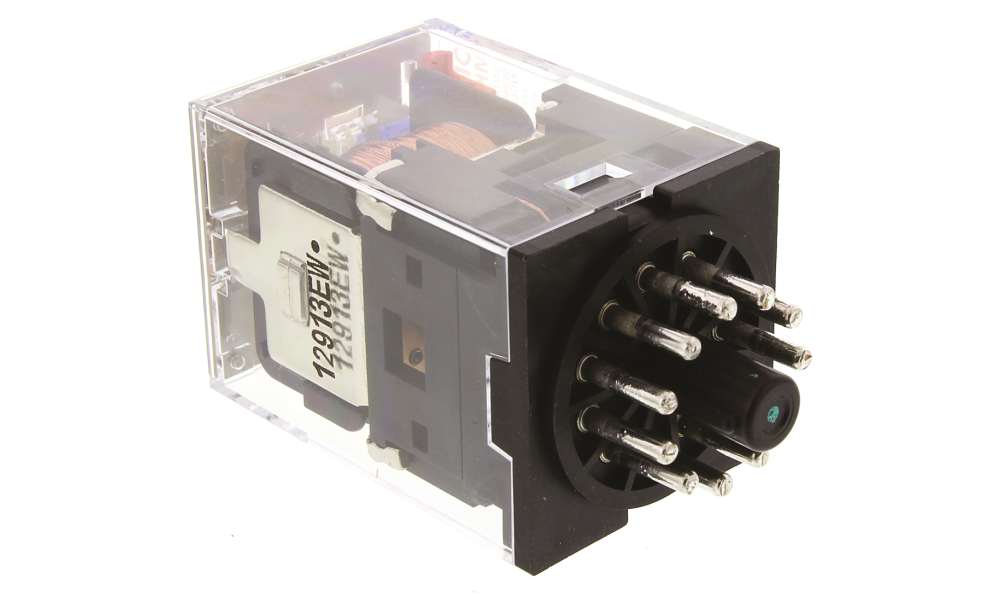

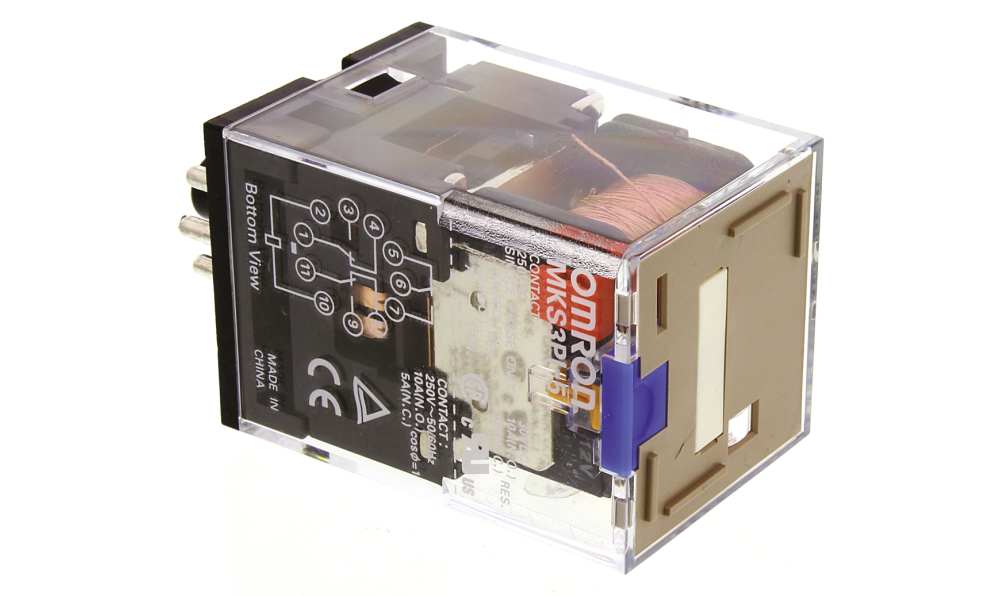

Name: Omron MKS3PI-5 12VDC, PCB Mount Relay, 12V dc Coil, 10A Switching Current, 3PDT
Brand: OMRON
SKU: MKS3PI-5 12VDC
Availability: OutOfStock

Omron MKS3PI-5 12VDC, PCB Mount Relay, 12V dc Coil, 10A Switching Current, 3PDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron MKS3PI-5 12VDC, PCB Mount Relay, 12V dc Coil, 10A Switching Current, 3PDT

Part Number : MKS3PI-5 12VDC

Availability: Sold out

Detailed Description
Specifications

General Purpose Relays, MKS Series

All units have a Mechanical indicator and lockable test button (with nameplate)
Units with a "-5" in the Manufacturer Part Number have non-standard connections, refer to datasheet
Contact rating: 10A at 30Vdc/250Vac
Contact material: AgSnIn
Operating temperature: -40 → +60 °C

Note

When Relays are mounted on the PF083A-E or PF113A-E, the maximum carrying current is 9 A

Approvals

UL, TUV (IEC), CSA

Omron MKS Series Relay, 12V DC Coil Voltage, 10A Switching Current - MKS3PI-5

This relay is a versatile component designed for a wide range of applications. As a 3PDT PCB mount relay, it operates at a coil voltage of 12V DC and provides efficient switching capabilities. With dimensions of 34.5mm x 34.5mm x 53.3mm, it is compact yet powerful, enabling effective solutions for both automation and electronics sectors.

Features & Benefits

• 10A switching relay for robust performance in varying applications
• Plug-in terminal type for easy installation and replacement
• Maximum switching voltage of 250V AC and 250V DC ensures versatility
• AgSnIn contact material enhances conductivity and durability
• Wide operating temperature range of -40°C to +60°C for reliability

Applications

• Ideal for controlling motors, lights, and other equipment
• Suitable for automation and sequence control in machinery
• Utilised in general-purpose across various industries
• Effective in low-voltage circuit such as lighting systems

What is the maximum power consumption for this relay?

The relay has a maximum power consumption of approximately 2.3 VA at 60 Hz, ensuring efficient operation in low-power applications.

How does the contact material benefit the relay's performance?

The AgSnIn contact material provides excellent conductivity and minimises contact wear, resulting in enhanced longevity and reliability in switching operations.

Can it handle inductive loads effectively?

Yes, the device is designed to manage both resistive and inductive loads, accommodating different power demands in industrial and commercial settings.

What is the significance of the latching relay alternative feature?

This feature allows for different operational modes, making it suitable for applications where maintaining the last state of the relay is crucial, saving energy and reducing circuit complexity.

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	3PDT
Mounting Type	PCB Mount
Switching Current	10A
Number of Poles	3
Series	MKS
Latching	No
Terminal Type	Plug In
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	250V dc
Length	34.5mm
Coil Resistance	107Ω
Standards Met	IEC
Depth	34.5mm
Height	53.3mm
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-40°C
Contact Material	Silver Alloy
Maximum Switching Power AC	2.5 kVA
