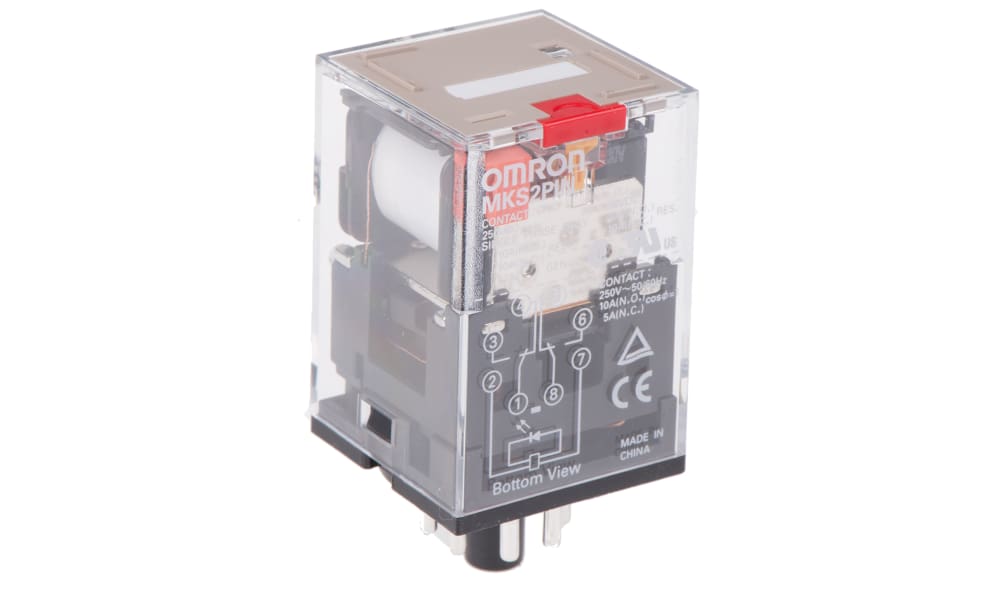

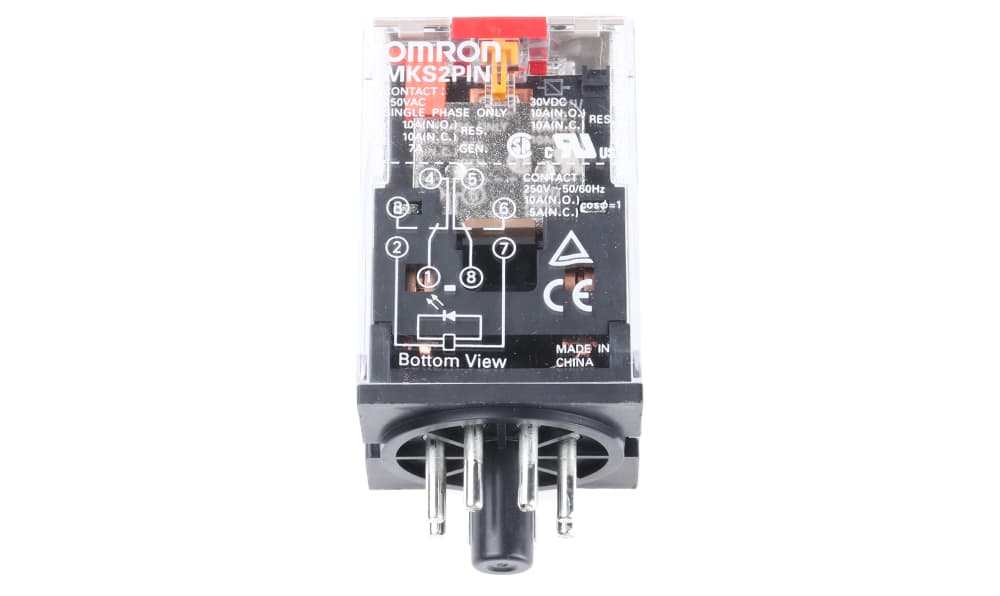

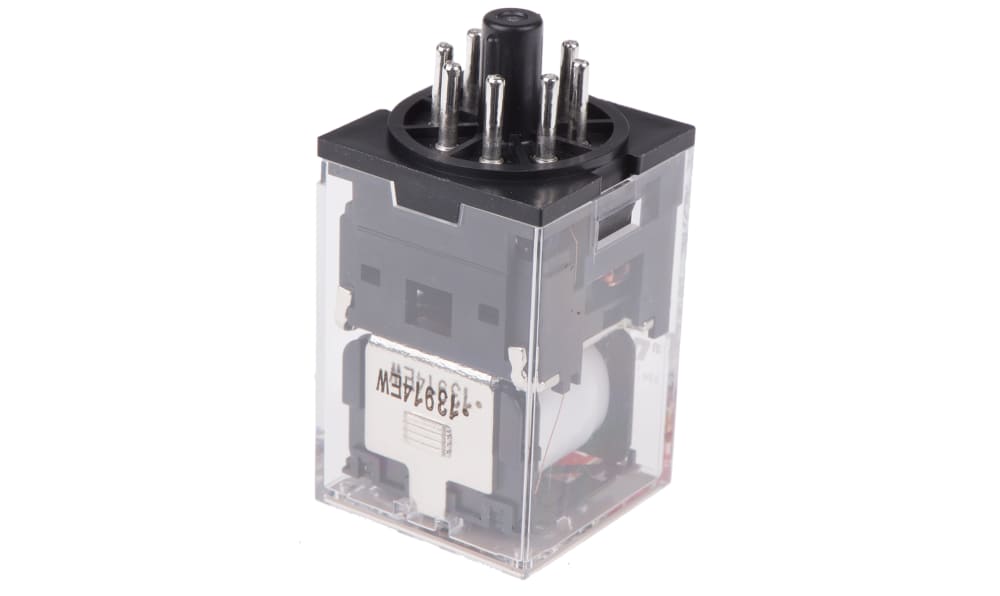

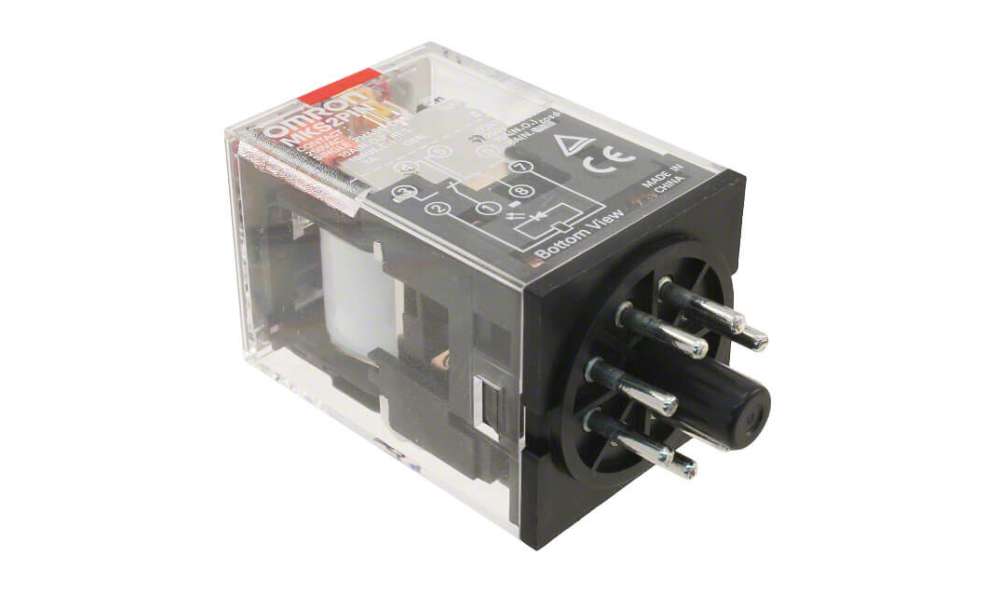

OMRON MKS2PIN 230VAC | Plug-In Power Relay | 230 V AC Coil, DPDT, 10 A
This OMRON plug-in power relay, part number MKS2PIN 230VAC, pairs a 230 V AC coil with DPDT contacts switching 10 A. Listed details include plug-in terminals and a coil resistance of 4,250 Ω.
- Maximum switching voltage 250 V AC / 250 V DC
- Maximum switching power 300 W DC
- Silver alloy contacts
- Operating temperature -25 °C to +60 °C
- Standards: CSA, UL
- Dimensions 34.5 x 53.3 x 34.5 mm (L x H x D)
- Detailed Description
- Specifications
- Downloads
Omron MKS Series Power Relay, DPDT Contact Configuration, 230V AC Coil Voltage - MKS2PIN AC230
Features & Benefits
• Plug-in type facilitates easy installation and replacement
• DPDT configuration enhances circuit control options
• Silver alloy contacts ensure durability
• Capable of handling switching currents up to 10A
• Non-latching design simplifies circuit implementation
Applications
• Ideal for automation systems needing circuit operation checks
• Utilised in alarm systems where dependable switching is crucial
• Employed in HVAC systems for effective machinery control
• Suitable for general lighting control in commercial buildings
What is the process for installing this device effectively?
How does the relay handle high current loads?
What maintenance procedures should be followed for optimal performance?
Will this relay fit in standard mounting sockets?
| Brand | Omron |
| Series | MKS |
| Coil Voltage | 230V ac |
| Contact Configuration | DPDT |
| Mounting Type | Plug In |
| Switching Current | 10A |
| Number of Poles | 2 |
| Latching | No |
| Coil Resistance | 4250Ω |
| Terminal Type | Plug In |
| Length | 34.5 mm (1.36 in) |
| Maximum Operating Temperature | +60 °C (140 °F) |
| Height | 53.3 mm (2.10 in) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Depth | 34.5 mm (1.36 in) |
| Contact Material | Silver Alloy |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 250V dc |
| Standards Met | CSA, UL |
| Maximum Switching Power DC | 300 W |
