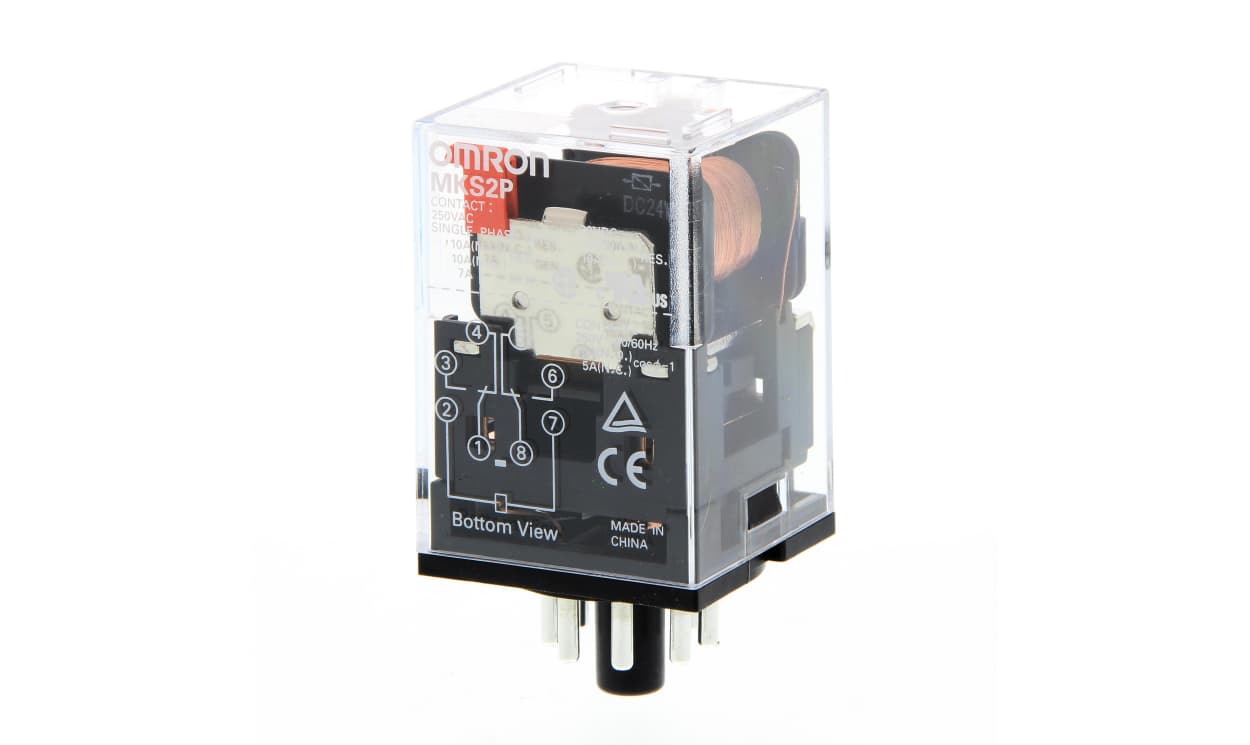

OMRON MKS2P 24VDC | Power Relay | 24 V DC Coil, DPDT, 10 A
Rated for 10 A switching current, the OMRON MKS2P 24VDC is a DPDT power relay driven by a 24 V DC coil. Its specification lists plug-in terminals and a coil resistance of 430 Ω (coil power 1.4 W).
- Maximum switching voltage 250 V AC / 250 V DC
- Maximum switching current 10 A AC / 10 A DC
- Maximum switching power 2.5 kVA AC
- Silver alloy contacts
- Operating temperature -40 °C to +60 °C
- 2 poles (DPDT)
- Detailed Description
- Specifications
- Downloads
Omron MK-S Series Non-Latching Relay, 24V DC Coil Voltage, 10A Switching Current - MKS2P 24VDC
Features & Benefits
• Compact plug-in design simplifies installation and replacement
• Accommodates a maximum switching voltage of 250V across both AC and DC
• Dual pole, dual throw configuration enhances circuit control options
• Allows for a maximum switching power of 2500VA
• Built with AgSnIn contact material for improved electrical conductivity
Applications
• Ideal for implementing safety protocols in industrial machinery
• Effective in control panels for HVAC systems
• Utilised in electronic devices needing robust switching capabilities
What is the maximum current rating for this relay?
Can this relay operate in extreme temperatures?
How does the DPDT configuration improve flexibility in circuit design?
What is the advantage of using AgSnIn contact material?
Is this relay compatible with both AC and DC applications?
| Brand | Omron |
| Series | MK-S |
| Coil Voltage | 24V dc |
| Contact Configuration | DPDT |
| Switching Current | 10A |
| Number of Poles | 2 |
| Coil Resistance | 430 Ω |
| Terminal Type | Plug In |
| Maximum Operating Temperature | +60 °C (140 °F) |
| Coil Power | 1.4W |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Contact Material | Silver Alloy |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 250V dc |
| Maximum Switching Power AC | 2.5 kVA |
| Maximum Switching Current DC | 10 A |
| Maximum Switching Current AC | 10 A |
