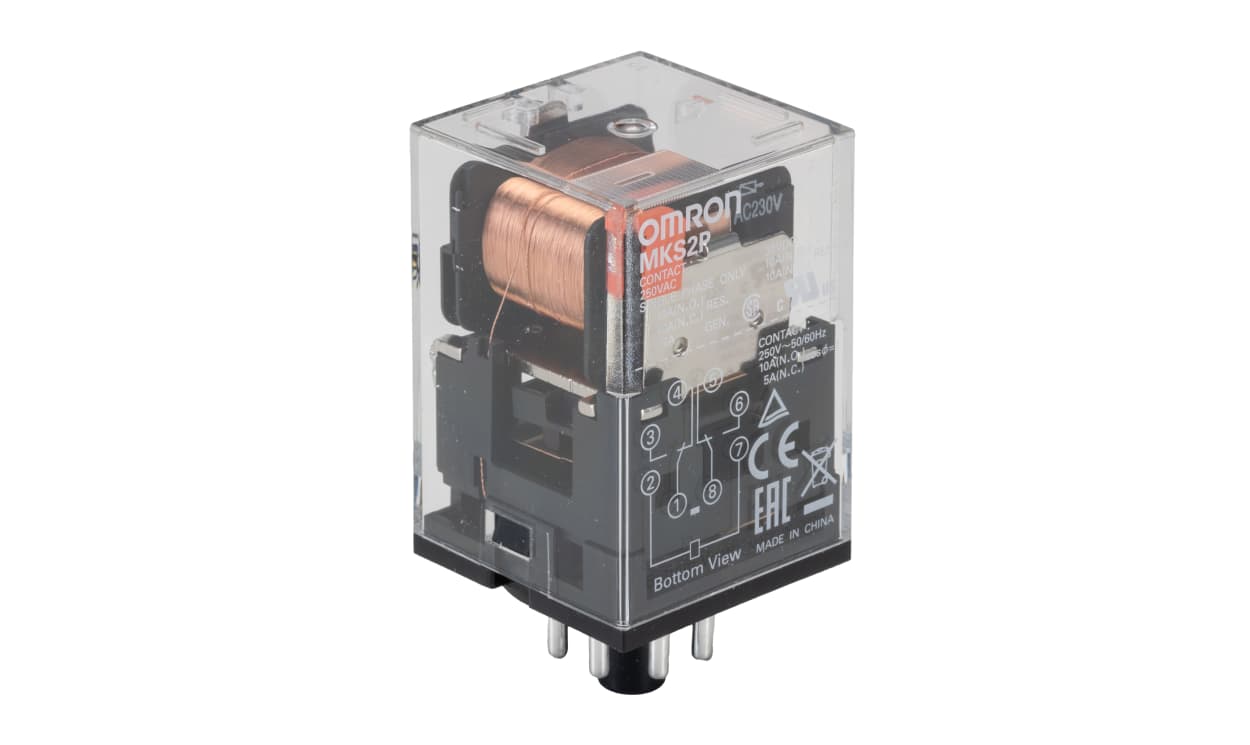

Name: Omron MKS2P 230VAC, Plug In Non-Latching Relay, 230V ac Coil, 10A Switching Current, DPDT
Brand: OMRON
SKU: MKS2P 230VAC
Availability: OutOfStock

Omron MKS2P 230VAC, Plug In Non-Latching Relay, 230V ac Coil, 10A Switching Current, DPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron MKS2P 230VAC, Plug In Non-Latching Relay, 230V ac Coil, 10A Switching Current, DPDT

Part Number : MKS2P 230VAC

Availability: Sold out

Detailed Description
Specifications

Omron Non-Latching Relay, 2 Poles, Plug-In Socket Mounting - MKS2P 230VAC

This MK series product features a maximum switching power of 2500 VA, designed to manage high-demand applications efficiently. It operates with a maximum switching current of 10 A, ensuring robust performance across a wide temperature range from -40°C to +60°C. The relay is engineered for reliable operation under various conditions, making it suitable for diverse automation technology applications.

Features & Benefits

• Built-in mechanical indicator confirms operational status
• Supports up to 10 A switching current for efficiency
• Plug-in design simplifies installation and maintenance
• RoHS compliant materials ensure environmental safety
• UL and IEC certified for dependable performance
• Suitable for various applications in automation technology

Applications

• Utilised in relay sequence circuits for operation checks
• Ideal for automation systems requiring consistent electrical control
• Used in lighting control systems for enhanced automation
• Employed in process control for precise switching operations

How is the product's durability assessed?

It can withstand 100,000 operations under rated load.

Can it be used in high voltage applications?

Yes, it supports up to 250 V AC switching voltage.

Is it suitable for both AC and DC applications?

The relay is primarily designed for AC operation.

Brand	Omron
Coil Voltage	230V ac
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	2
Series	MK-S
Terminal Type	Plug In
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	250V dc
Maximum Switching Current DC	10 A
Maximum Switching Current AC	10 A
Coil Resistance	4250 Ω
Standards Met	cURus
Contact Material	Silver Alloy
Maximum Operating Temperature	'+60°C
Minimum Operating Temperature	-40°C
Maximum Switching Power DC	150 W, 300 W
Maximum Switching Power AC	2.5 kVA
