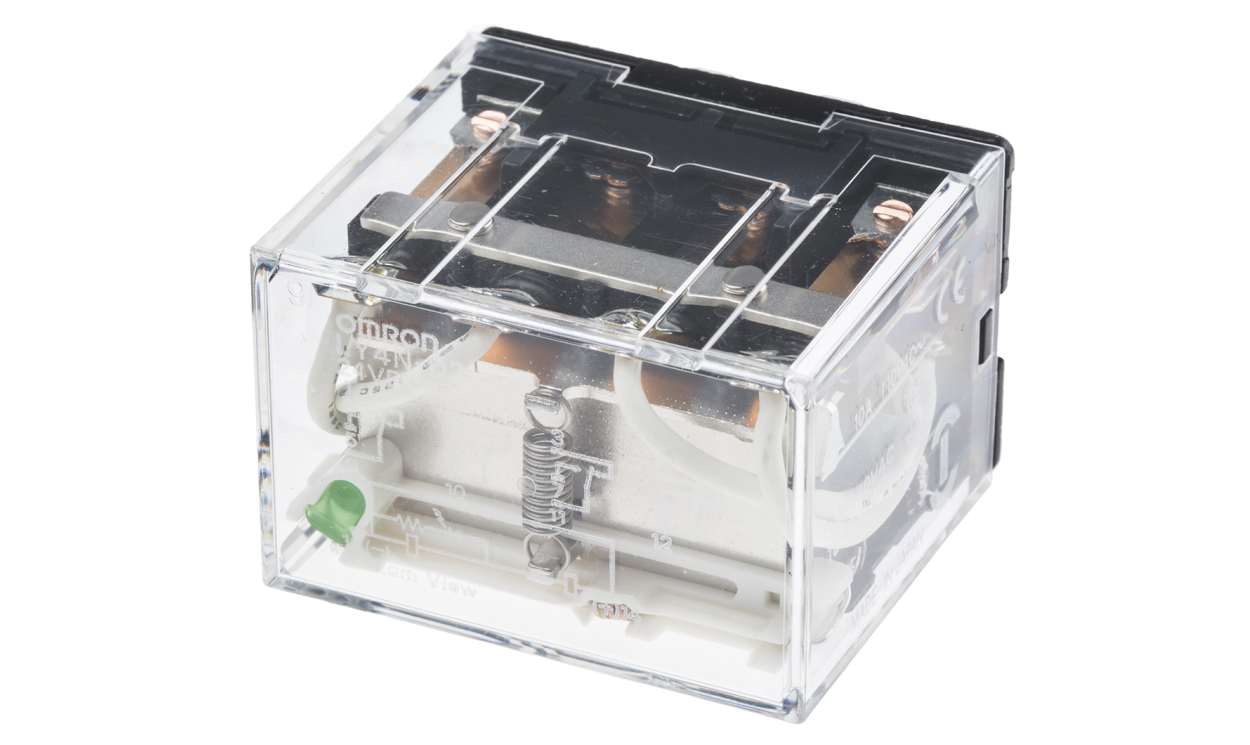

OMRON LY4N-D2 24VDC | Plug-In Power Relay | 24 V DC Coil, 4PDT, 10 A

Name: OMRON LY4N-D2 24VDC | Plug-In Power Relay | 24 V DC Coil, 4PDT, 10 A
Brand: OMRON
SKU: LY4N-D2 24VDC
Availability: OutOfStock

Part Number : LY4N-D2 24VDC

Rated for 10 A switching current, the OMRON LY4N-D2 24VDC is a 4PDT plug-in power relay driven by a 24 V DC coil. Features include an LED indicator and a coil suppressor, on a 14-pin plug-in base; it has a coil resistance of 350 Ω (coil power 1.5 W).

Maximum switching voltage 250 V AC / 125 V DC
Silver alloy contacts
Electrical life 200,000 operations, mechanical life 100,000,000 operations
Standards: CE, CSA
Dimensions 41.5 x 28 x 36 mm (L x H x D)
Non-latching operation

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron LY4N Series Power Relay, 4PDT Contact, 24V DC Coil Voltage - LY4N-D2 DC24

This power relay offers dependable switching with a coil voltage of 24V DC and a plug-in connection method. It operates with a contact configuration of 4PDT and measures 41.5mm in length, 36mm in depth, and 28mm in height, ensuring compact yet effective performance.

Features & Benefits

• Compatible with high voltage up to 250V AC
• 10A switching current enhances control solutions
• Silver alloy contacts ensure strong connections
• Mechanical life rated for 100 million operations
• Isolation coil to contact rated at 2kV AC

Applications

• Used for power control in machinery
• Utilised in automation systems for signal switching
• Employed for electrical load management in panels
• Suitable for relay control in electrical installations

Is it suitable for outdoor installations?

No, it is designed for indoor use only.

Will it require additional components for operation?

Typically, it needs a suitable socket for installation.

Can it function in extreme temperatures?

It operates optimally between -25°C and +55°C.

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	4PDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	4
Latching	No
Series	LY4N
Terminal Type	PCB Pin
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Length	41.5mm
Coil Resistance	350Ω
Coil Power	1.5W
Height	28mm
Contact Material	Silver Alloy
Standards Met	CE, CSA
Life	100000000 (Mechanical) Operations, 200000 (Electrical) Operations
Depth	36mm
Minimum Operating Temperature	-25°C
